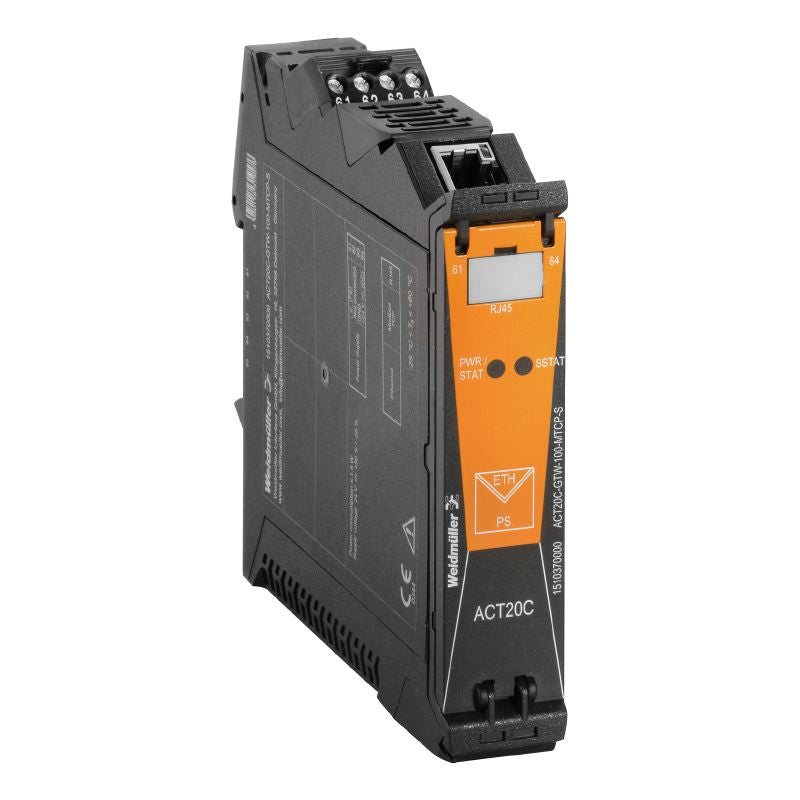

1510370000 - Modbus TCP Gateway for ACT20C Devices, Ethernet Connection

1510370000 - Modbus TCP Gateway for ACT20C Devices, Ethernet Connection

SKU: 1510370000   Download PDF

Select a Variant:
  • 1510370000 - Modbus TCP Gateway for ACT20C Devices, Ethernet Connection
Qty:
Now $396.55   Web pricing policy
BEFORE   $0.00 Now $396.55 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the ACT20C-GTW-100-MTCP-S, a reliable Modbus TCP slave compliant with IEC 61158 standards This versatile gateway seamlessly connects ACT20C devices to Ethernet networks, enabling efficient diagnostic processes, configuration management, and real-time status monitoring.

Features and Benefits:

    •RJ45 port for Ethernet TCP/IP.

    •Jack socket for direct communication via a CBX200 USB adapter.

    •Configuration compatible with standard FDT/DTM.

    •Supports station management with 'Plug & Produce' and 'Hot Swapping'.

    •Operational status and error indicators via a front panel LED according to NE44, NE107.

Specifications:

 Order No. 1510370000
 GTIN (EAN) 4050118319606

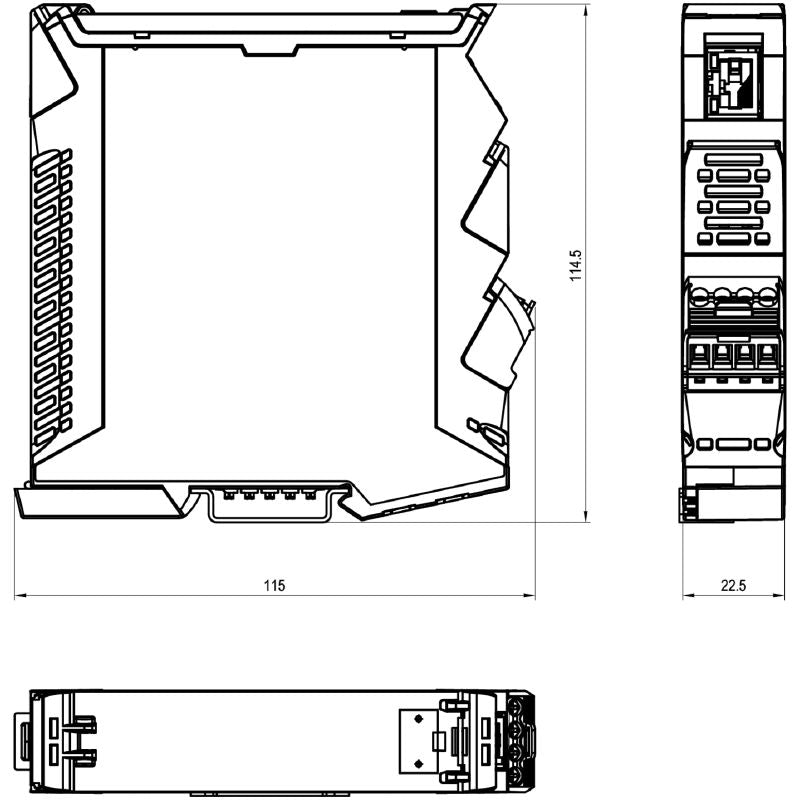

 Depth 113.6 mm
 Height 117.2 mm
 Width 22.5 mm
 Storage temperature -40 °C...85 °C
 Operating temperature -25 °C...60 °C
 Humidity 5...95 %, no condensation
 MTTF 160 a
 Nominal power consumption 3 VA
 Power consumption, max. 1.5 W
 Protection degree IP20
 Supply voltage 18.0 … 31.2 V DC
 Type of connection Screw connection
 Tightening torque, min. 0.5 Nm
 Tightening torque, max. 3.5 Nm
 Clamping range, rated connection 1.5 mm²
 Wire connection cross section AWG, min. AWG 30
 Wire connection cross section AWG, max. AWG 14
