7760054176 - RoHS Compliant Device, 89mm Depth, 100mm Height, Analog Output

Description:

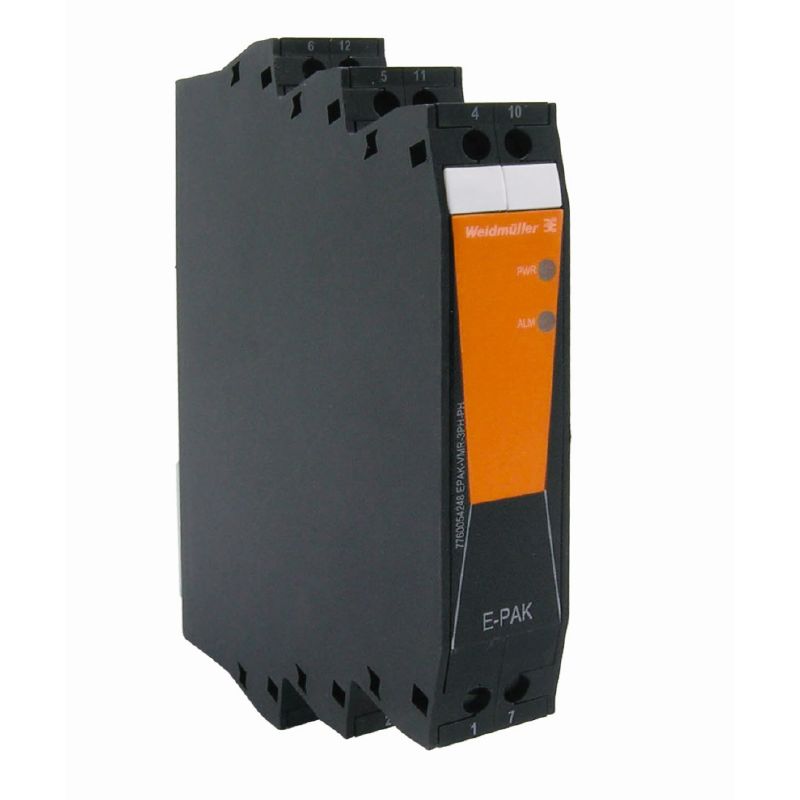

Introducing the EPAK-CI-VO, a versatile device that meets RoHS compliance and adheres to multiple standards With dimensions of 89 mm in depth, 100 mm in height, and a width of 175 mm, this lightweight unit weighs just 80 g The operational temperature range is impressive, functioning effectively from -20 °C to 60 °C, and it can be stored in environments ranging from -40 °C to 85 °C Designed to meet the requirements of IEC 61508, it boasts a SIL probability of failure.

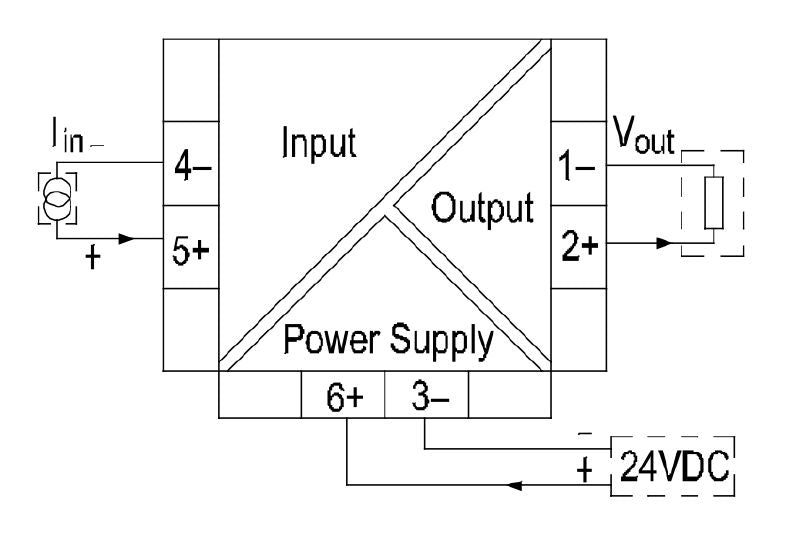

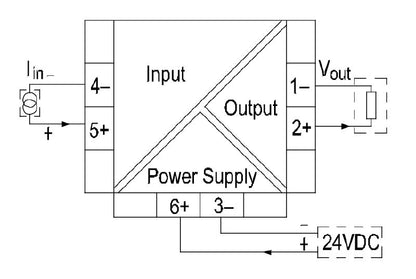

Input specifications include a current range of 4-20 mA and a maximum input resistance of 100 Ω with a single input channel On the output side, it features a load impedance voltage of at least 10 kΩ, one analogue output with a 0-10 V voltage range, and a rated switching current of 01 A In terms of performance, the device achieves an accuracy of 015% of FSR and a nominal power consumption of 17 VA, operating on a supply voltage between 20 and 30 V DC.

With an IP20 protection rating, this unit is built to endure while providing reliable functionality.

Features and Benefits:

•RoHS Compliant.

•IP20 protection degree.

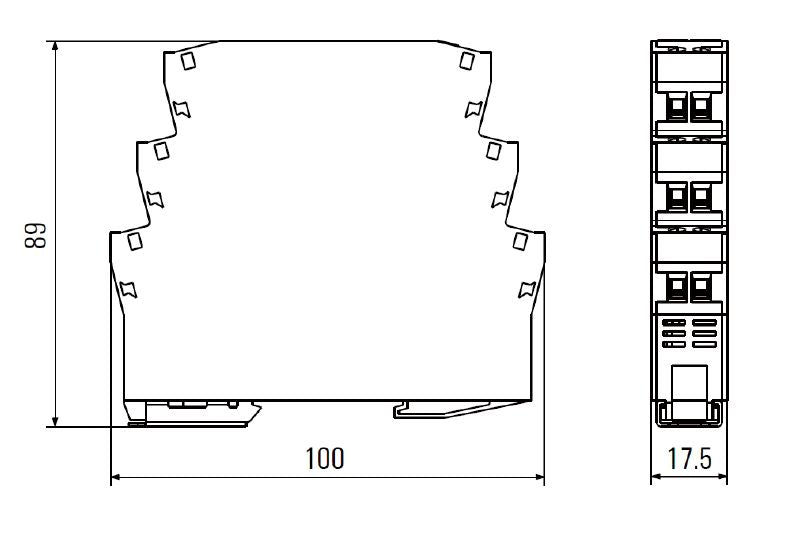

•Compact design with dimensions of 89 mm depth, 100 mm height, and 17.5 mm width.

•Accurate with a tolerance of 0.15%.

•Minimal power consumption.

•Galvanic isolation between input, output, and supply.
