2456120000 - High Current EX Signal Isolator with Relay & Opto Module

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the ACT20X-SDI-HDO-H-P, a reliable EX signal isolating converter designed to enhance safety and performance This device features a relay input for secure connections and utilizes an opto module for output, allowing it to manage high current efficiently in a single-channel setup With a robust operational range, it functions well in various temperatures, from -20 °C to 60 °C during use and up to 85 °C for storage.

Its versatile mounting options allow for both horizontal and vertical installation, and it meets RoHS compliance standards for environmental safety.

Features and Benefits:

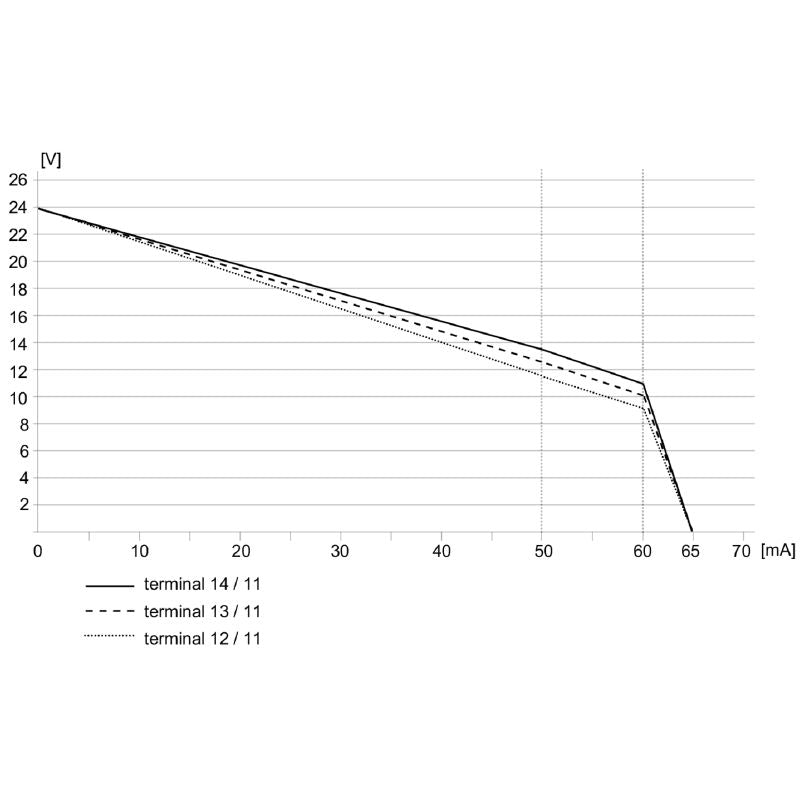

•Two output current variants available: 35 mA or 60 mA.

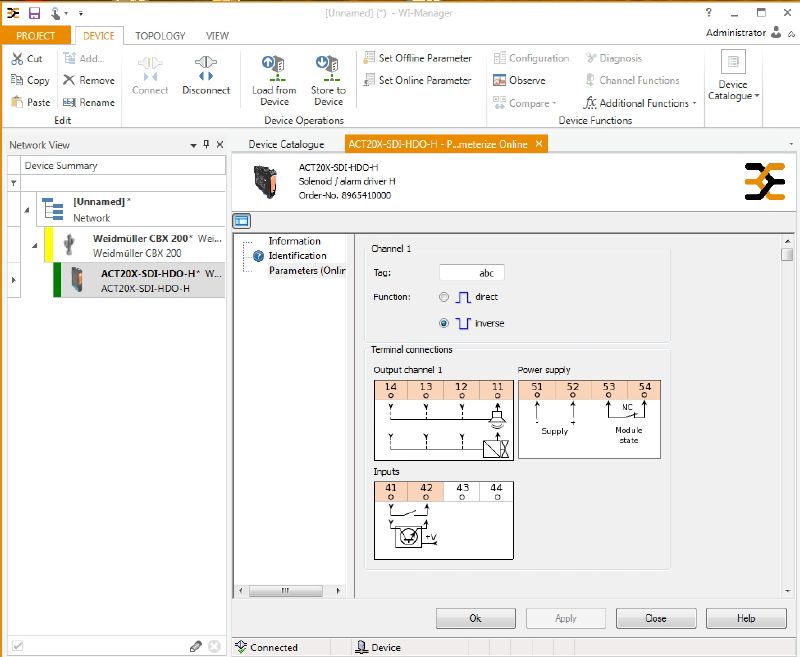

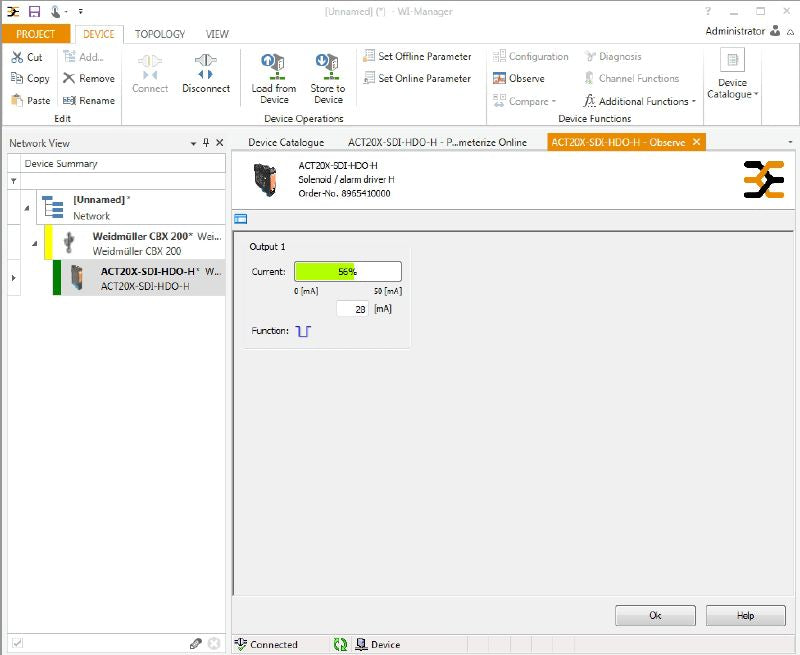

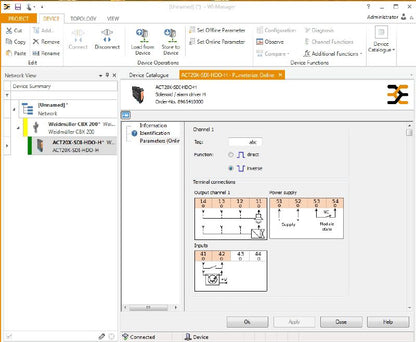

•Configuration and diagnosis feasible using FDT/DTM software.

•Option for direct or inverted function for each channel and adjustable output current for hazardous areas.

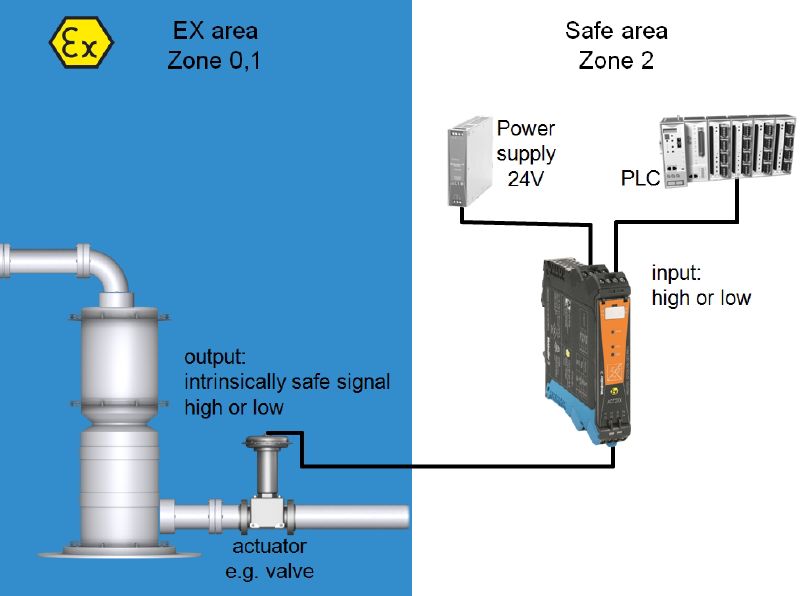

•Capable of receiving signals from multiple zones including Zone 0, 1, 2, 20, 21, and 22.

•Extended self-diagnostics monitoring errors via individual status relay.

•LED indicators for operational status and fault notifications.

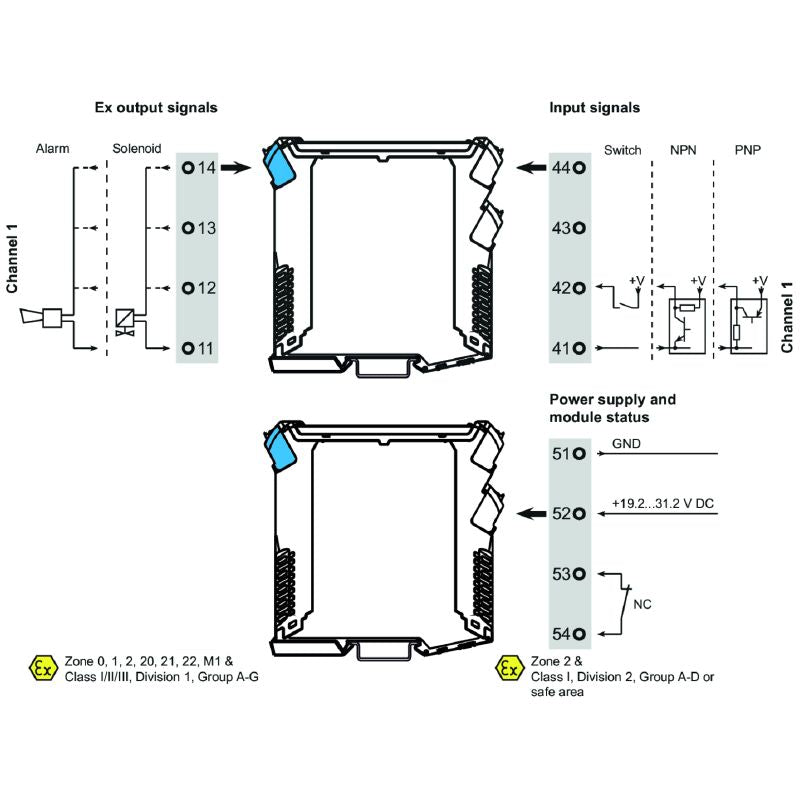

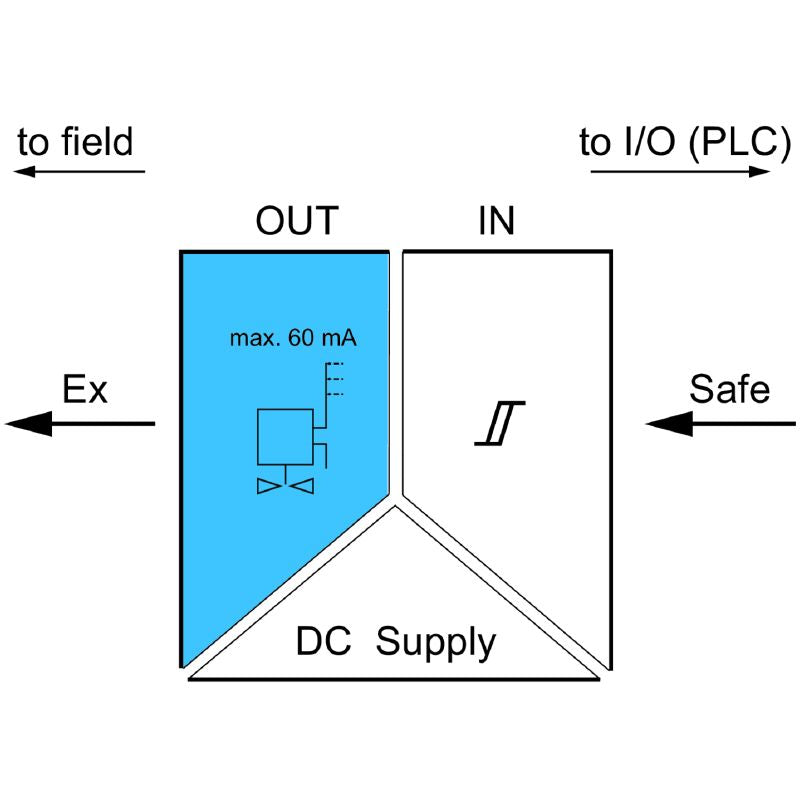

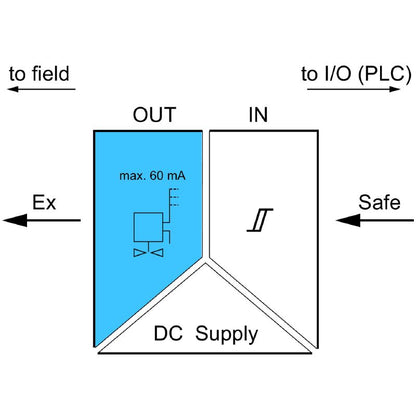

•Galvanic isolation provided between input, output, and power supply.

Specifications:
