1375470000 - Galvanic Isolation DC Converter with 2 Outputs

1375470000 - Galvanic Isolation DC Converter with 2 Outputs

SKU: 1375470000   Download PDF

Select a Variant:
  • 1375470000 - Galvanic Isolation DC Converter with 2 Outputs
Qty:
Now $323.45   Web pricing policy
BEFORE   $0.00 Now $323.45 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

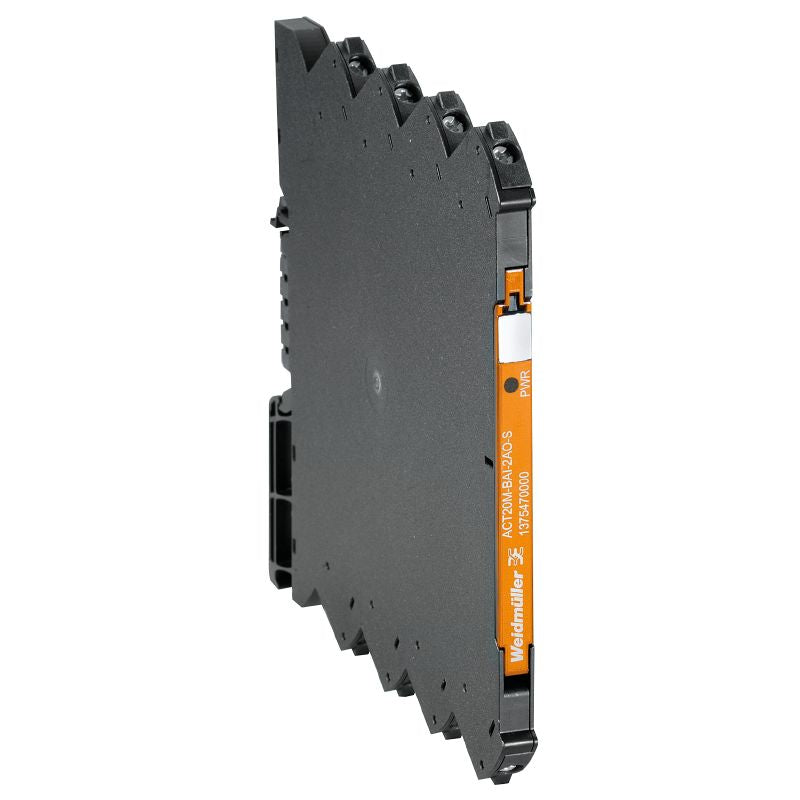

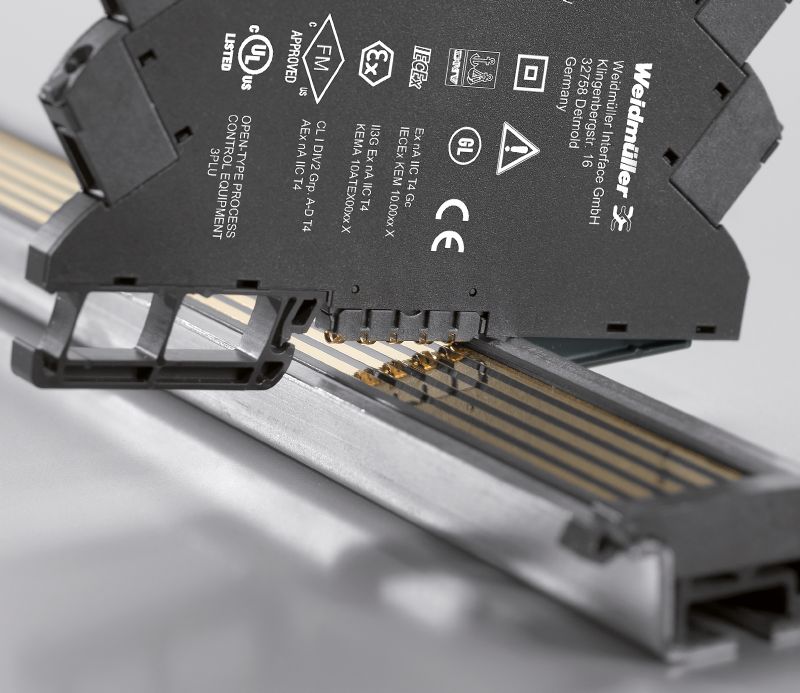

Introducing the ACT20M-BAI-2AO-S, a versatile DC converter that efficiently isolates and converts standard analog signals This device skillfully transforms analog input into a linear output while providing galvanic isolation, ensuring signal integrity Power it directly through wiring or connect via the Weidmüller DIN Rail Bus, both offering robust four-way isolation With two galvanically separated outputs, this converter is engineered for reliability and exceptional performance.

Features and Benefits:

    •Configurable input current.

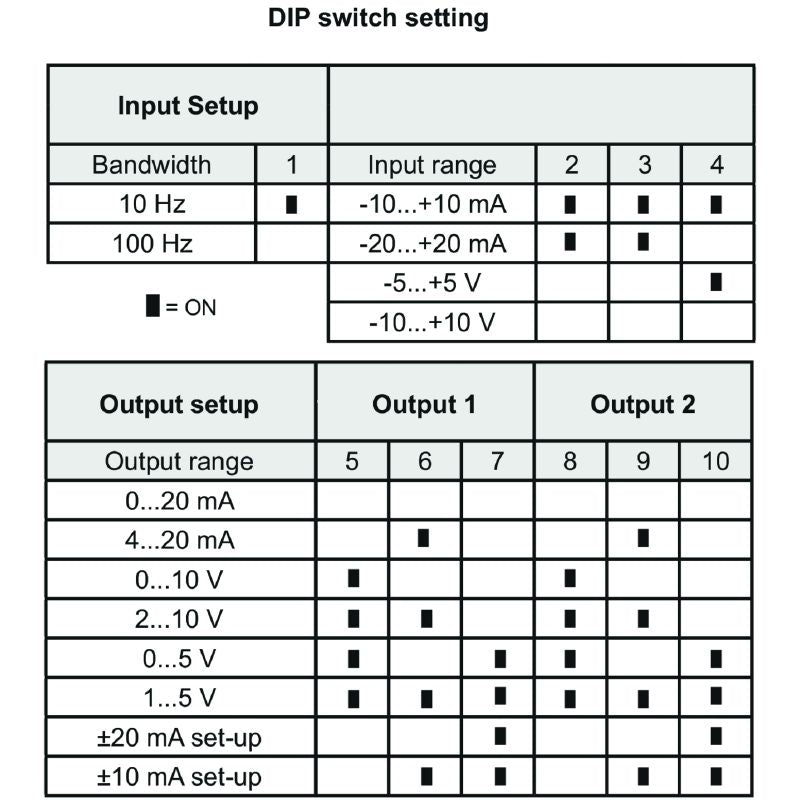

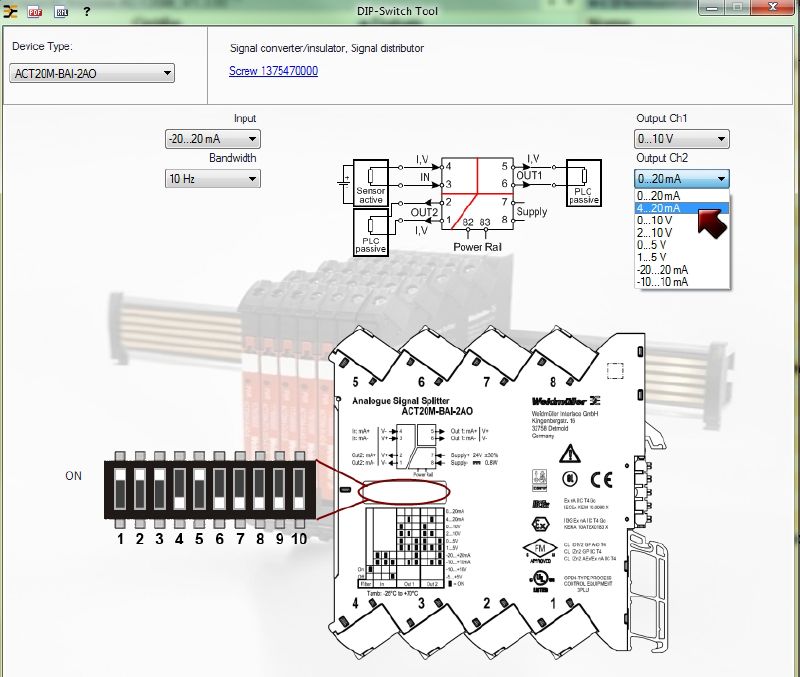

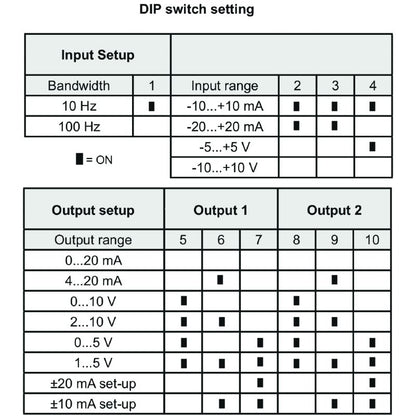

    •DIP switch configuration.

    •IP20 protection degree.

    •Galvanic isolation.

    •Compatible with devices requiring different power sources.

Specifications:

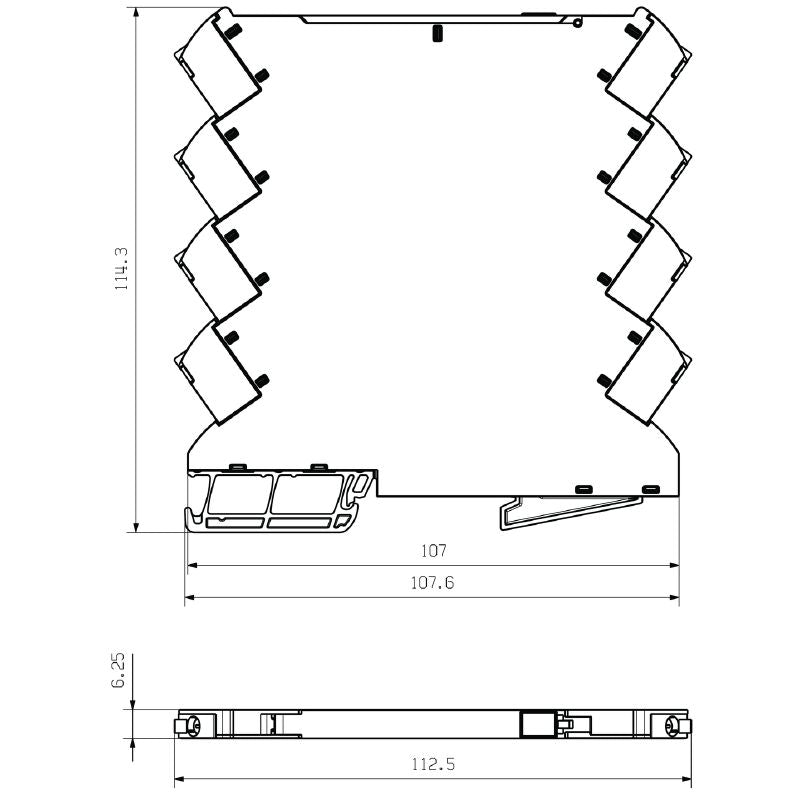

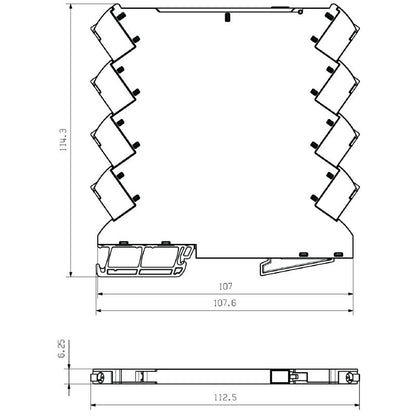

 Depth 114.3 mm
 Height 112.5 mm
 Width 6.1 mm
 Net weight 80 g
 Operating temperature -25 °C...70 °C
 Storage temperature -40 °C...85 °C
 Supply voltage 24 V DC ±30 %
 Accuracy <0.05 % of measuring range
 Number of outputs 2
 Input resistance, voltage ≥ 1 MΩ
 Cut-off frequency (-3 dB) ≥ 100 Hz
 Load impedance current <300 Ω per channel
 Output voltage, note configurable 0(2)...10 V and 0(1)...5 V
 Rated voltage 300 V eff
 Installation location Device installed in safe area, zone 2
 EMC standards EN 61326-1
 Insulation voltage 2.5 kV eff /1 min.
