1510340000 - ACT20C Bus Termination Terminal for TS 35 DIN Rail

1510340000 - ACT20C Bus Termination Terminal for TS 35 DIN Rail

SKU: 1510340000 Download PDF

Variant:
  • 1510340000 - ACT20C Bus Termination Terminal for TS 35 DIN Rail
Now $85.91
BEFORE   $0.00 Now $85.91
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

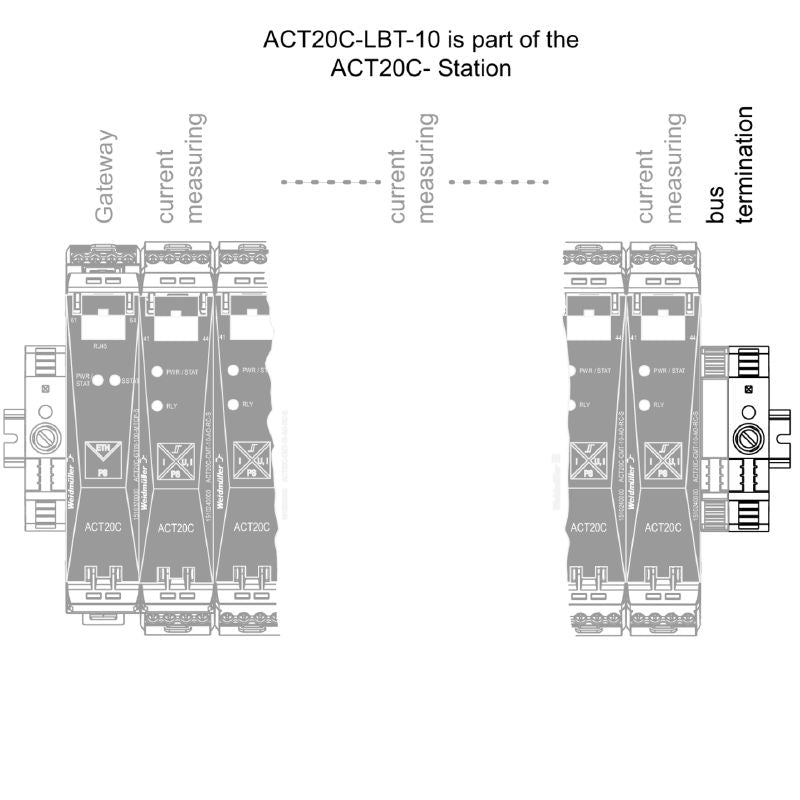

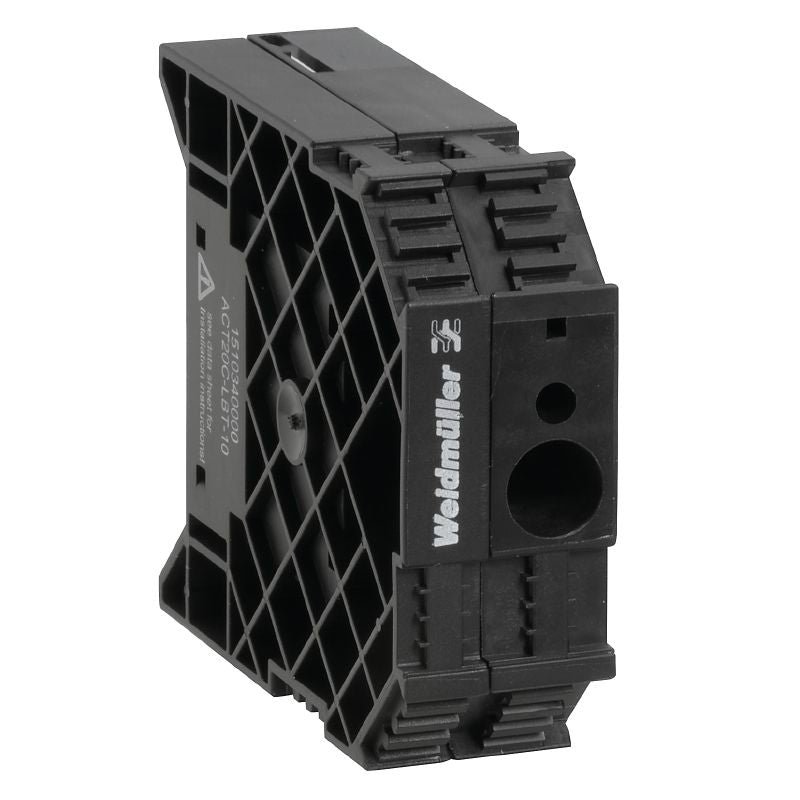

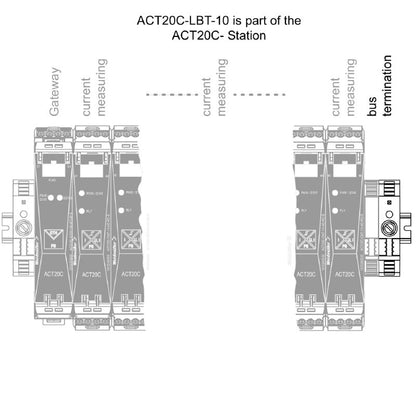

The ACT20C-LBT-10 bus termination terminal is a vital component for connecting the bus in an ACT20C station It functions as a mechanical end bracket, enabling efficient right-hand electrical termination of the internal communication bus This terminal is specifically crafted for mounting on a TS 35 DIN rail and features an integrated CH20M bus profile, ensuring compatibility and ease of installation.

Features and Benefits:

    •Integrated mechanical end bracket function.

    •Assembly on a TS 35 DIN rail.

    •Right-hand electrical termination.

    •Profibus PA.

Specifications:

 Order No. 1510340000

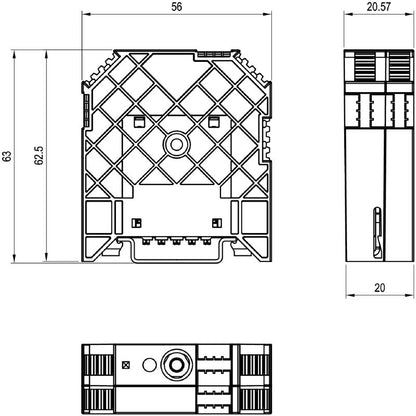

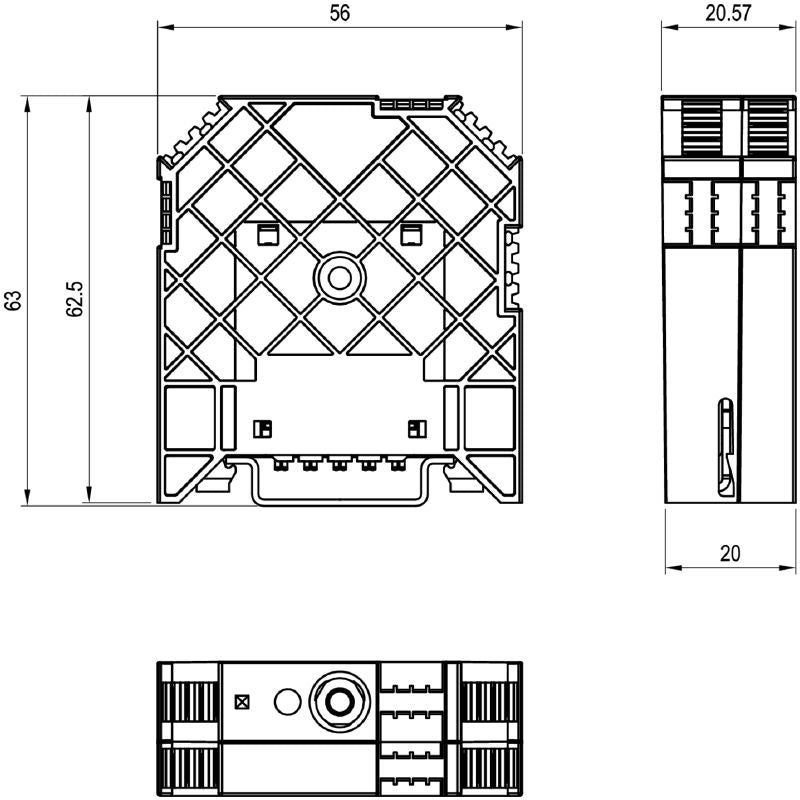

 Depth 63 mm (2.48 inches)
 Height 56 mm (2.205 inches)
 Width 20.6 mm (0.811 inches)
 Net weight 53.88 g
 Storage temperature -40 °C to 85 °C
 Humidity 5 to 95 %, no condensation
 Load impedance current ≤ 600 Ω
 Switching current 5 A
 Nominal power consumption 3 VA
 Protection degree IP20
 Type of connection socket / socket
 SIL in compliance with IEC 61508 None
 MTTF 120 a
