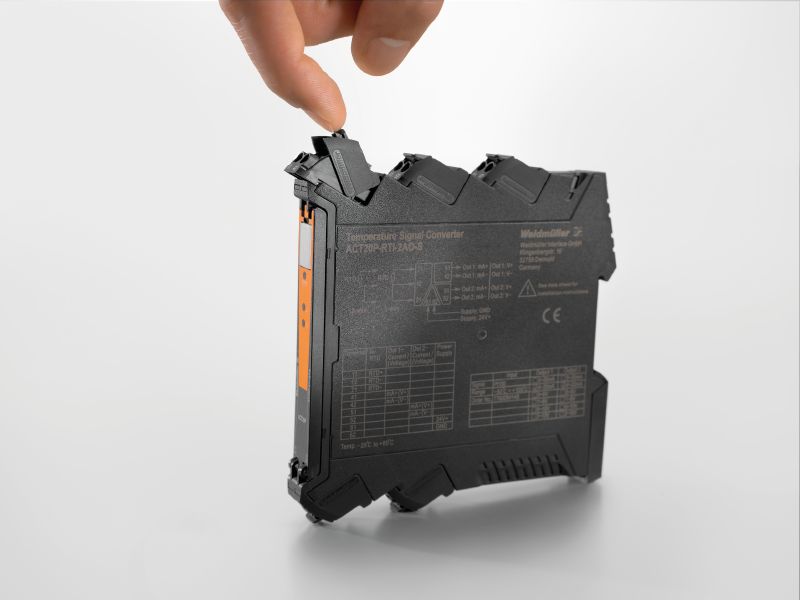

7760054188 - Compact Temperature Signal Duplicator for TS 35 Rail, -20°C to 60°C

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the ACT20P-TCI-2AO-P, a sophisticated device engineered for converting and isolating temperature signals It seamlessly processes inputs from thermocouples and features dual outputs that deliver a reliable 4 to 20 mA signal Compliant with multiple industry standards, this unit boasts a compact design that fits perfectly on a TS 35 rail Weighing only 130 grams, it is built to operate within a temperature range of -20 °C to 60 °C, ensuring versatility and dependability in various environments.

Features and Benefits:

•Compatible with thermocouples of various types including T, E, J, K, N, R, S, and B.

•Configurable temperature input range.

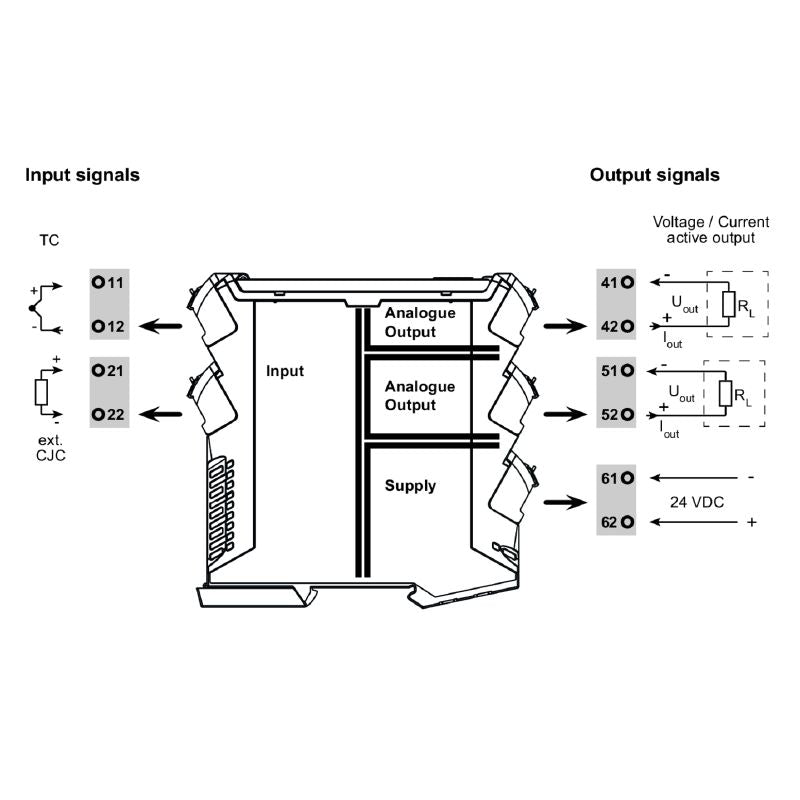

•Active output type with two channels providing output signals.

•Wire break detection feature.

•Free configuration software available.

•Low current consumption.

Specifications:
