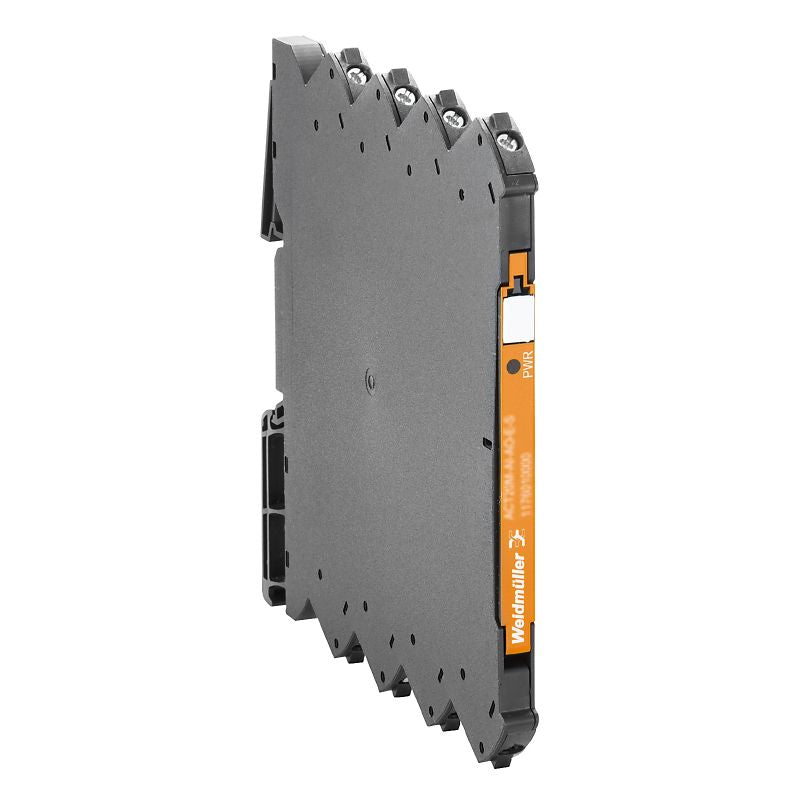

1175990000 - DC Isolating Amplifier with 2 Outputs, 114.3mm Compact Design

Description:

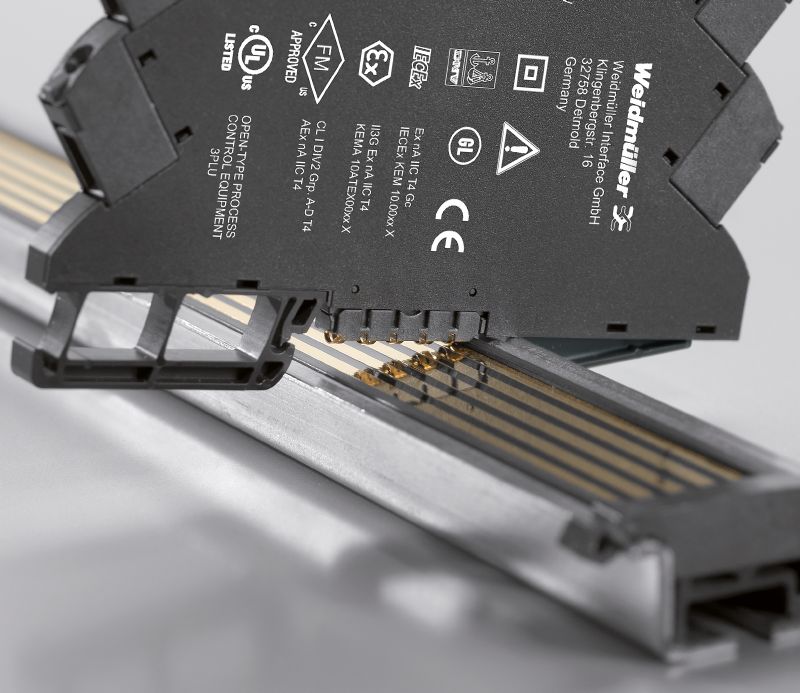

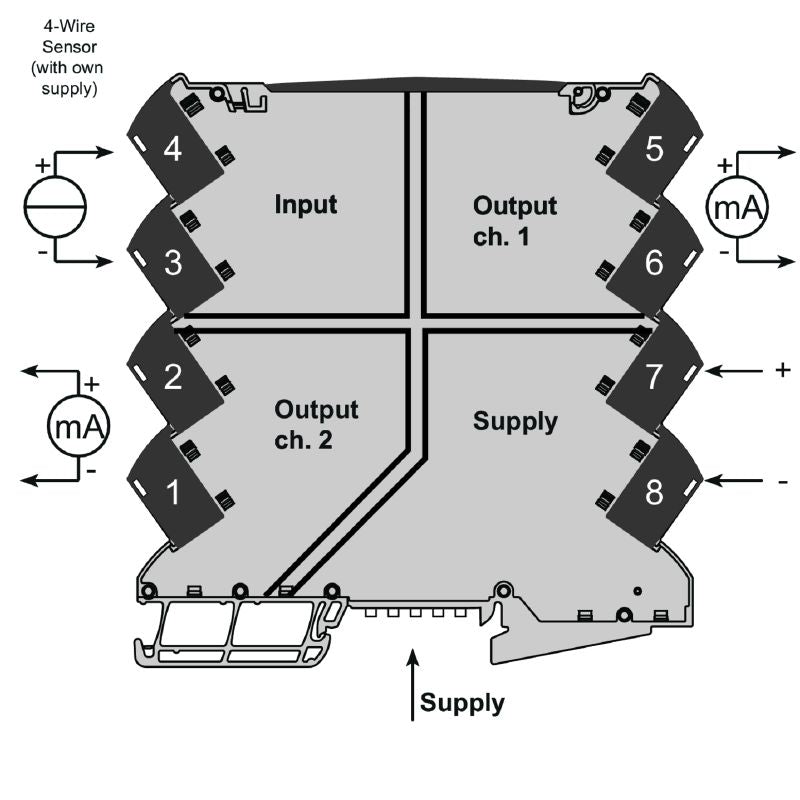

Experience reliable signal isolation with the ACT20M-CI-2CO-S, a robust DC isolating amplifier that expertly isolates and converts analogue current signals This device transforms an input analogue current signal into a galvanically isolated output signal, featuring two isolated outputs Designed for flexibility, it can be set up directly through wiring or via a Weidmüller rail bus With a three-way isolation that safeguards the power supply from the input and output signals, this amplifier supports a standard current input range of 0/4 to 20 mA, making it an essential tool for your electrical needs.

Features and Benefits:

•Acts as a one-channel signal splitter.

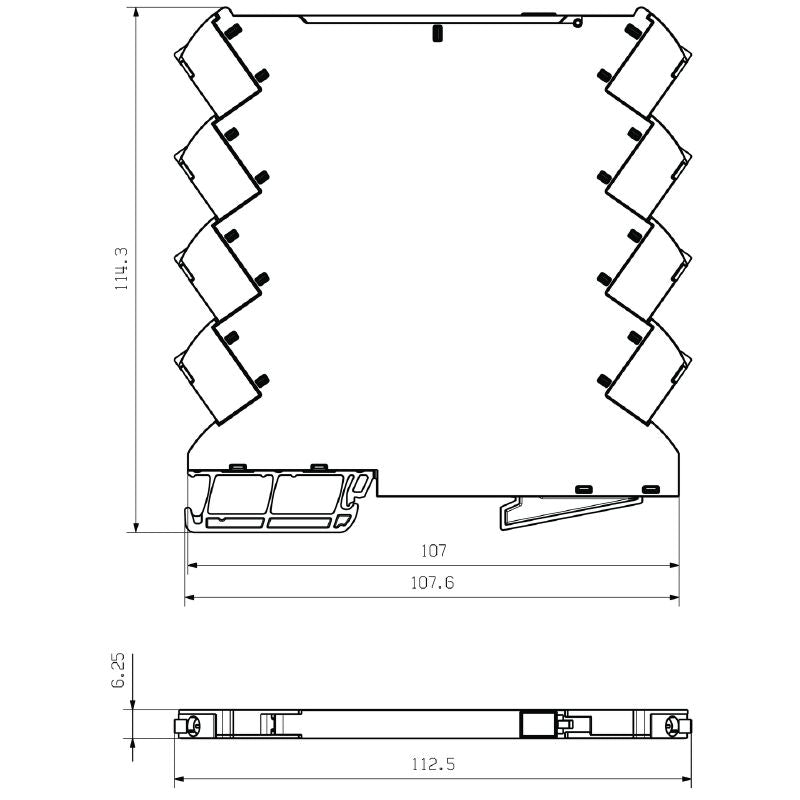

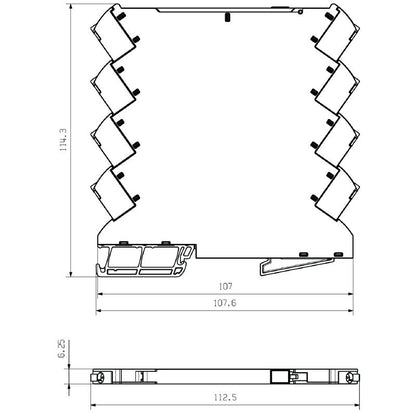

•Dimensions of 114.3 mm depth, 6.1 mm width, and 112.5 mm height.

•IP20 rated protection degree.

•Auxiliary power requirement of 24 V DC ±30%.

•Designed for transmitting and isolating analogue DC current signals.

•Supports an ambient temperature range of -25 °C to +70 °C.

•Offers 3-way isolation up to 2.5 kV AC/DC.

•Used for isolated analogue signal transmission in safe areas.

•Applicable in systems requiring galvanic isolation for current signals.

Specifications:
