7760054304 - PT100 Digital Temperature Relay with Alarm, -50°C to 100°C

7760054304 - PT100 Digital Temperature Relay with Alarm, -50°C to 100°C

SKU: 7760054304   Download PDF

Select a Variant:
  • 7760054304 - PT100 Digital Temperature Relay with Alarm, -50°C to 100°C
Qty:
Now $105.15   Web pricing policy
BEFORE   $0.00 Now $105.15 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

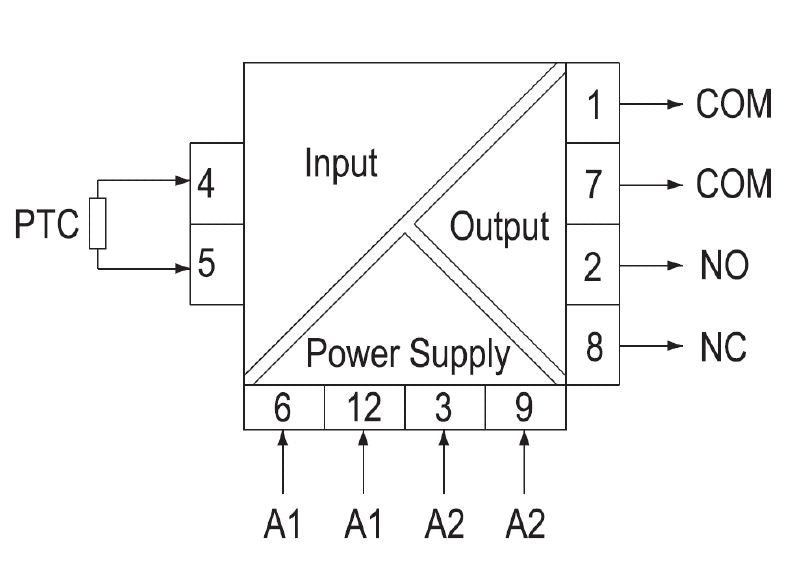

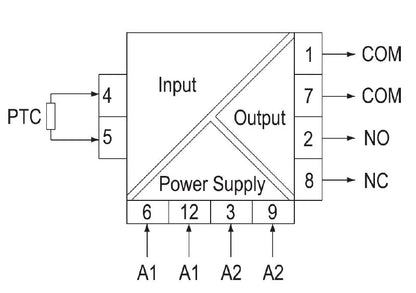

Introducing the EPAK-TMR-PTC, a reliable device engineered to operate with PT100 inputs across a temperature range of -50°C to 100°C This unit adheres to RoHS standards, and it includes a digital output that features an alarm for over-temperature conditions With the capability to manage a peak switching voltage of 250 VAC and 30 VDC, it boasts a rated switching current of 3 A Equipped with a single changeover (CO) contact, this relay is designed for altitudes of up to 2000 m.

Consuming less than 60 mA at 24 VDC, the EPAK-TMR-PTC not only promises efficient performance but also complies with EMC safety regulations Moreover, it has an IP20 protection rating and exceptional insulation coordination, ensuring secure operation at all times.

Features and Benefits:

    •Compliant with RoHS.

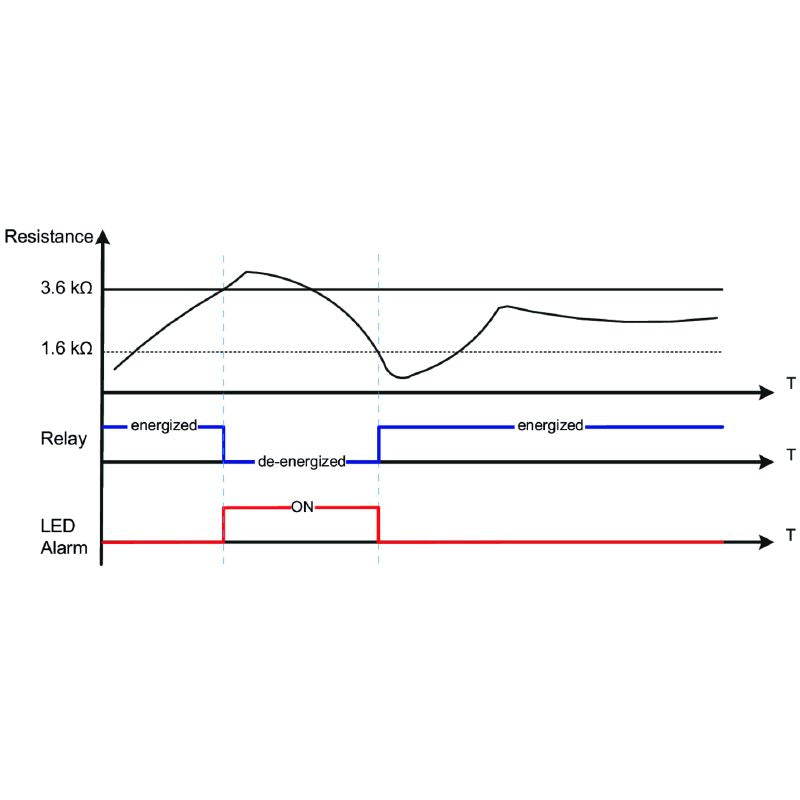

    •Over-temperature alarm function.

    •IP20 protection degree.

    •Designed for operating altitudes up to 2000 m.

    •Galvanic isolation between input and output.

Specifications:

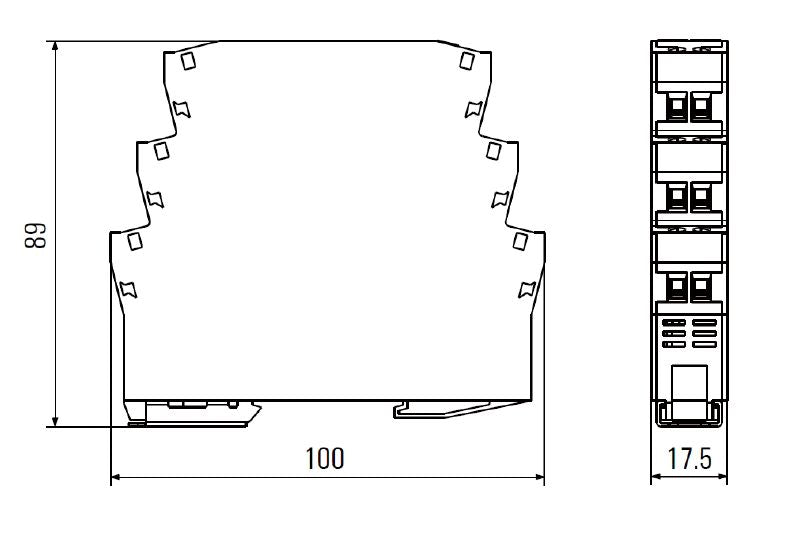

 Depth 89 mm
 Height 100 mm
 Width 17.5 mm
 Length 100 mm
 Net weight 80 g
 Storage temperature -40 °C to 85 °C
 Operating temperature -20 °C to 60 °C
 Humidity at operating temperature 0 to 85 % relative humidity
 Input measurement range PT100 -50°C to 100°C
 Max. switching voltage, AC 250 V
 Max. switching voltage, DC 30 V
 Rated switching current 3 A
 Type Relay, 1 CO contact
 Power consumption <60 mA @ 24VDC
 Step response time ≤ 200 ms (10 to 90%)
 Supply voltage 18 to 30 VDC
 Temperature coefficient 350 ppm/K
 Impulse withstand voltage 4 kV (1.2/50 µs)
 Insulation voltage 2.2 kVAC, 1 min, 50 Hz
 Rated voltage 300 V AC rms
 Tightening torque, min 0.4 Nm
 Tightening torque, max 0.6 Nm
 Clamping range, rated connection 2 mm²
 Wire connection cross-section AWG, min AWG 30
 Wire connection cross-section AWG, max AWG 14
