1510420000 - ACT20C Transducer for AC/DC Currents, 60A, True RMS Measurement

1510420000 - ACT20C Transducer for AC/DC Currents, 60A, True RMS Measurement

SKU: 1510420000   Download PDF

Select a Variant:
  • 1510420000 - ACT20C Transducer for AC/DC Currents, 60A, True RMS Measurement
Qty:
Now $309.33   Web pricing policy
BEFORE   $0.00 Now $309.33 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the ACT20C-CMT-XX-AO-RC-S measuring transducer from the ACT20C series, a reliable tool for both AC and DC current monitoring with a capacity of up to 60 A Featuring advanced True RMS technology, it delivers precise measurements even in the presence of distorted waveforms The device is equipped with adjustable limit value monitoring, enabling users to set specific switching thresholds, delays, and hysteresis for optimal performance.

Additionally, it includes a relay output for efficient control, making it an essential instrument for accurate current measurement.

Features and Benefits:

    •True RMS value measurement and arithmetic averaging measurement capabilities.

    •Contactless through-hole technology for current monitoring.

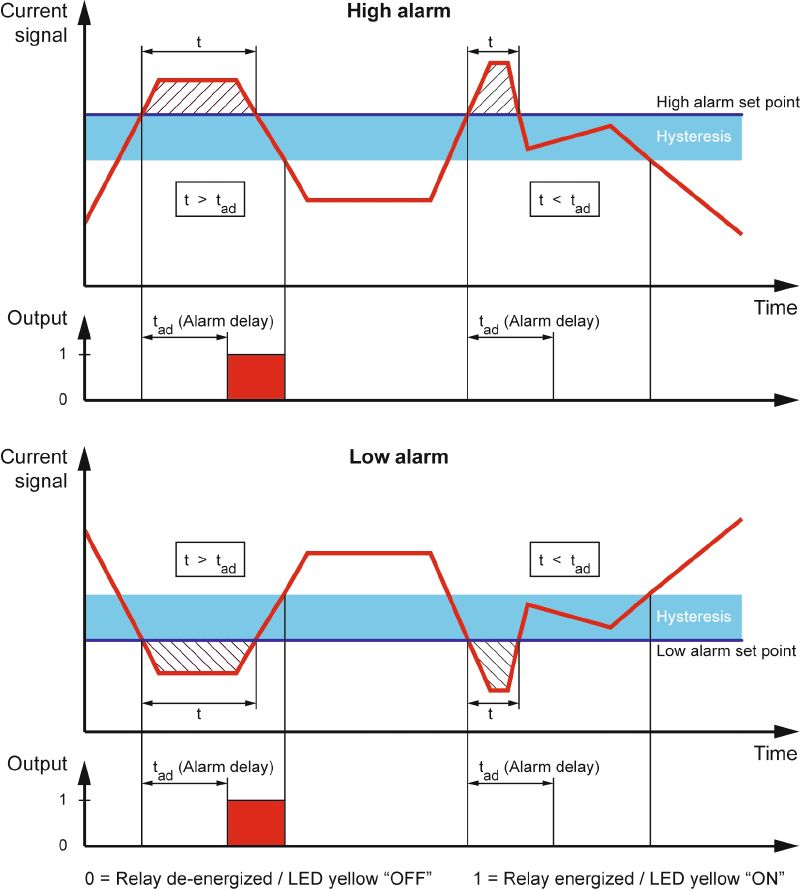

    •Integrated limit value monitoring with settings for overcurrent and undercurrent.

    •Relay output using open-circuit/closed-circuit principles.

    •Customizable trigger delay settings.

    •Status and error notifications through front panel LED display.

Specifications:

 Input frequency AC: 15…700 Hz
 Input measurement range configurable 0…40/50/60 A AC (RMS) or DC

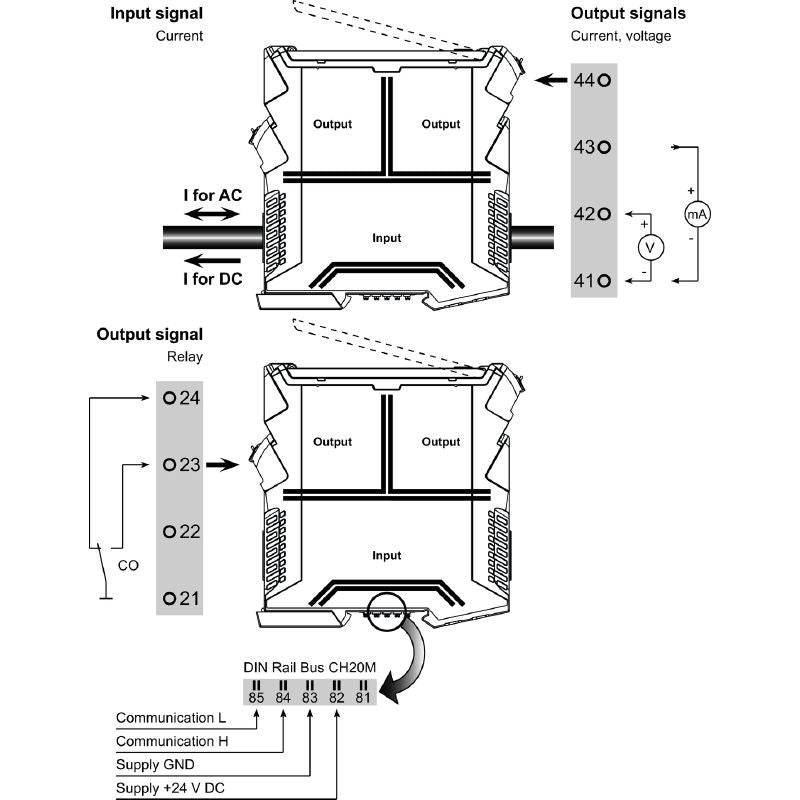

 Output (digital) Relay, 1 CO contact, max. switching voltage 250 V, rated switching current 6 A
 Output (analogue) Adjustable current and voltage outputs (formats include 0...20 mA, 4...20 mA, 0...10 V, among others)
 Accuracy <0.75 % FSR; <1.5 % FSR with measurement range 50/60 A AC

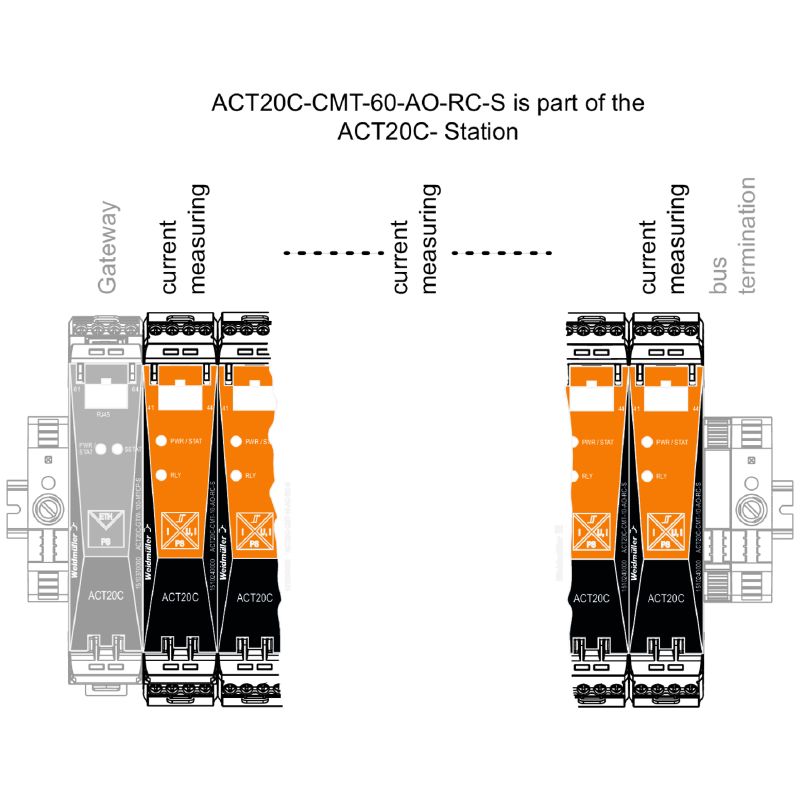

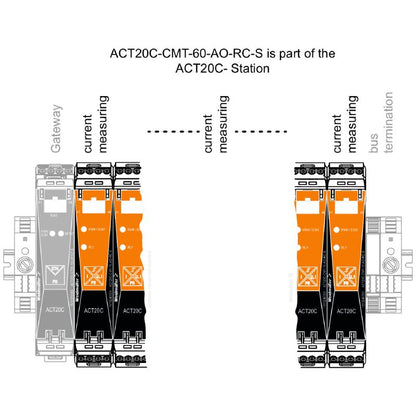

 Supply voltage via the system bus

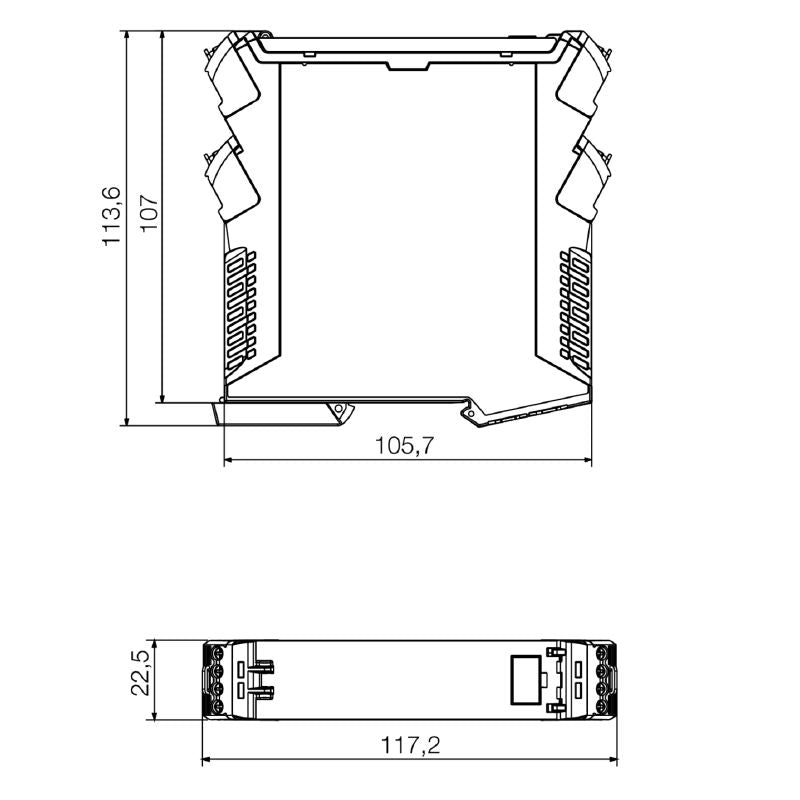

 Mounting rail TS 35
 Temperature coefficient 0.04 % / K typical, 0.09 % / K maximum
 Galvanic isolation 4-way isolator between input, output, supply, and relay
 Rated voltage 300 V AC rms
 Clamping range, rated connection 1.5 mm²
 Wire connection cross section AWG, max AWG 14
