7760054307 - ROHS Compliant Device 89mm Depth with 1 Analog & 2 Current Outputs

7760054307 - ROHS Compliant Device 89mm Depth with 1 Analog & 2 Current Outputs

SKU: 7760054307   Download PDF

Select a Variant:
  • 7760054307 - ROHS Compliant Device 89mm Depth with 1 Analog & 2 Current Outputs
Qty:
Now $114.98   Web pricing policy
BEFORE   $0.00 Now $114.98 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the EPAK-CI-2CO, a ROHS compliant device versatile enough for a range of applications With compact dimensions of 89 mm in depth, 100 mm in height, and 175 mm in width, it weighs a manageable 80 g This unit operates efficiently within a temperature scope of -20 °C to 60 °C, and can be safely stored at temperatures from -40 °C to 85 °C Capable of functioning with input levels as low as 0 mA, it adheres to the IEC 61508 standard for failure probability resilience.

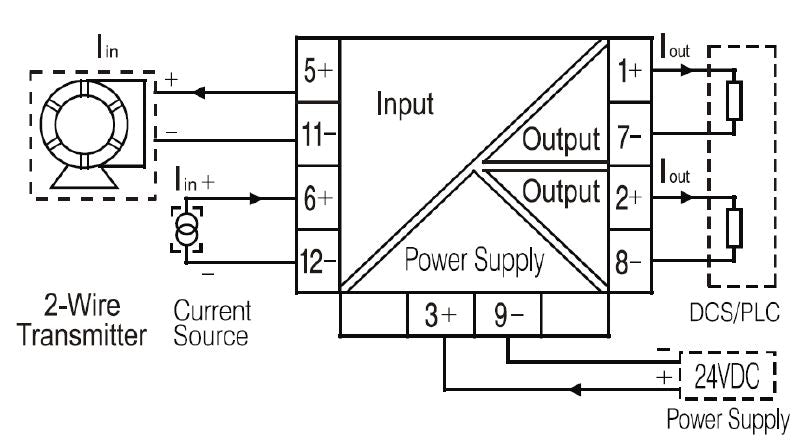

Additionally, it is equipped with one analog output and two current outputs, enabling it to support a variety of electrical tasks adeptly.

Features and Benefits:

    •Storage temperature range from -40 °C to 85 °C.

    •Operating temperature range from -20 °C to 60 °C.

    •Accuracy of 0.1% FSR.

    •IP20 protection degree.

    •Galvanic isolation between input, output, and supply.

Specifications:

 Input current 0...20 mA, 4...20 mA
 Input resistance, current ≤ 100 Ω
 Number inputs 1
 Load impedance current ≤ 300 Ω
 Number of outputs 2
 Output current 0...20 mA, 4...20 mA
 Max. switching voltage, AC 0 V
 Max. switching voltage, DC 0 V
 Number of digital outputs 0
 Rated switching current 0.1 A
 Number analogue outputs 1
 Nominal power consumption 1.7 VA
 Power consumption ≤ 60 mA, 24 V supply @ 20 mA output, at current source
 Protection degree IP20
 Step response time ≤ 500 ms
 Supply voltage 20...35 V DC
 Temperature coefficient ≤ 300 ppm/K
 Insulation voltage 1.5 kV eff
 Pollution severity 2
 Rated voltage 300 V
 Surge voltage category II
 Type of connection Screw connection
 Tightening torque, min. 0.4 Nm
 Tightening torque, max. 0.6 Nm
 Clamping range, rated connection 2 mm²
 Clamping range, min. 0.5 mm²
 Clamping range, max. 2 mm²
 Wire connection cross section AWG, min. AWG 30
 Wire connection cross section AWG, max. AWG 14
