2044850000 - Accurate AC/DC Current Monitor with Limit Alerts, 10A Max

2044850000 - Accurate AC/DC Current Monitor with Limit Alerts, 10A Max

SKU: 2044850000   Download PDF

Select a Variant:
  • 2044850000 - Accurate AC/DC Current Monitor with Limit Alerts, 10A Max
Qty:
Now $245.70   Web pricing policy
BEFORE   $0.00 Now $245.70 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

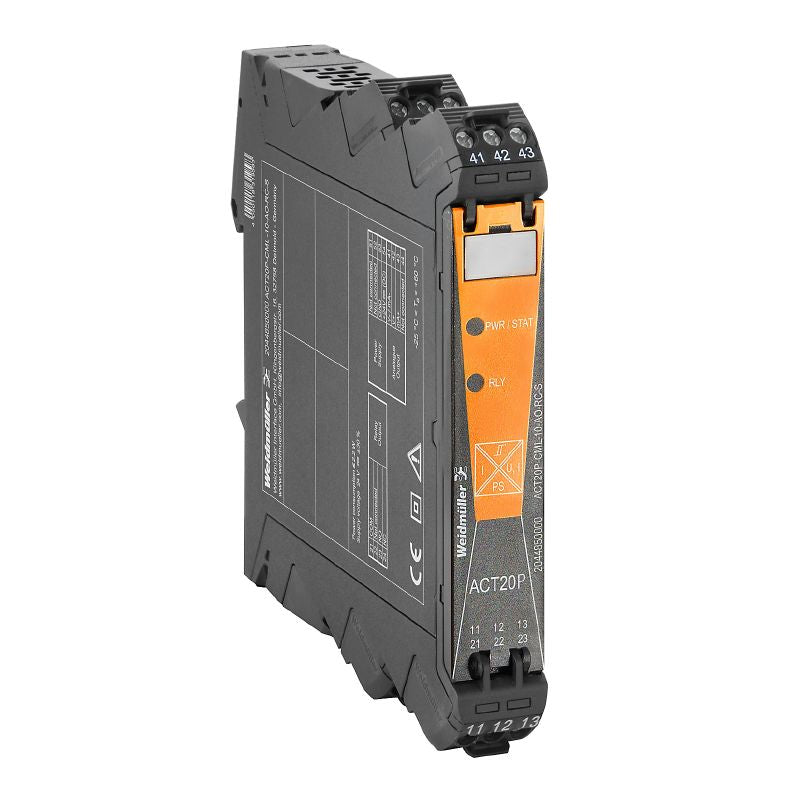

Introducing the ACT20P-CML-10-AO-RC-S, a sophisticated device crafted for accurate measurement and monitoring of both AC and DC currents, with a maximum capacity of 10 A Utilizing advanced real effective value methodology, this equipment guarantees precision even in the presence of distorted current waves Equipped with integrated monitoring capabilities, users can set customizable thresholds along with lag, hysteresis, and a relay output for enhanced functionality.

Perfect for applications requiring reliable current data monitoring.

Features and Benefits:

    •True RMS measurement or arithmetic averaging measurement.

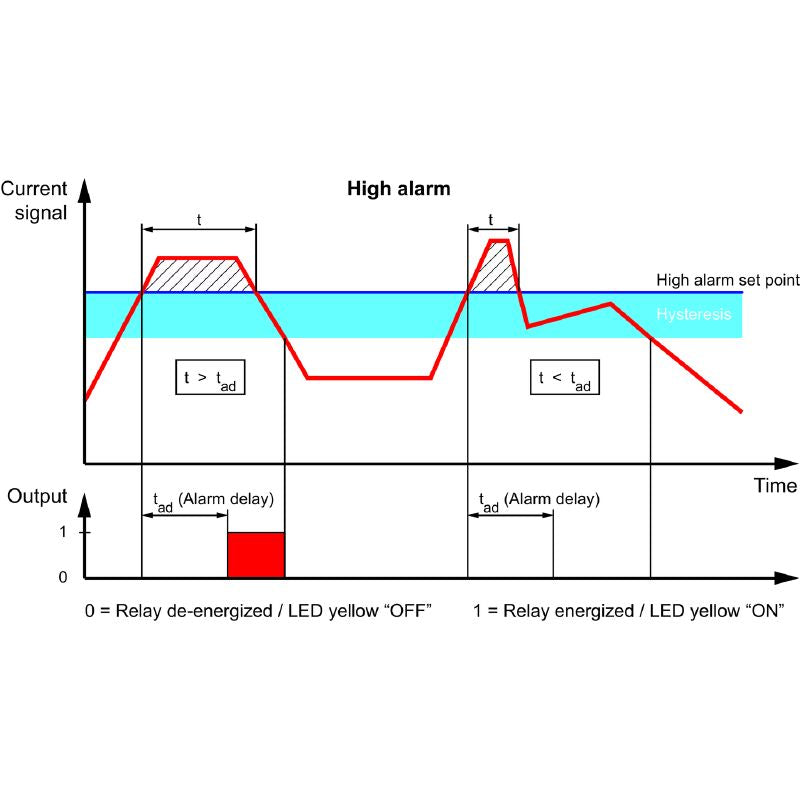

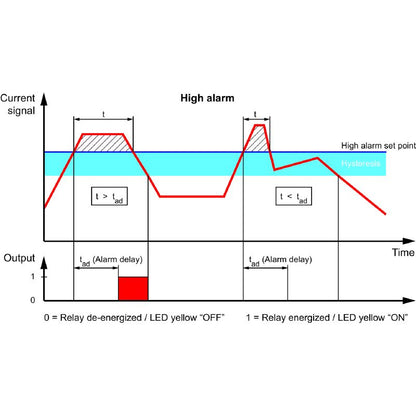

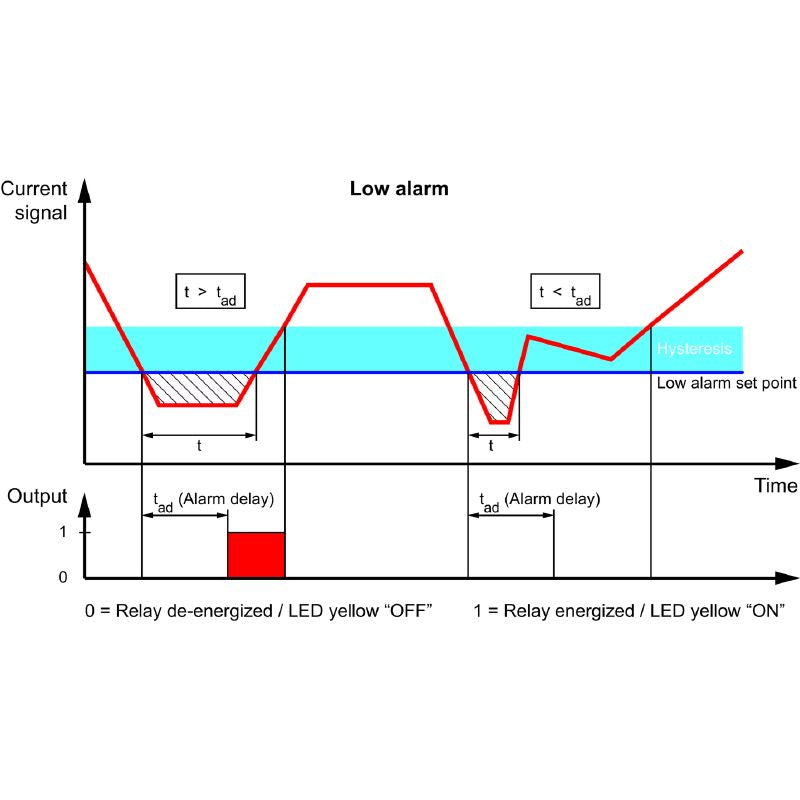

    •Monitoring of limit values for both overcurrent and undercurrent conditions.

    •Relay output operating on the open-circuit / closed-circuit principle.

    •Adjustable delay for triggering to filter out current spikes.

    •LED indicators on the front panel for operational status and errors.

    •Four-way galvanic isolation ensuring safe separation according to IEC/EN 61010-2-201.

Specifications:

 Order No. 2044850000
 Depth 113.6 mm
 Height 119.2 mm
 Width 17.5 mm
 Storage Temperature -40 °C...85 °C
 Operating Temperature -25 °C...60 °C
 Humidity 5...95 %, no condensation
 MTTF 130 a
 Input Frequency AC: 15…400 Hz (true root mean square)
 Input Measurement Range configurable 0…1/5/10 A AC (RMS) or DC
 Max. Peak Current 10 × IInput for 1s
 Load Impedance Current ≤ 600 Ω
 Max. Switching Voltage AC 250 V
 Max. Switching Voltage DC 24 V
 Rated Switching Current 2 A
 Output Current Adjustable 0...20 mA, 4...20 mA, -20…+20 mA
 Output Voltage Adjustable 0...10 V, 2…10 V, 0...5 V
 Accuracy ≤ ±0.3 % @ 1 A / 5 A, ≤ ±0.6 % @ 10 A
 Protection Degree IP20
 Supply Voltage 16,8 V…31,2 V
 Insulation Voltage 4 kV eff / 1 min.
 Type of Connection Screw connection
 Wire Connection Cross Section AWG, Min. AWG 26
 Wire Connection Cross Section AWG, Max. AWG 12
