Description:

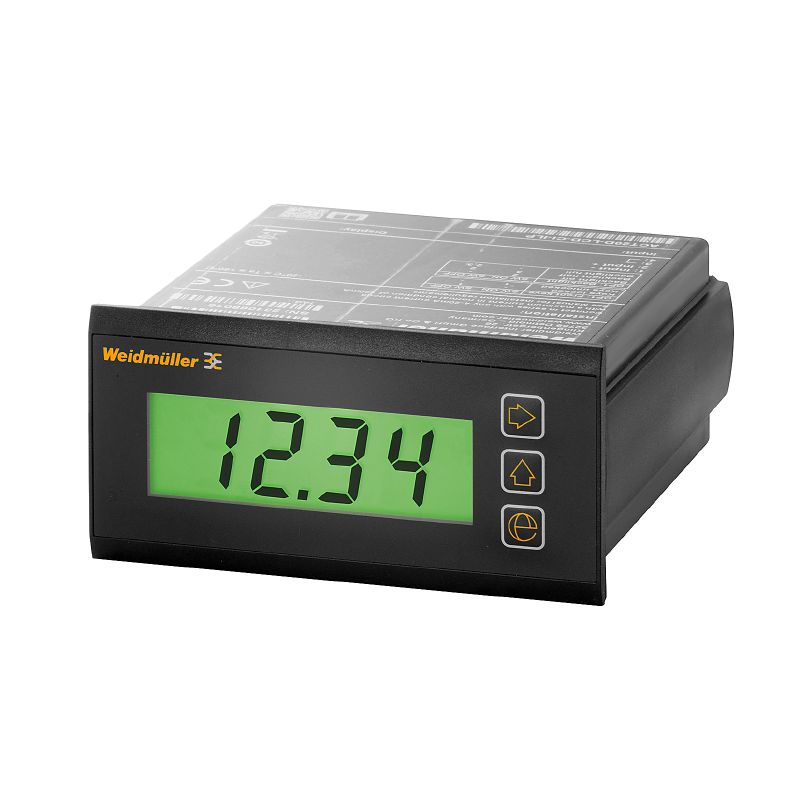

Introducing a versatile loop-powered display that accurately showcases input values from 4-20 mA with seamless HART compatibility This device boasts a four-character LCD screen that offers adjustable brightness and variable scaling functionality for user preference Built to endure, it functions optimally in a wide temperature range of -20 °C to 60 °C and can handle humidity levels from 0 to 95% without condensation, ensuring reliable performance in various environments.

Features and Benefits:

•Dimmable display.

•Includes a decimal point adjustment.

•Protection degree of IP65.

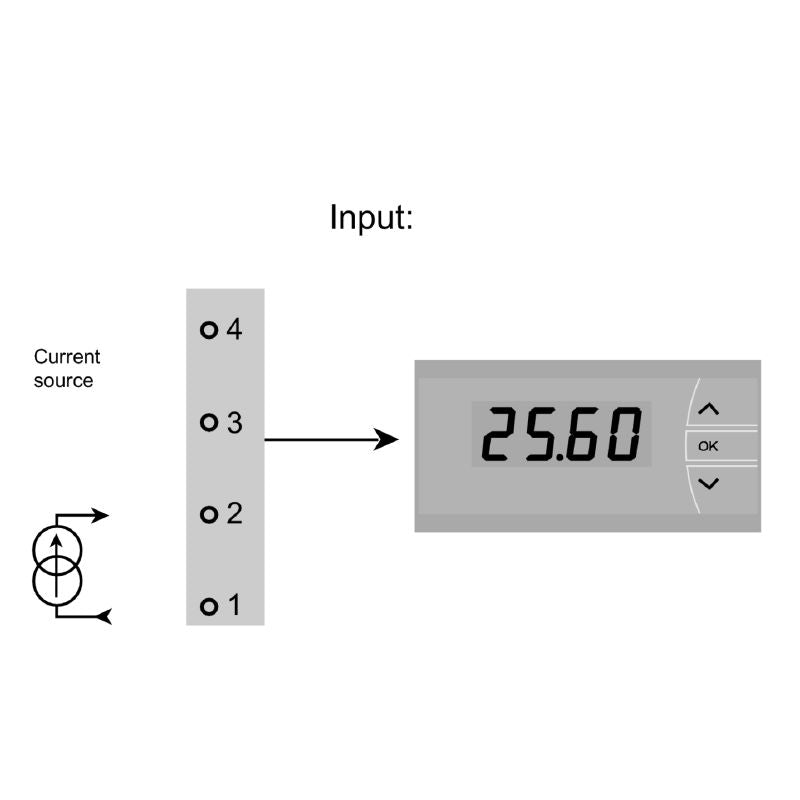

•Current source sensor with 4-wire configuration.

•Maximum response time of ≤1s.

Specifications:

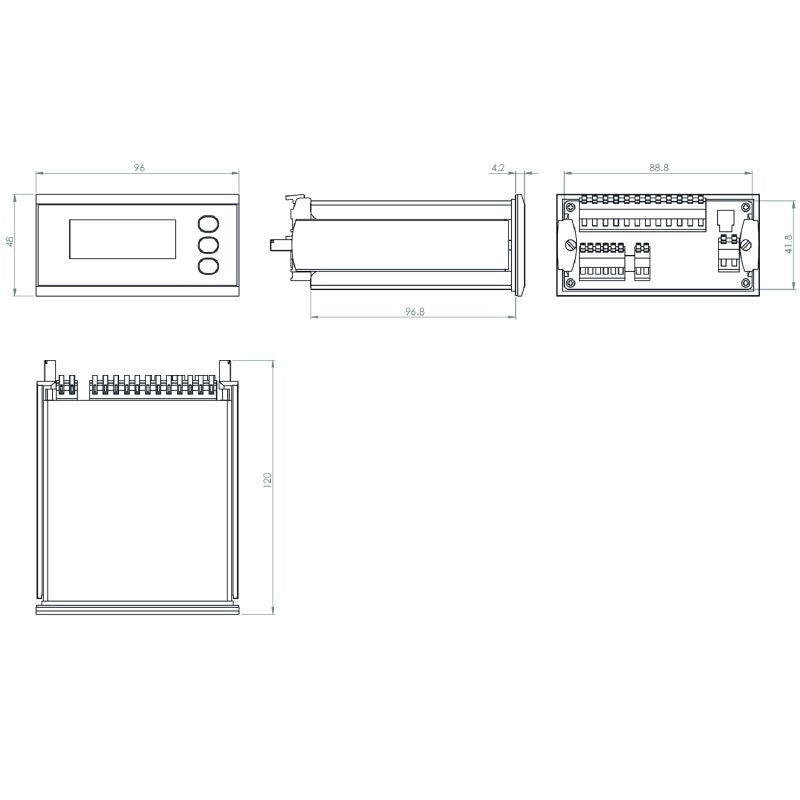

Dimensions	120 mm x 96 mm x 48 mm
Storage temperature	-20 °C to 60 °C
Operating temperature	-20 °C to 60 °C
Humidity	0 to 95% (no condensation)
Input current	4…20 mA
Input measurement range	3.6 … 23 mA (NAMUR NE43 conform)
Accuracy	<0.1 % of measuring range
Supply voltage	Loop powered, via 4…20 mA input

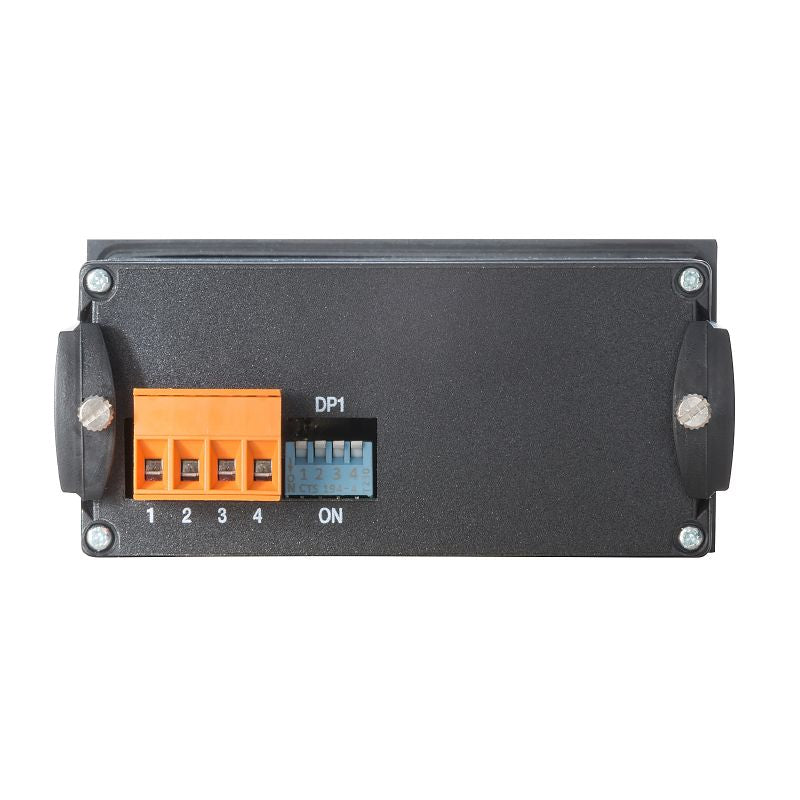

Wire connection method	Screw connection
Wire connection cross section AWG min	AWG 26
Wire connection cross section AWG max	AWG 14
Number of inputs	1
DIN Rail compatibility	No
