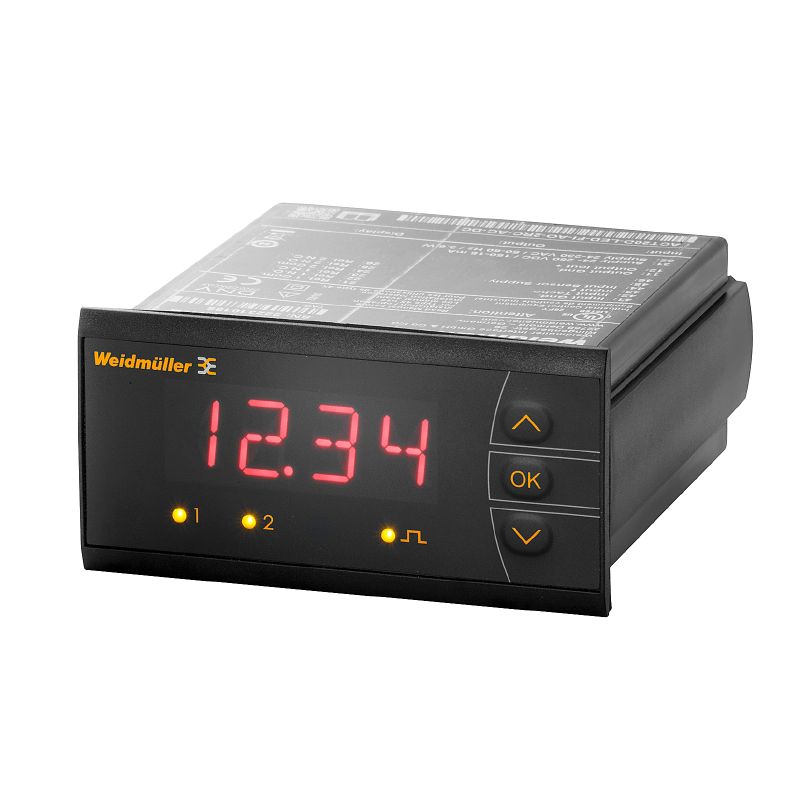

2920070000 - ACT20D Display, IP65, -1999 to 9999 Range, LED Output

2920070000 - ACT20D Display, IP65, -1999 to 9999 Range, LED Output

SKU: 2920070000 Download PDF

Variant:
  • 2920070000 - ACT20D Display, IP65, -1999 to 9999 Range, LED Output
Now $608.65
BEFORE   $0.00 Now $608.65
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

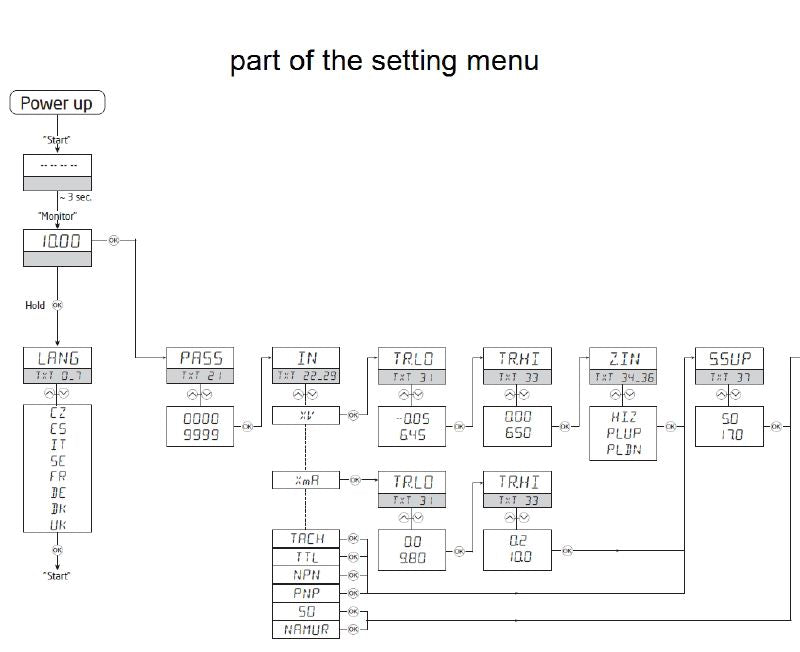

Introducing the ACT20D-LED-FI-AO-2RC-AC-DC, a multifunctional display device that accurately measures frequency with outputs available in both analogue voltage and current formats With the ability to configure decimal points, this unit boasts a display range of -1999 to 9999, effectively displaying current measurements as both percentages and real values The device features a vibrant red LED display across four characters, with each digit measuring 13.

8 mm high for clear visibility Rated with an IP65 protection degree, it ensures reliability in various environments and meets multiple RoHS exemptions This model guarantees exceptional precision, maintaining an accuracy of less than ±01% throughout its measurement range.

Features and Benefits:

    •Cycle time of 2.2 times per second.

    •Dimmable display.

    •Configurable display format with scrolling text for error messages.

    •Low power consumption of ≤ 3.5 W.

    •Adjustable switching thresholds.

    •Compatible with various types of sensors.

Specifications:

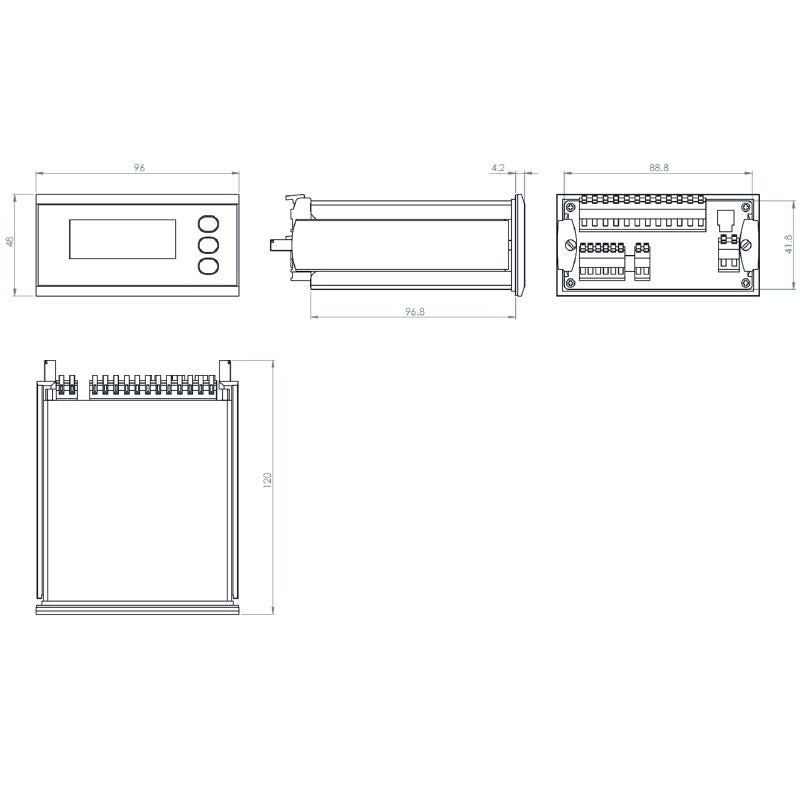

 Depth 120 mm
 Height 48.8 mm
 Width 96.6 mm
 Storage Temperature -40 °C to 80 °C
 Operating Temperature -20 °C to 60 °C

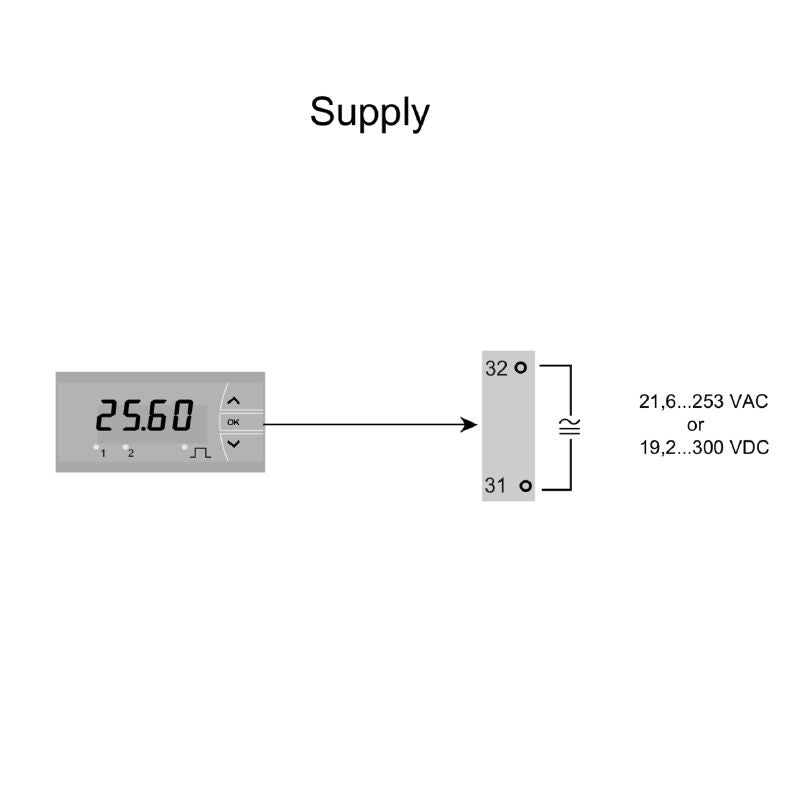

 Power Supply 21.6 to 253 VAC (50 to 60 Hz) or 19.2 to 300 VDC
 Protection Degree IP65
 Accuracy absolute accuracy: <±0.1 % of the measurement range

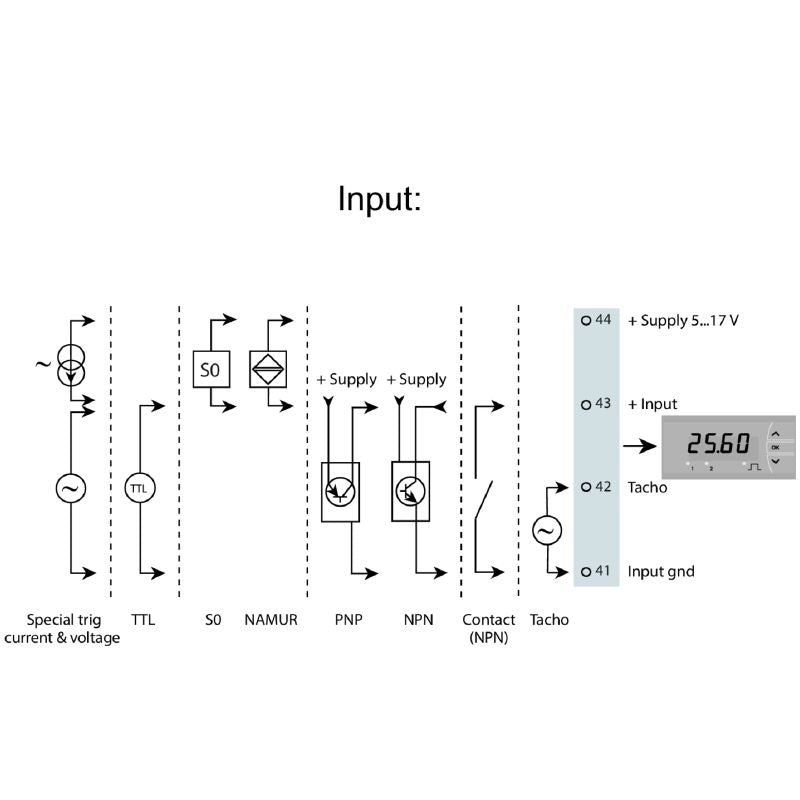

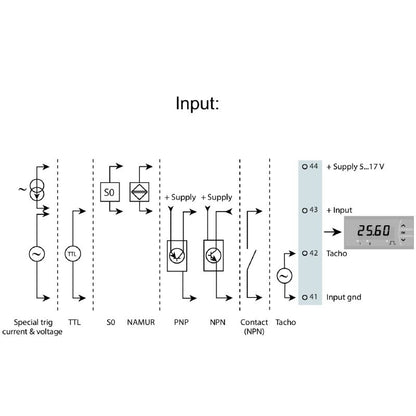

 Inputs {'Input Frequency': '0.001…50 kHz', 'Number of Inputs': 1, 'Response Time': '≤ 1 Period + 100 ms'}

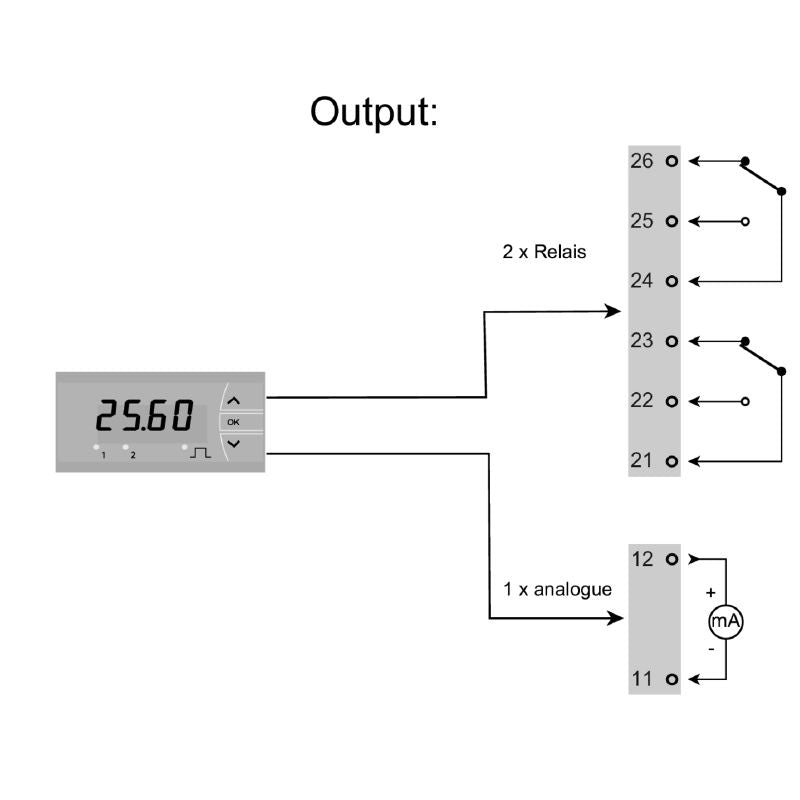

 Outputs {'Number of Digital Outputs': 2, 'Rated Switching Current': '2 A', 'Rated Switching Voltage': '24 V AC ... 250 V AC'}

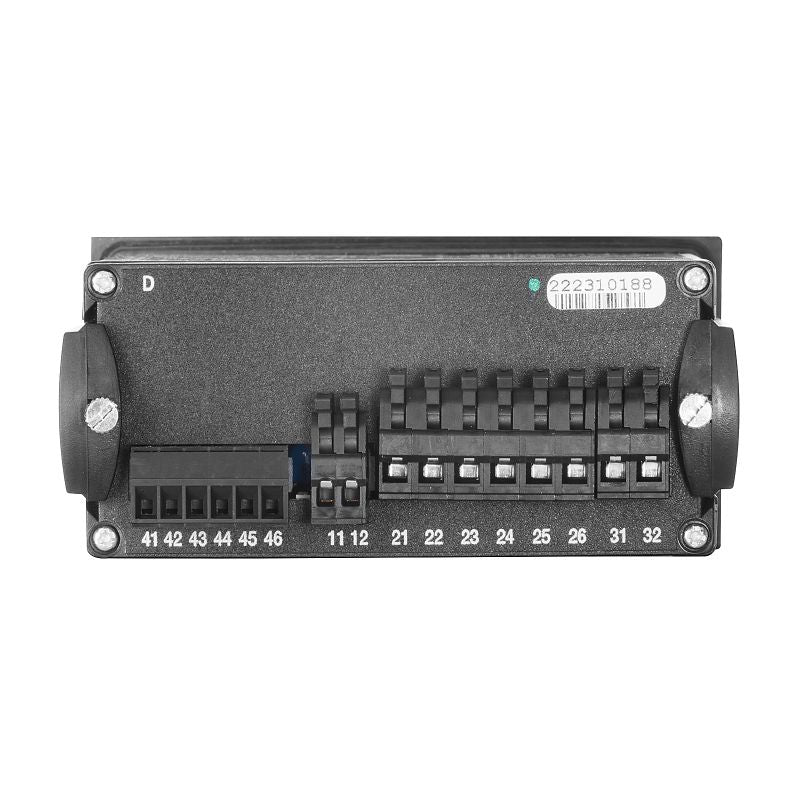

 Connection Data {'Wire Connection Method': 'Clamping yoke, pluggable', 'Min Wire Connection Cross Section (AWG)': '30', 'Max Wire Connection Cross Section (AWG)': '16'}
 Insulation Coordination {'Insulation Voltage': '2.3 kVAC (Test) / 250 VAC (Operating State)', 'Pollution Severity': 2, 'Surge Voltage Category': 'II'}
