8965350000 - 1-Channel Isolating Switch Amplifier for NAMUR Sensors

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

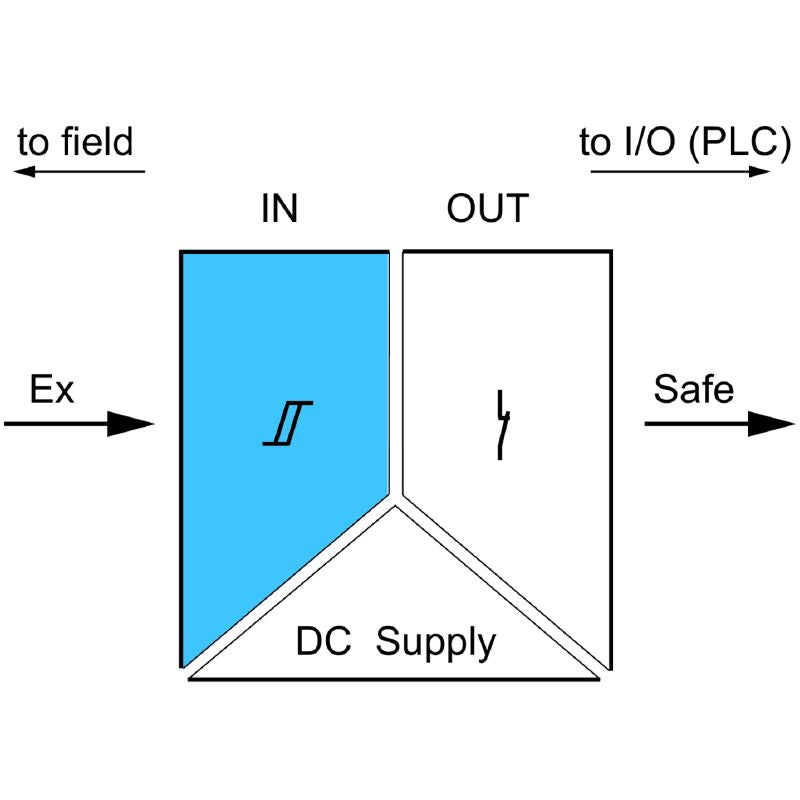

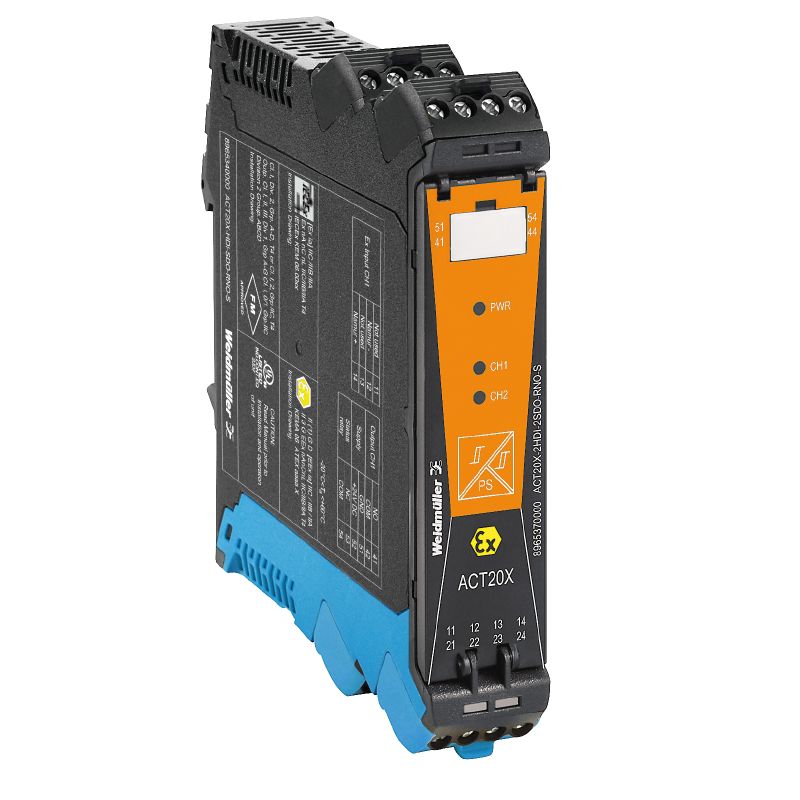

Introducing the ACT20X-HDI-SDO-S series, a range of 1-channel isolating switch amplifiers tailored specifically for NAMUR sensors These reliable amplifiers facilitate the transfer of digital signals while ensuring galvanic isolation, providing a safe connection from explosive environments to non-hazardous areas The input circuits are engineered to maintain intrinsic safety, compatible with NAMUR sensors that meet the EN 60947-5-6 standard, as well as potential-free contacts, regardless of whether they employ resistive circuitry.

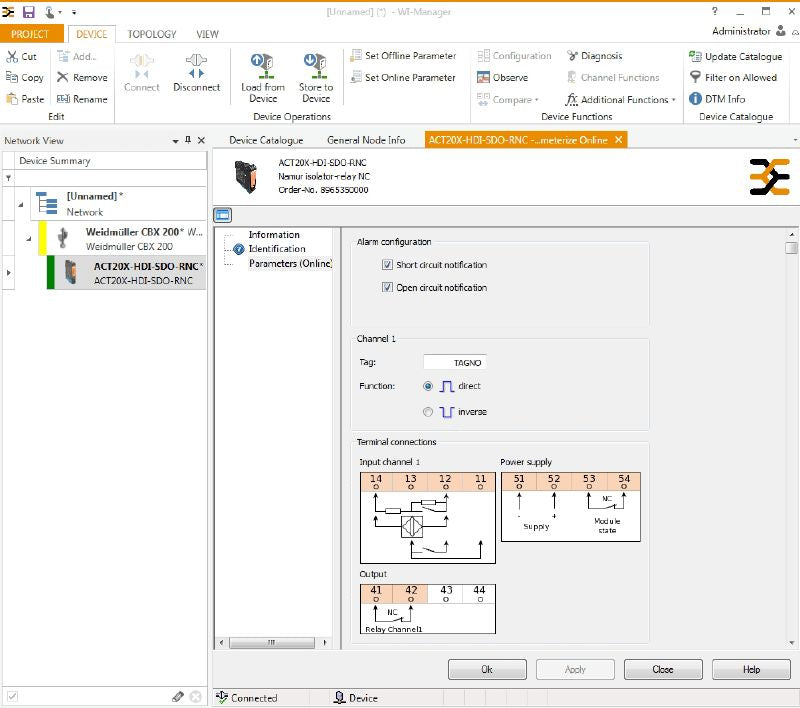

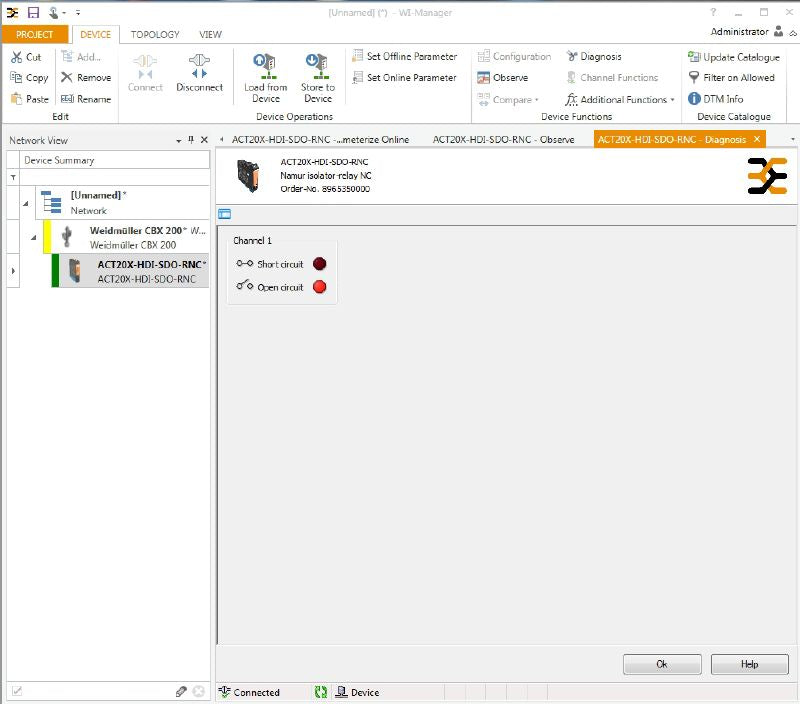

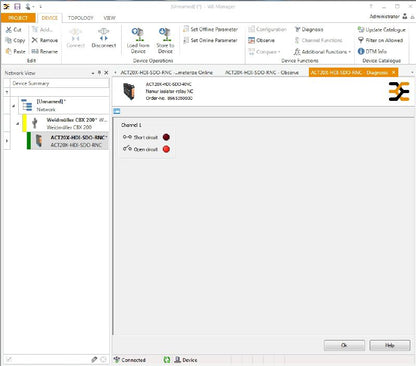

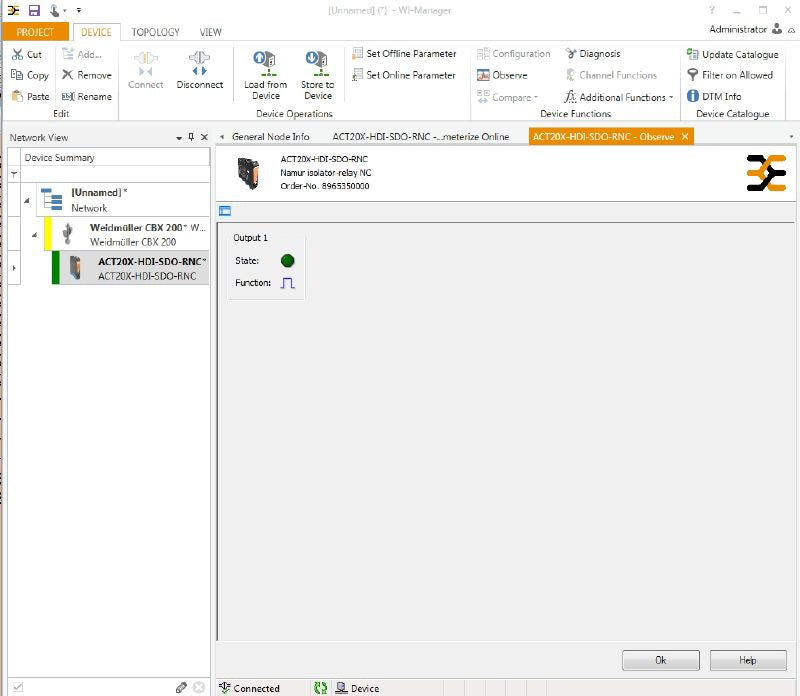

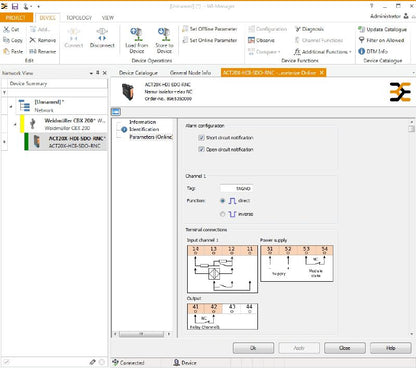

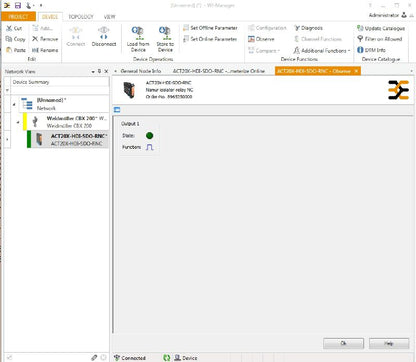

Available in both single and dual-channel models, these amplifiers come with either relay or transistor outputs and can be easily configured utilizing standard FDT/DTM software for seamless integration.

Features and Benefits:

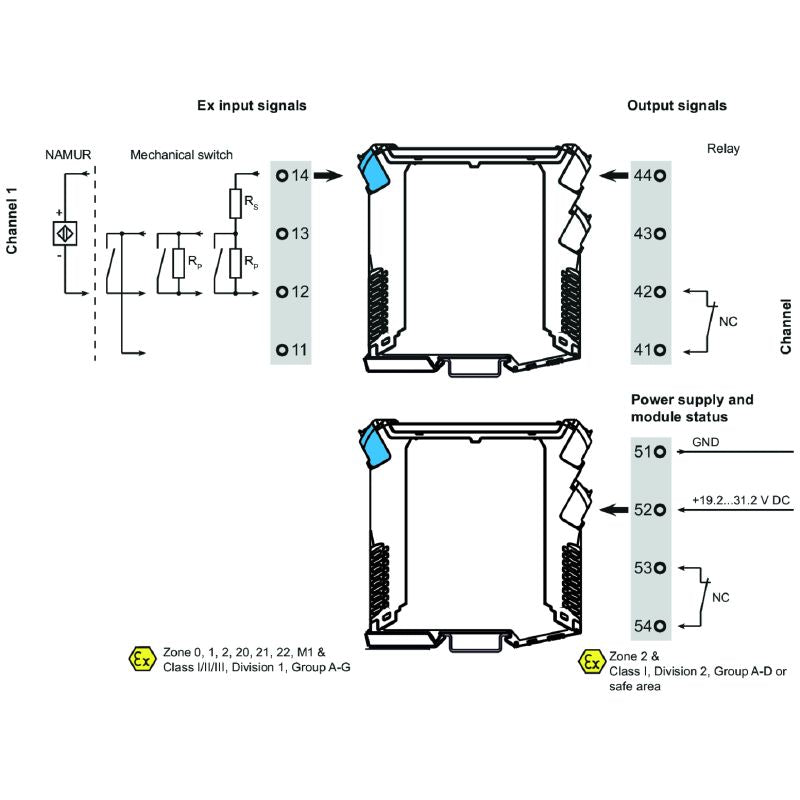

•Designed for use with NAMUR sensors.

•Galvanic isolation from explosive atmospheres.

•Can process signals from potential-free contacts.

•Alarm contact for status/error messages.

•Can be mounted horizontally or vertically on a TS 35 rail.

•Screw connection for easy installation.

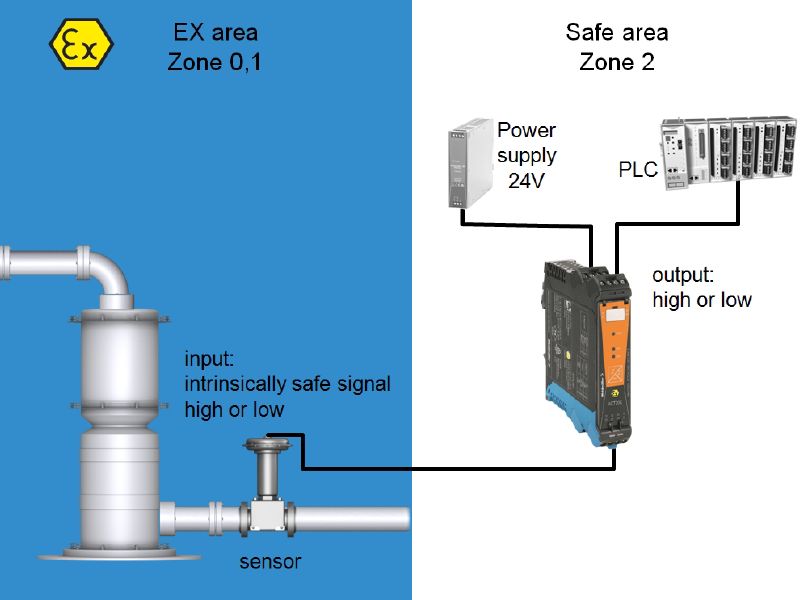

•Isolating NAMUR sensor signals from Ex zones to safe areas.

Specifications:
