7760054308 - RoHS Compliant Device, 89mm x 100mm, 4 Outputs, IP20

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

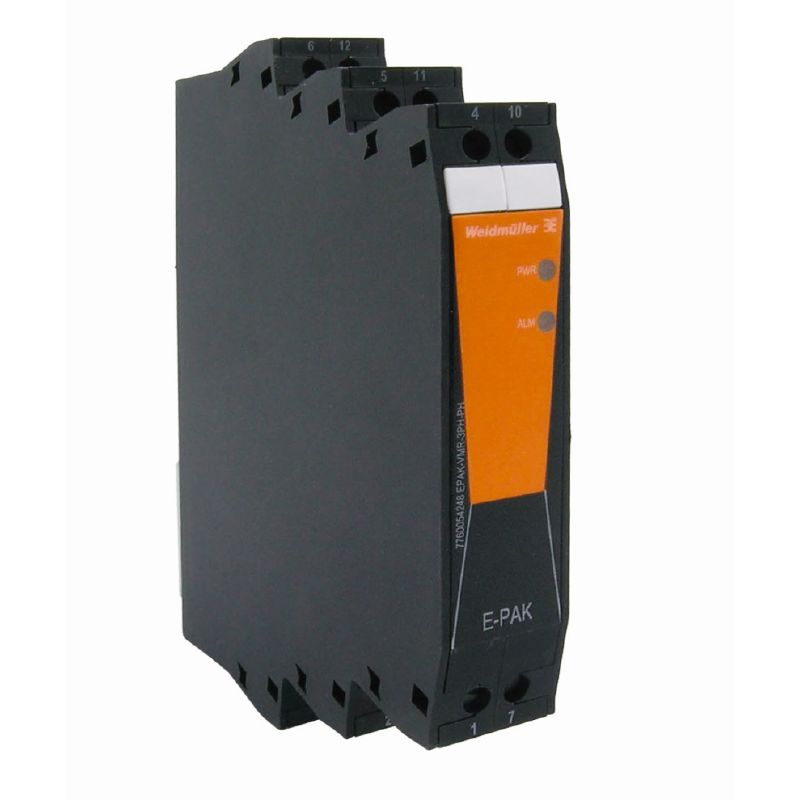

Introducing the EPAK-CI-4CO, a versatile and compliant device ready for various applications It meets RoHS standards and boasts compact dimensions of 89 mm in depth, 100 mm in height, and 175 mm in width, weighing a manageable 80 g This model operates effectively within a temperature range of -20 °C to 60 °C, while it can be stored safely between -40 °C and 85 °C With an input current capacity of 0 to 20 mA and a maximum input resistance of up to 100 Ω, it efficiently accommodates one input to generate an output current of 0 to 20 mA across four separate outputs.

Ensuring high reliability, the unit maintains an accuracy rating of 01% FSR, with nominal power consumption at 17 VA—capping at a maximum of 19 W Designed to operate with a power supply voltage between 20 to 35 V DC, it features a protection class IP20 for added durability Enjoy swift response times with a step response of 500 ms or less, and rest assured knowing that it complies with IEC 61326-1 EMC standards for insulation ratings.

This sophisticated unit is built for dependable performance in a variety of settings.

Features and Benefits:

•RoHS compliant.

•Low power consumption.

•Compact design with varying input and output options.

•Multiple outputs to meet different application needs.

•Protection degree IP20.

Specifications:
