Description:

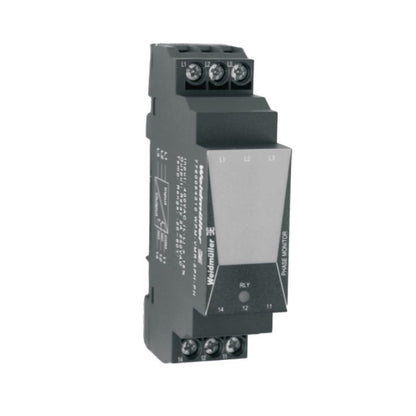

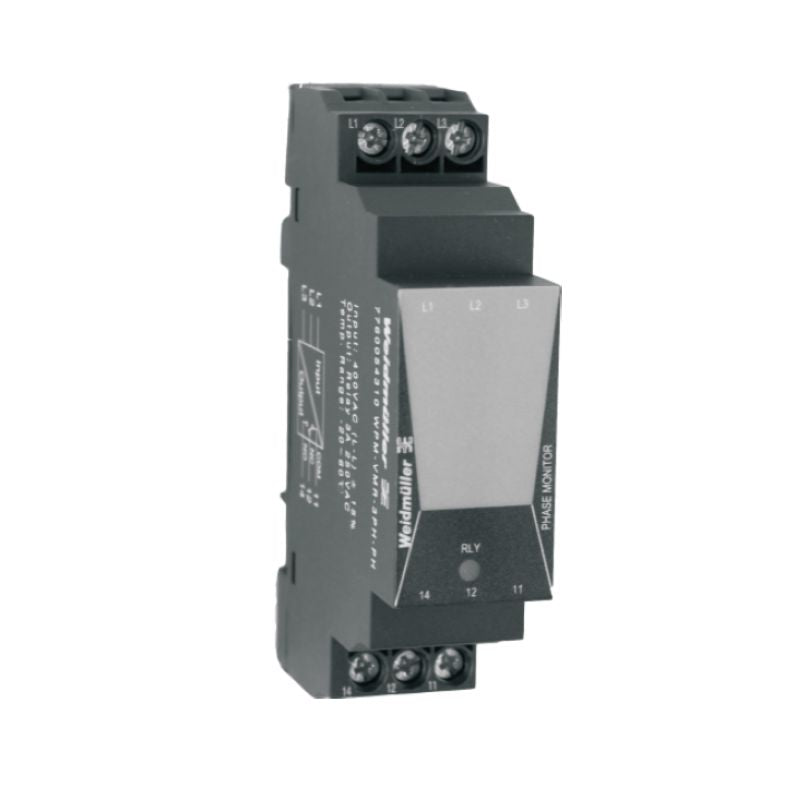

Introducing the WPM-VMR-3PH-PH, a sophisticated electronic device engineered for effective three-phase input management It accommodates an input voltage of 400V AC, allowing for a tolerance of ±15% Crafted to perform in varying temperatures, it functions optimally between -20 °C and 60 °C and can be stored in harsher conditions, from -40 °C up to 85 °C This product adheres to RoHS standards, showcasing its commitment to safety and environmental regulations.

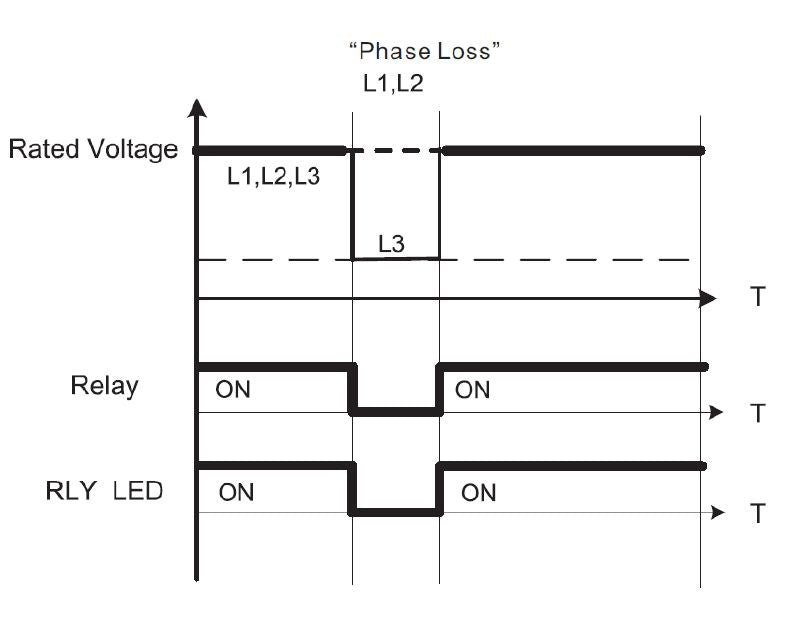

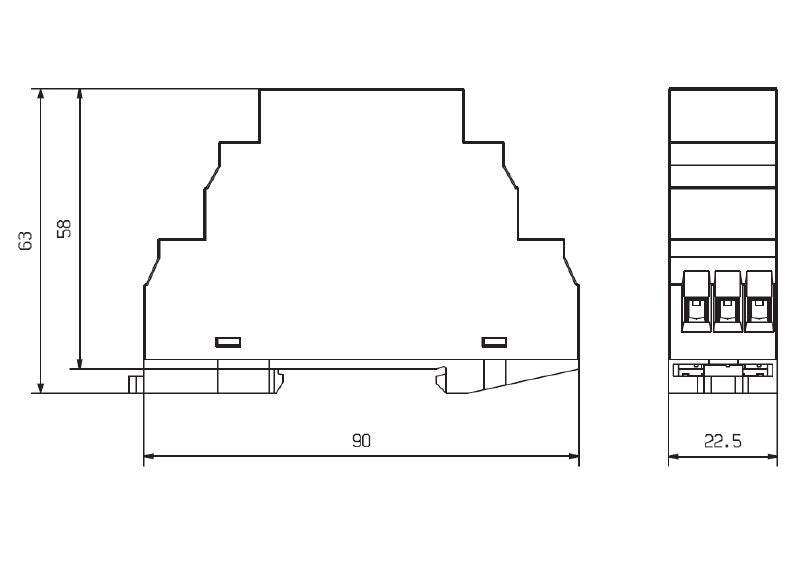

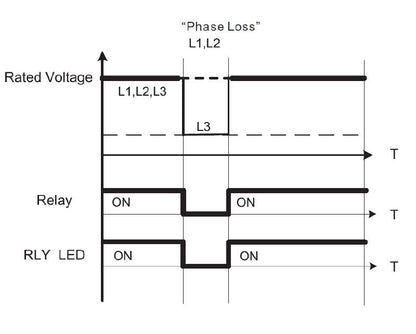

Weighing just 5964 grams, this compact device measures 90 mm in length, 225 mm in width, and 58 mm in depth, making it easy to integrate into different setups Its design includes a screw connection and operates efficiently with a rated switching current of 3 A Additionally, it features phase error alarm outputs for enhanced monitoring capabilities The device supports a maximum AC voltage of 250 V and a DC voltage of 24 V, ensuring reliable performance for various monitoring and control tasks.
Features and Benefits:
•Compliant with RoHS exemption 7cI.
•Configured for use on TS 35 mounting rails.
•IP20 protection degree.
•Galvanic isolation between inputs, outputs, supply, and relay.
•Impulse withstand voltage of 4 kV.
•Operating humidity of 0 to 95% without condensation.
•Fast step response time of ≤ 200 ms.
•Tightening torque between 0.4 Nm and 0.6 Nm.
•Rated for frequencies between 40 to 60 Hz.
Specifications:
| Input frequency | 40…60 Hz |
| Input voltage | 400V AC (L-L) ±15% |
| Number inputs | 1 x three-phase (R, S, T, N) |
| Number of outputs | 1 |
| Max. switching voltage, AC | 250 V |
| Max. switching voltage, DC | 24 V |
| Rated switching current | 3 A |

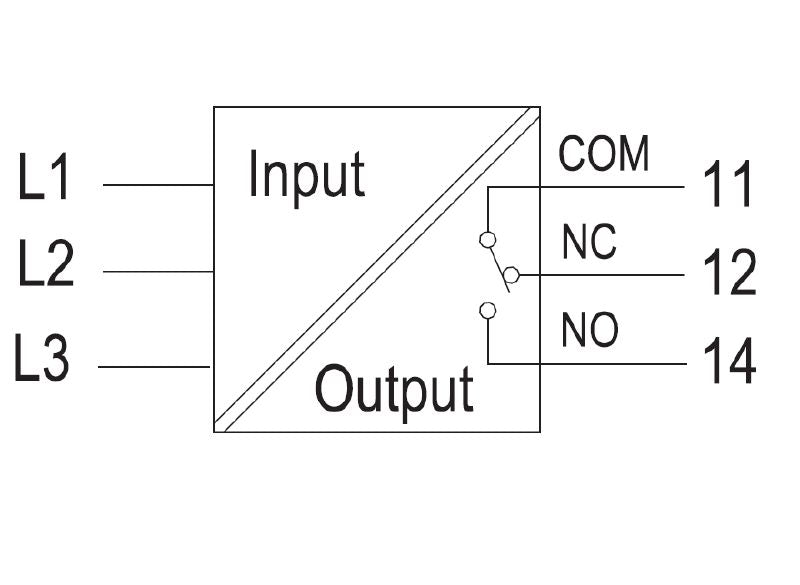

| Type | Relay, 1 CO contact |
| Nominal power consumption | 1.5 VA |
| Power consumption | 2.2 W |
| Temperature coefficient | ≤ 250 ppm/K of measuring range, 350 ppm/K |
| Insulation coordination | EMC standards IEC 61000-6-2, IEC 61000-6-4 |
| Insulation voltage | 2 kV DC / 1 min. |
| Pollution severity | 2 |
| Rated voltage | 300 V |
| Surge voltage category | II |
| Type of connection | Screw connection |
| Clamping range, rated connection | 2 mm² |
| Clamping range, min. | 0.5 mm² |
| Clamping range, max. | 2 mm² |
| Wire connection cross section AWG, min. | AWG 30 |
| Wire connection cross section AWG, max. | AWG 14 |
