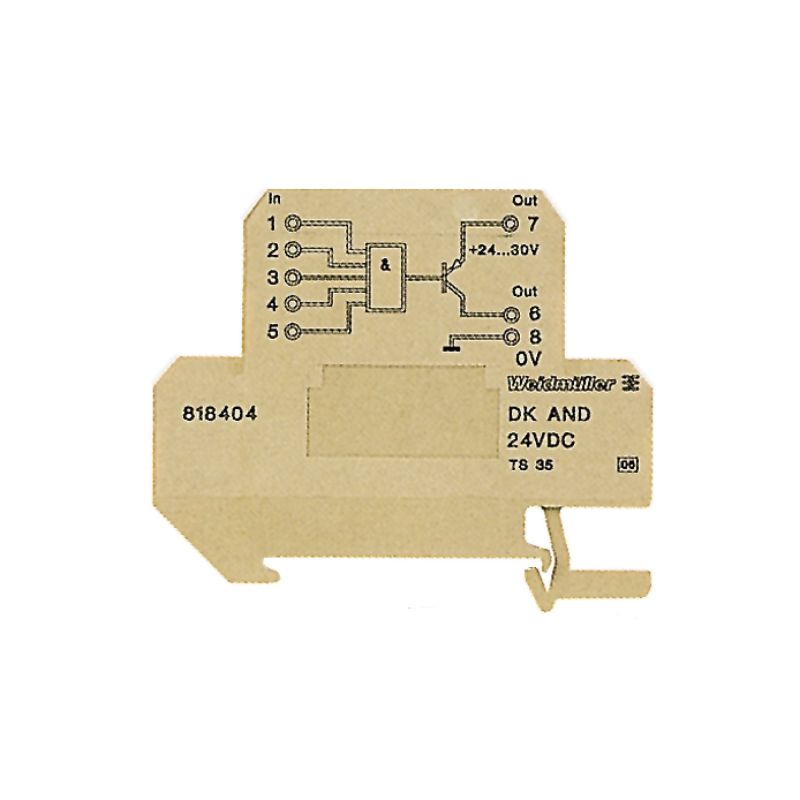

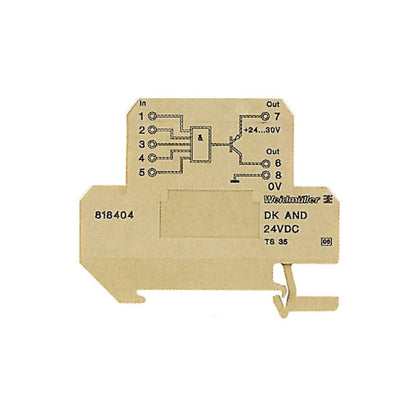

8184040000 - DK AND 35 Logic Gate, 24-30V DC, Low Power Operation (Pack of 5)

SKU: SKU: 8184040000 Download PDF

Select a Variant:

8184040000 - DK AND 35 Logic Gate, 24-30V DC, Low Power Operation (Pack of 5)

SET THE QTY:

Now $430.89 Web pricing policy

~~BEFORE $0.00~~ Now $430.89 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the DK AND 35, a versatile functional component designed to serve as an AND gate for effective logic control This eco-friendly device meets ROHS standards and boasts certifications with exemptions, ensuring safety and compliance Its GTIN is 4008190121938 With a nominal power consumption of just 003 VA, this unit requires a power supply of 24 to 30 V DC and operates efficiently in temperatures ranging from 0 to 50 degrees Celsius.

Mounted securely on a TS 35 rail, it guarantees dependable performance while consuming less than 5 mA of current.

Features and Benefits:

•Logic function is AND.

•Current consumption is less than 5 mA.

•Protection degree is IP20.

•Supplied with screw connection.

•Works within a temperature range of -40 °C to 60 °C for storage.

•Galvanic isolation is not provided.

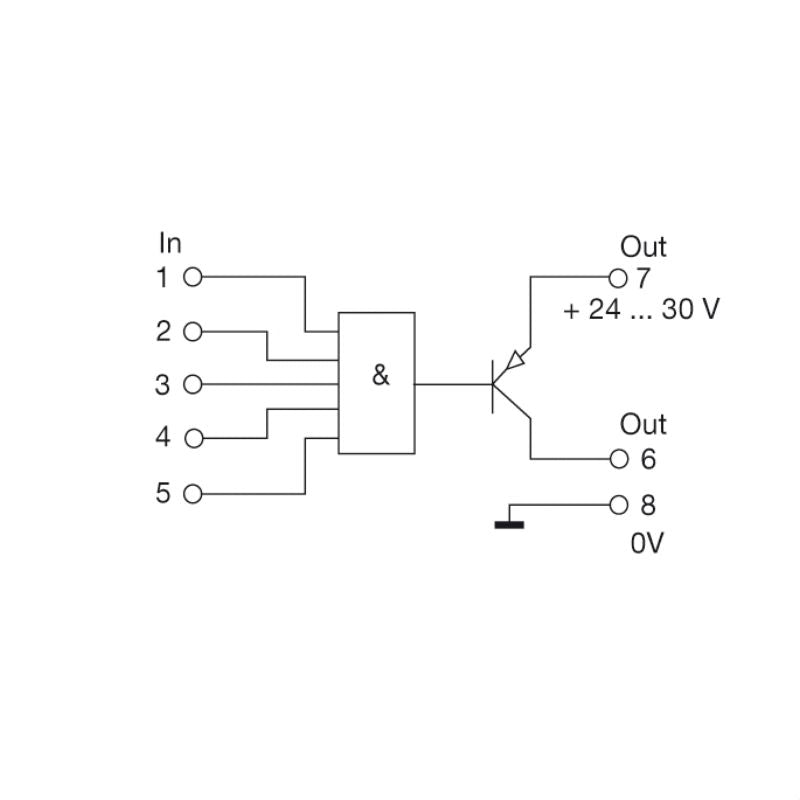

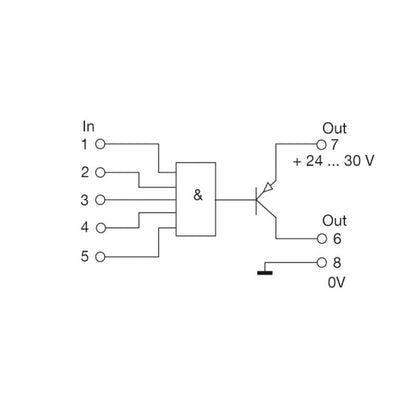

•Has 5 inputs and 8-bit output.

•Logic control applications.

Specifications:

Depth	65 mm
Height	57 mm
Width	12 mm
Net weight	22.2 g
Operating temperature	0 °C to 50 °C
Storage temperature	-40 °C to 60 °C
Supply voltage	24...30 V DC
Input current	Approx. 1.5 mA per input (24 V)
Output current	max. 20 mA
Rated voltage	Max. 30 V
Output level	PNP, Ub-1.8 V
Humidity	40 °C / 93 % rel. humidity, no condensation
