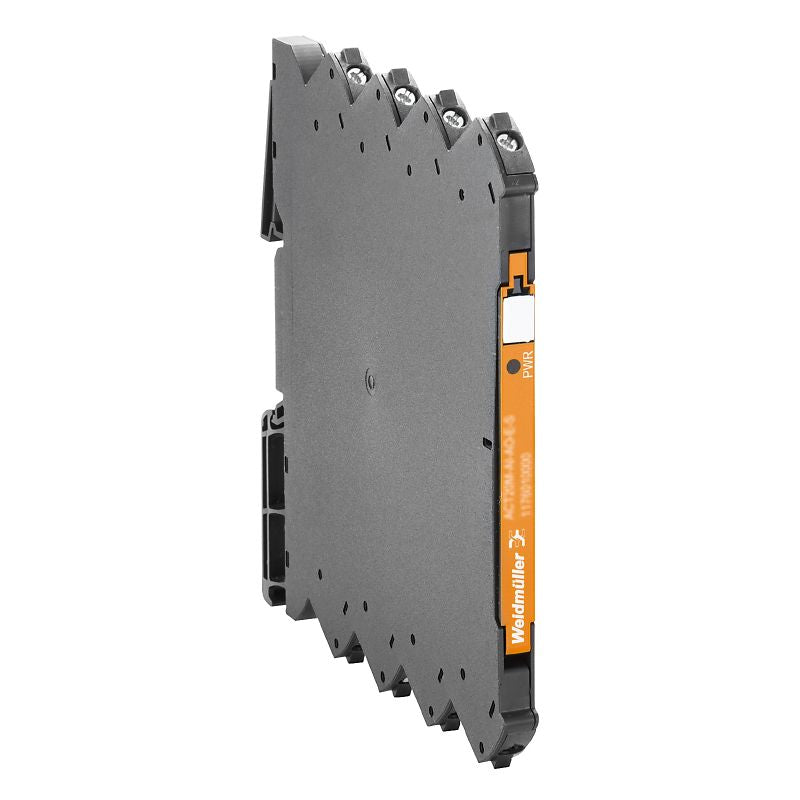

1176000000 - Configurable Analogue Isolating Amplifier with Sensor Supply

Description:

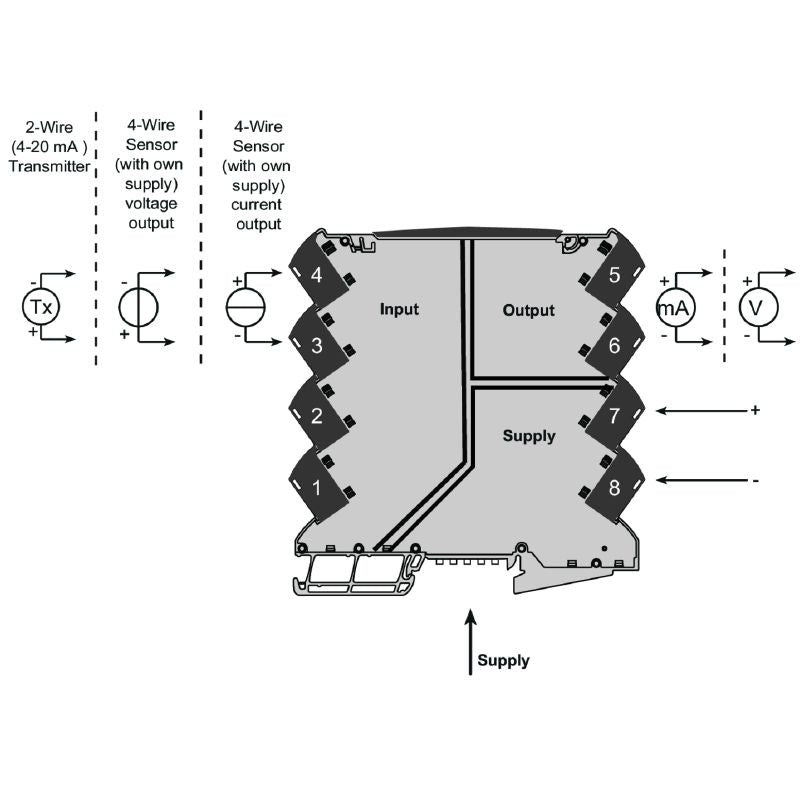

Introducing the ACT20M-AI-AO-S, a versatile analogue isolating amplifier that features integrated sensor supply capabilities This device expertly handles both current and voltage inputs and outputs, facilitating the seamless linear transformation of analogue input signals into analogue output signals while ensuring galvanic isolation The amplifier is equipped for active current loop operations, providing the necessary loop current supply.

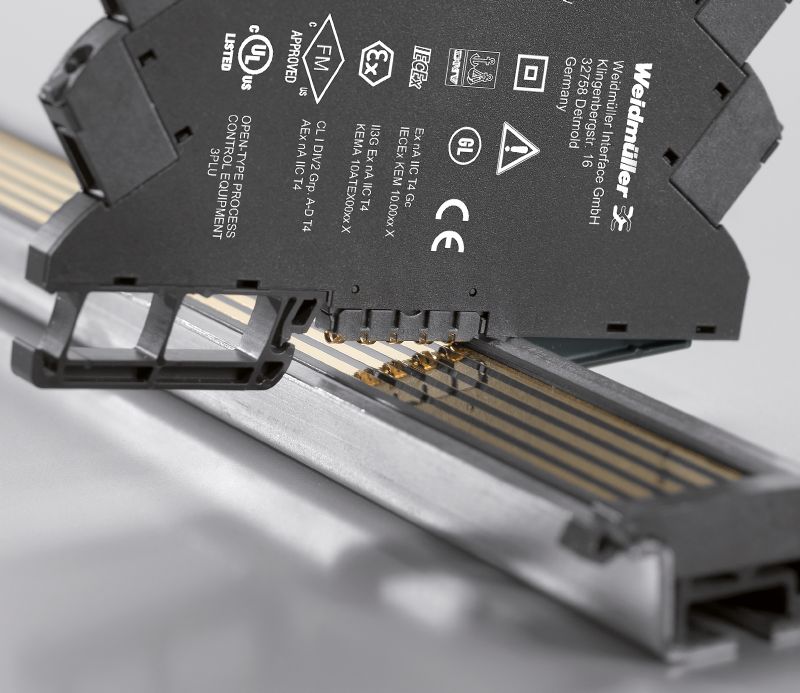

It features robust three-way isolation between the power supply and both the input and output, with connectivity options that include direct wiring or a Weidmüller rail bus connection For those requiring additional functionality, consider the ACT20M-AI-2AO-S variant, which boasts dual galvanically isolated outputs and enhanced four-way isolation for more complex applications.

Features and Benefits:

•Configurable input and output settings.

•Single-channel design.

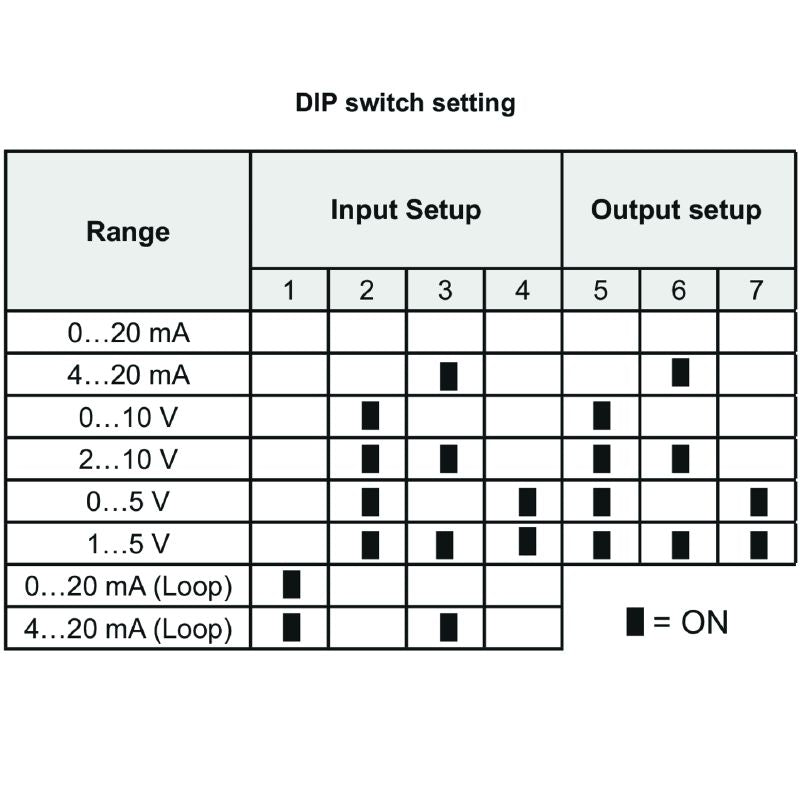

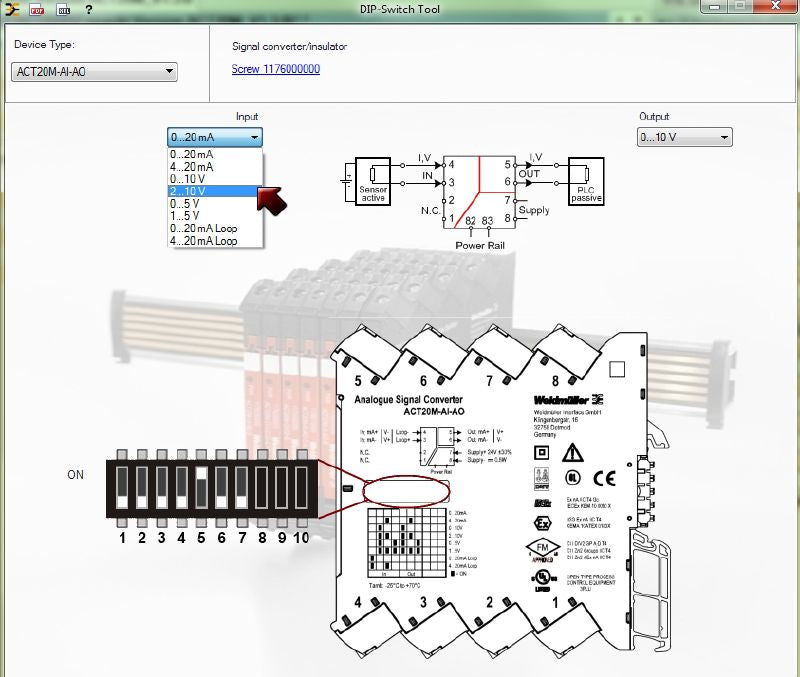

•DIP switch configuration for I/O signals.

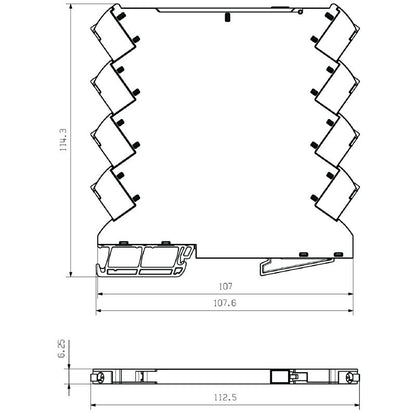

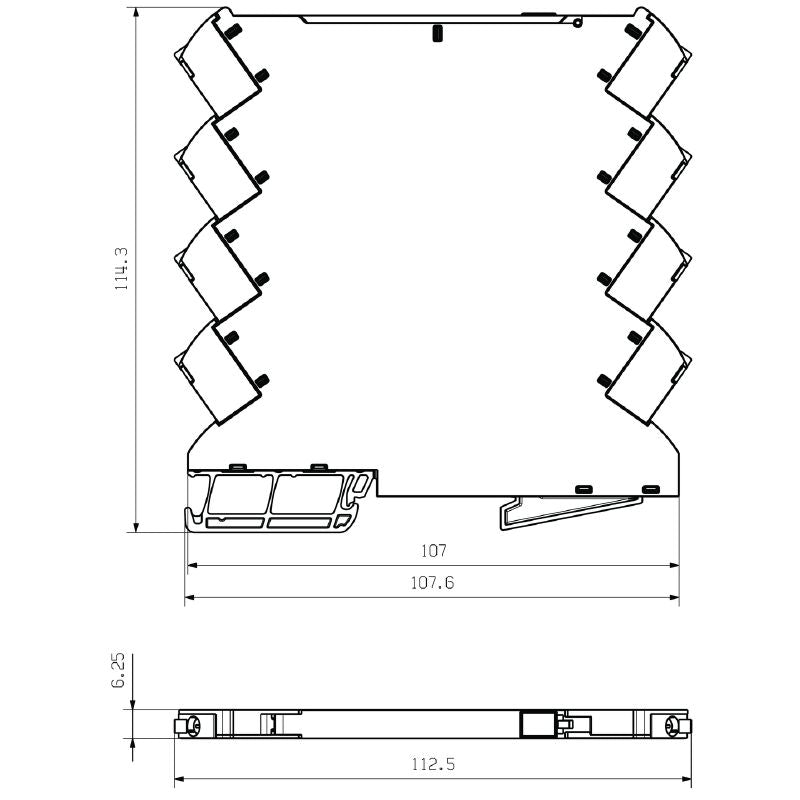

•Compact width of 6.1 mm.

•Designed for TS35 rail mounting.

•Galvanic isolation of input, output, and power supply.

•Used for isolating and converting analogue standard signals in various electrical applications.
