Description:

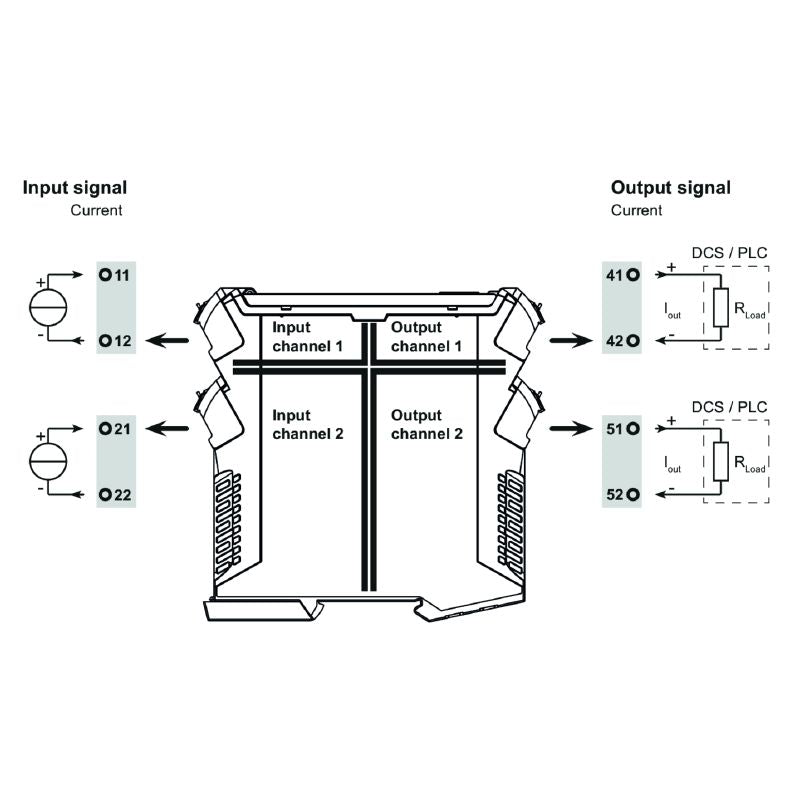

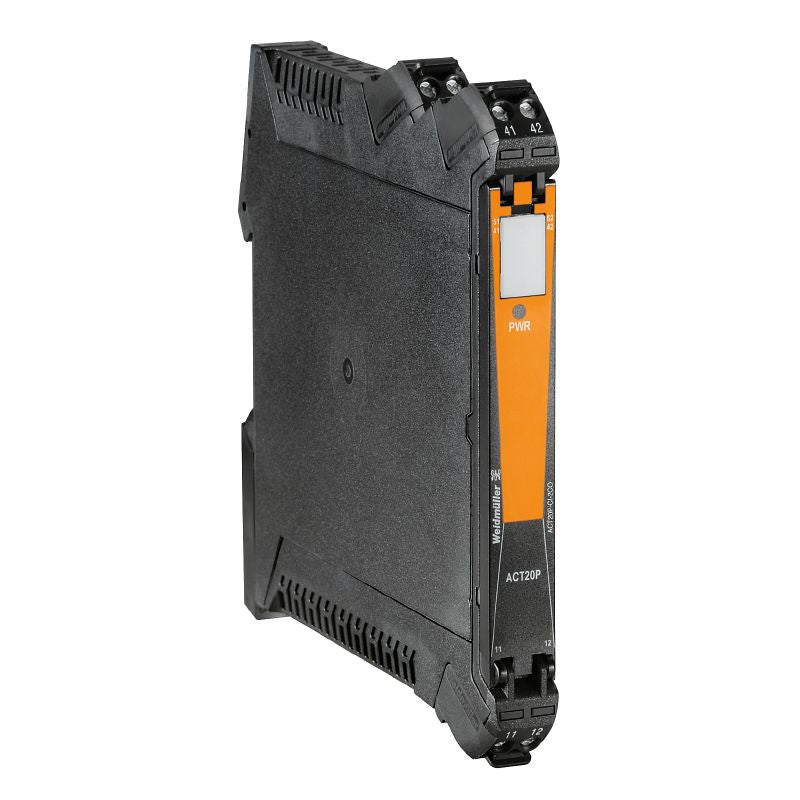

Experience precision with the ACT20P-2CI-2CO-ILP-S dual-channel fixed passive isolator, engineered to effectively isolate analogue standard current source signals This robust device converts analogue current signals into a linear, galvanically isolated analogue output, ensuring reliable performance It conveniently draws power through the input current loop, making it an excellent addition to your setup.

Features and Benefits:

•Galvanic 4-way isolation (dual-channel device) between all inputs and outputs..

Specifications:

Input current	0(4)...20 mA current loop
Number inputs	2
Output current	0…20 mA (if input: 0…20 mA), 4…20 mA (if input: 4…20 mA)
Accuracy	<0.1 % of end value
Mounting rail	TS 35
Protection degree	IP20
Nominal power consumption	2 VA
Operating altitude	≤ 2000 m
Supply voltage	Loop powered, via 4…20 mA input
Impulse withstand voltage	4 kV (1.2/50 µs)
Insulation voltage	2 kV inputs / outputs
Rated voltage	300 V
Connection type	Screw connection
Clamping range, rated connection	2.5 mm²
Current source	Voltage drop, current input ≤ 3.5 V @ I input = 20 mA
