Product Information

Description:

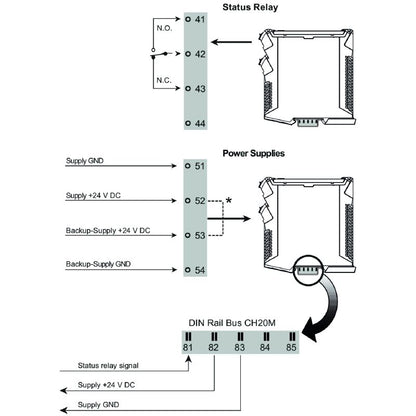

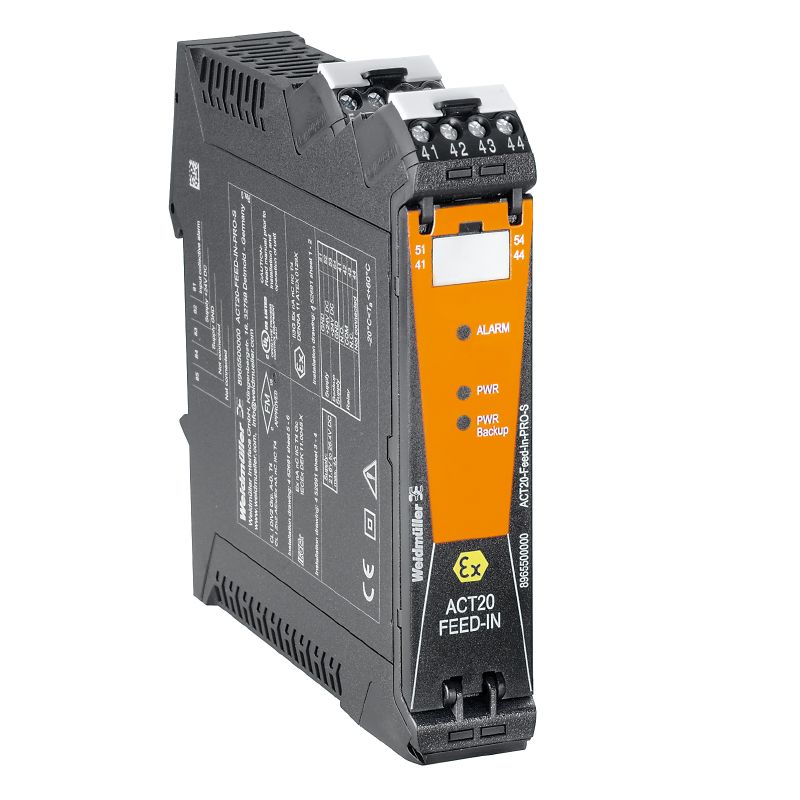

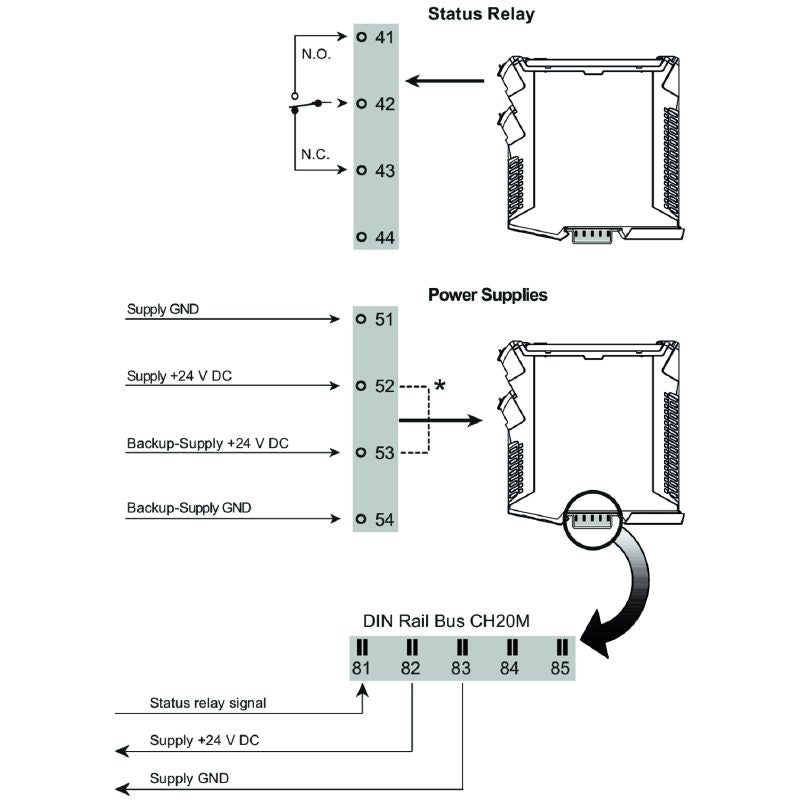

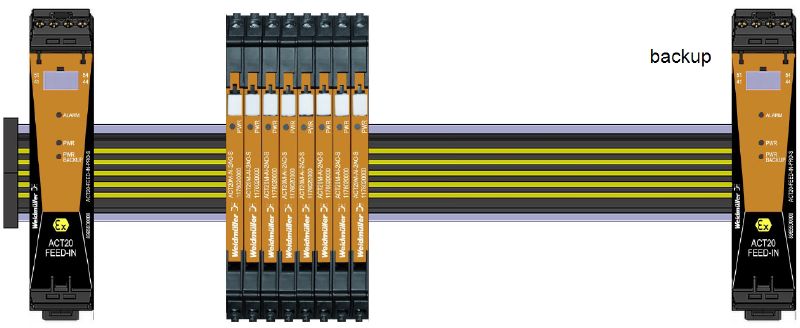

Introducing the ACT20-FEED-IN-PRO-P, a robust supply module designed to efficiently manage and deliver power to a rail bus This unit also provides the option to connect a backup power supply, ensuring reliability in various applications.

Features and Benefits:

    •UL Certified with certificate number E337701.

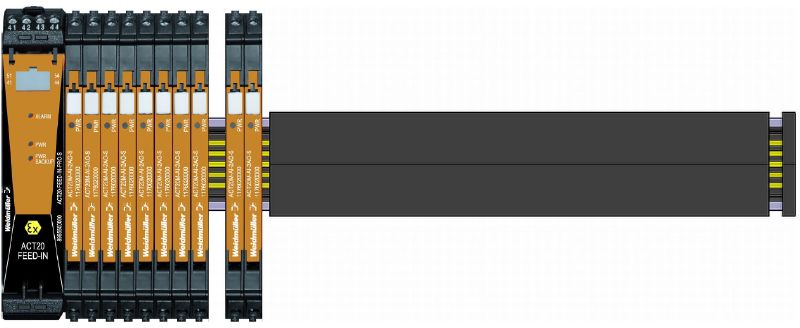

    •Compact design suitable for various rail bus applications.

Specifications:

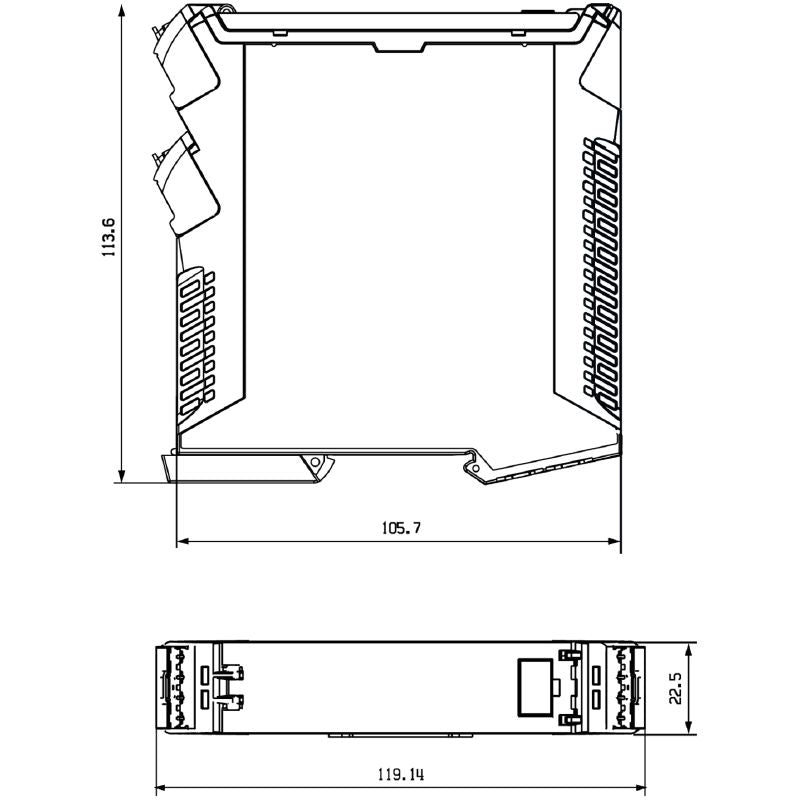

 Depth 113.6 mm
 Height 117.2 mm
 Width 22.5 mm
 Net weight 173 g
 Storage temperature -20 °C to 85 °C
 Ambient temperature -20 °C to 60 °C
 Humidity 40 °C / 95% relative humidity, no condensation
 Input voltage 21.6 to 26.4 V DC
 Max input current 4 A
 Number of inputs 2
 Output voltage 24 V DC
 Output current max. 4 A
 Output power 96 W
 Power consumption <2 W
 Protection degree IP20
 Insulation coordination EMC standards EN 61326-1
 Type of connection Screw connection
 Mounting rail TS 35
 Clamping range, rated connection 2.5 mm²
 Wire connection cross section AWG, min. AWG 26
 Wire connection cross section AWG, max. AWG 14
 Trigger level for the power supply Fault <21 V DC
 Fail output Device error
