Description:

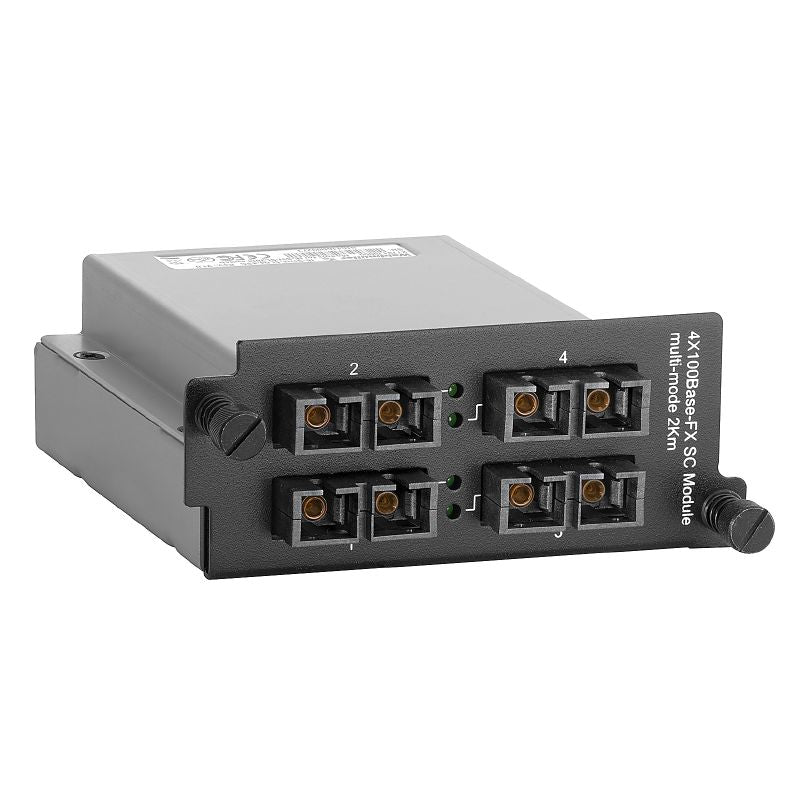

Introducing the IE-SWM-SL04-4SC media interface module, expertly crafted for use with modular switches in Fast Ethernet settings This versatile module is equipped with four SC multi-mode ports and operates efficiently in extreme temperatures, ranging from -40 °C to 85 °C, making it ideal for diverse environmental conditions.
Features and Benefits:
•Compliant with RoHS regulations and has an exemption.
•Supports a transmission rate of 100 MBit/s.
•Multimode fiber optic connection with SC-Duplex type connector.
•Transmission distance of up to 2 km.
•Meets durability standards with an MTBF of 315,658 hours.
Specifications:
| Depth | 107 mm |
| Height | 40.7 mm |
| Width | 99 mm |
| Operating temperature | -40 °C...85 °C |
| Storage temperature | -40 °C...85 °C |
| Humidity | 5 to 95 % (non-condensing) |
| Transmission power min. | -23.5 dBm |
| Transmission power max. | -14 dBm |
| Receive power min. | -31 dBm |
| Receive power max. | 0 dBm |
| Link-budget | 7.5 dB |
| Housing main material | Metal |
| Speed | Fast Ethernet |
| Number of ports | 4x SC Multi-mode |
| Fibre-optic ports | 100BaseFX ports (SC connector) |
| Supply voltage | via Ethernet switch |
