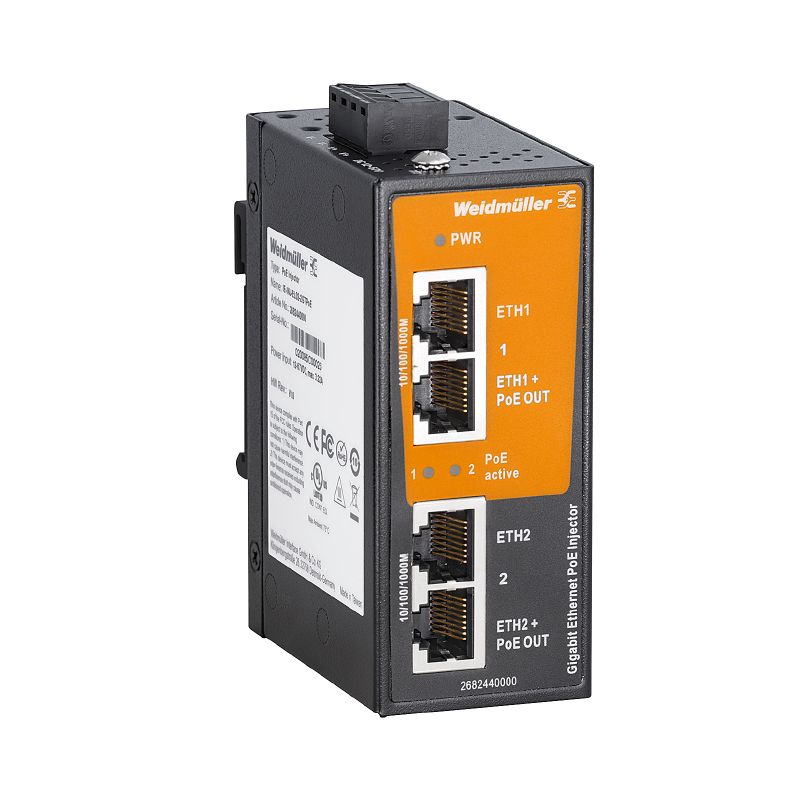

2682440000 - Gigabit PoE Injector, 2x RJ45, -40°C to 75°C
2682440000 - Gigabit PoE Injector, 2x RJ45, -40°C to 75°C
SKU: SKU: 2682440000 Download PDF
- 2682440000 - Gigabit PoE Injector, 2x RJ45, -40°C to 75°C
- 2682440000 - Gigabit PoE Injector, 2x RJ45, -40°C to 75°C
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a Power over Ethernet injector tailored for Gigabit Ethernet applications This device is equipped with two RJ45 ports supporting 10/100/1000BaseT(X) and an additional two RJ45 ports specifically for PoE+ connectivity With a robust operating temperature range of -40 °C to 75 °C, it meets multiple safety and environmental standards, including RoHS and EMC compliance, ensuring reliable performance in various conditions.
Features and Benefits:
•Supports PoE output current standards IEEE 802.3af and IEEE 802.3at.
•Offers a total power budget of 30W under specific voltage conditions.
•Includes overload and reverse polarity protection for enhanced safety.
•Designed for easy mounting on DIN rail.
•Compliant with several EMC standards.
Specifications:
| Depth | 95 mm |
| Height | 70 mm |
| Width | 41 mm |
| Storage temperature | -40 °C to 85 °C |
| Operating temperature | -40 °C to 75 °C |
| Humidity | 5 to 95 % (non-condensing) |
| LED indicator | Power LED: PWR, PoE active |
| Number of ports | 2x RJ45 10/100/1000BaseT(X), 2x RJ45 10/100/1000 BaseT(X) PoE+ |
| MTBF | 3,165,390 hours |
| PoE output current | 350 mA (IEEE 802.3af), 600 mA (IEEE 802.3at) |
| PoE output power | 15.4 W (IEEE 802.3af), 30 W (IEEE 802.3at) |
| Power supply voltage | 12/24/48 V DC |
