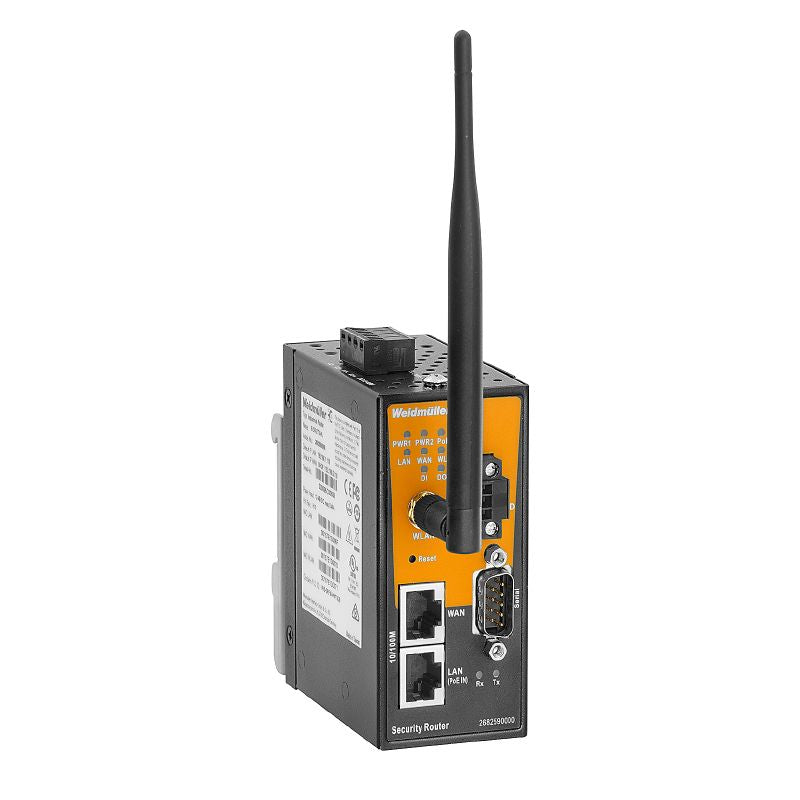

2682590000 - Compact Router with 2 RJ45 Ports, 81mm Depth for Security & VPN
2682590000 - Compact Router with 2 RJ45 Ports, 81mm Depth for Security & VPN
SKU: SKU: 2682590000 Download PDF
- 2682590000 - Compact Router with 2 RJ45 Ports, 81mm Depth for Security & VPN
- 2682590000 - Compact Router with 2 RJ45 Ports, 81mm Depth for Security & VPN
Couldn't load pickup availability
Description:
Introducing the IE-SR-2TX-WL router, expertly crafted for security, NAT, and VPN functionalities This device boasts Fast Ethernet capability through two RJ45 ports supporting 10/100BASE-T, alongside a DB9 male connector for RS-232/422/485 communication Operating efficiently in temperatures ranging from -25 °C to 70 °C, its compact dimensions of 81 mm (D) x 45 mm (W) x 95 mm (H) and lightweight design at 411 g make it a versatile choice for various applications.
Features and Benefits:
•Supports various environmental conditions with a humidity tolerance of 5 to 95% (non-condensing).
•Equipped with overload and reverse polarity protection.
•Multiple operating modes including WLAN Access Point and Virtual COM mode.
•MTBF according to Telcordia SR-332 with a minimum operational time of 381,084 hours.
•Din rail and wall mounting options.
•Ideal for integrating security and network services within industrial environments.
•Suitable for remote management and configuration through web interfaces and SNMP.
Specifications:
| Depth: | 81 mm |
| Height: | 95 mm |
| Width: | 45 mm |
| Net weight: | 411 g |
| Operating temperature: | -25 °C to 70 °C |
| Storage temperature: | -40 °C to 85 °C |
| Voltage supply range: | 10.8 V to 52.8 V DC |
| Protection degree: | IP30 |
| Type of mounting: | DIN rail or Wall mounting |
| Housing main material: | Metal |
| Environmental conditions: | Humidity 5 to 95 % (non-condensing) |
| Safety standard: | SELV according to EN 62368-1 |
