1491180000 - 2m Antenna Cable N Male to SMA Male Connector
1491180000 - 2m Antenna Cable N Male to SMA Male Connector
SKU: SKU: 1491180000 Download PDF
- 1491180000 - 2m Antenna Cable N Male to SMA Male Connector
- 1491180000 - 2m Antenna Cable N Male to SMA Male Connector
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

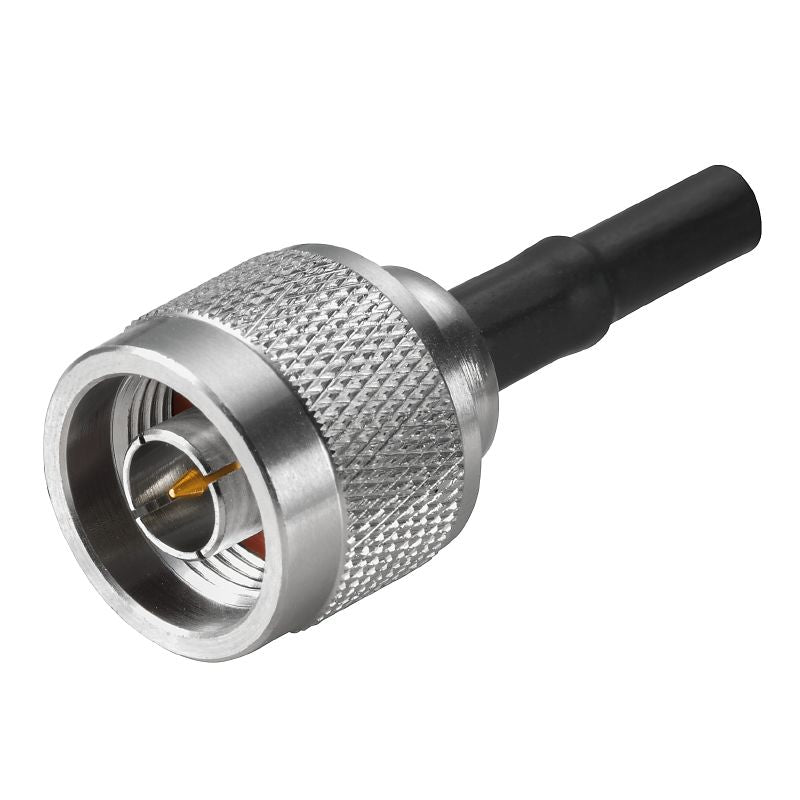

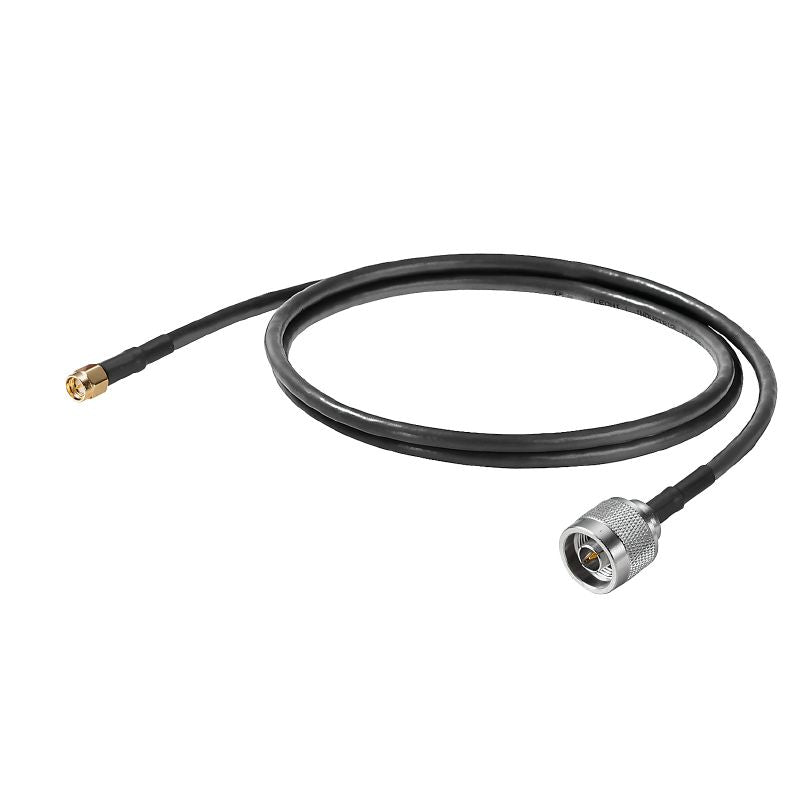

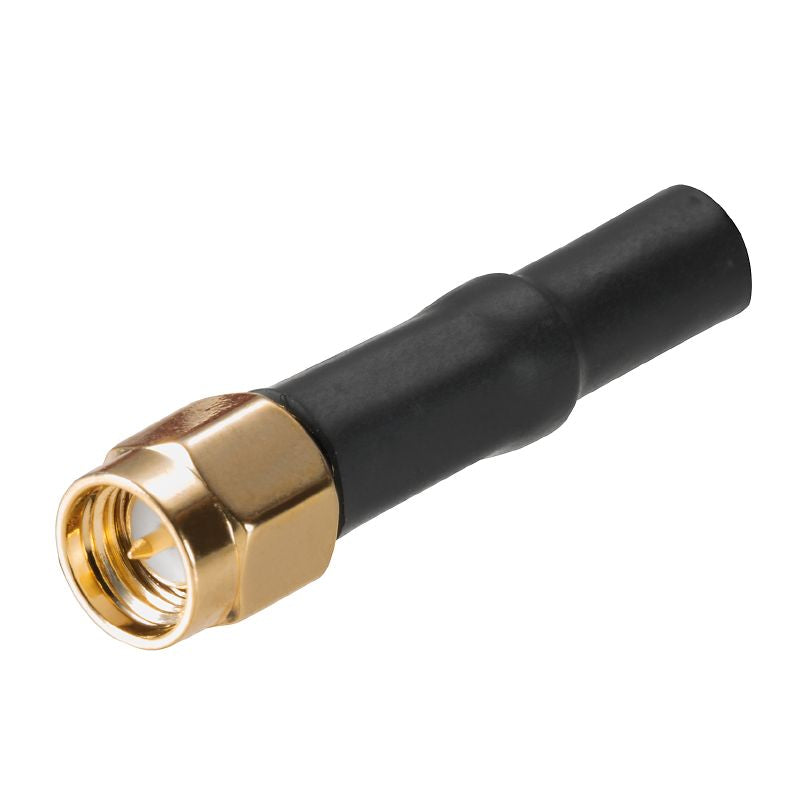

Introducing a versatile antenna cable, expertly designed with an N male connector on one end and an SMA male connector on the other Spanning 2 meters in length, this cable operates efficiently across a diverse temperature range and adheres to RoHS regulations Its construction from high-quality polyethylene enhances performance, boasting an attenuation of about 05 dB/m at 2000 MHz and roughly 031 dB/m at 800 MHz, while maintaining a characteristic impedance of 50 Ω.
Perfect for your antenna needs, this cable combines reliability with exceptional functionality.
Features and Benefits:
•UV-resistant.
•Min. bending radius, once only: 12.7 mm.
•Min. bending radius, repetitive: 50.8 mm.
Specifications:
| Length | 2 m |
| Length (inches) | 78.74 inch |
| Storage temperature | -70 °C...85 °C |
| Operating temperature | -40 °C...85 °C |
| Attenuation at 2000 MHz | approx. 0.5 dB/m |
| Attenuation at 800 MHz | approx. 0.31 dB/m |
| Characteristic impedance | 50 Ω |
| Material sheath | Polyethylene |
| Sheath diameter | 4.95 mm |
| RoHS Compliance Status | Compliant |
| REACH SVHC | Lead 7439-92-1 |
| Classifications | {'ETIM 6.0': 'EC001682', 'ETIM 7.0': 'EC001682', 'ETIM 8.0': 'EC001682', 'ETIM 9.0': 'EC001682', 'ETIM 10.0': 'EC001682', 'ECLASS 9.0': '27-06-03-10', 'ECLASS 9.1': '27-06-03-10', 'ECLASS 10.0': '27-06-03-10', 'ECLASS 11.0': '27-06-03-10', 'ECLASS 12.0': '27-06-03-10', 'ECLASS 13.0': '27-06-03-10', 'ECLASS 14.0': '27-06-03-10', 'ECLASS 15.0': '27-06-03-10'} |
