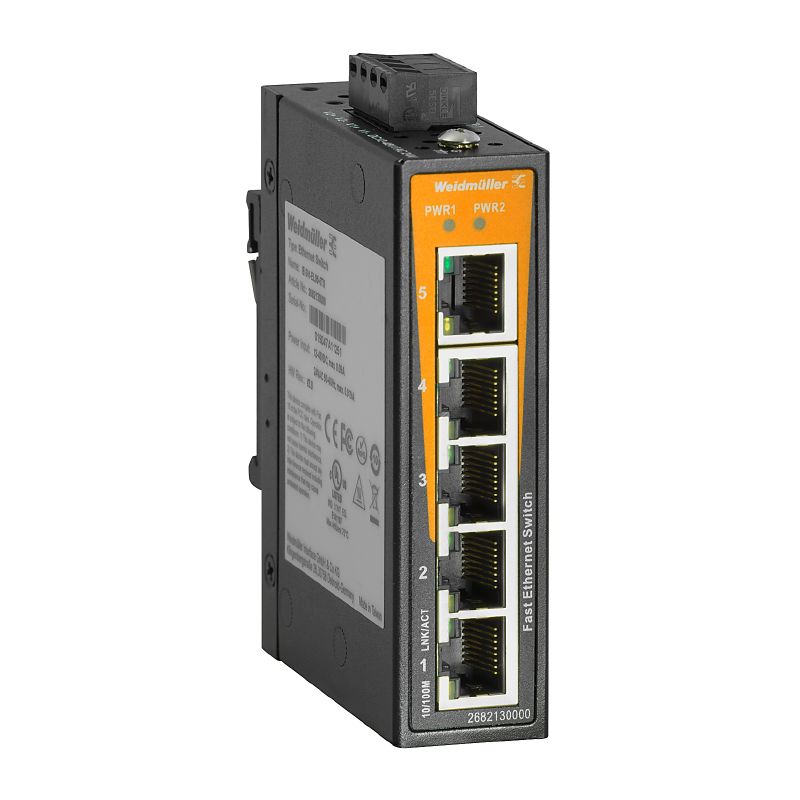

2682130000 - Fast Ethernet Network Switch with 5 Ports, -40°C to 75°C
2682130000 - Fast Ethernet Network Switch with 5 Ports, -40°C to 75°C
SKU: SKU: 2682130000 Download PDF
- 2682130000 - Fast Ethernet Network Switch with 5 Ports, -40°C to 75°C
- 2682130000 - Fast Ethernet Network Switch with 5 Ports, -40°C to 75°C
Couldn't load pickup availability
Description:
Introducing the IE-SW-EL05-5TX unmanaged network switch, expertly engineered for seamless Fast Ethernet connectivity This device boasts five RJ45 ports and operates flawlessly in extreme temperature conditions, ranging from -40 °C to 75 °C It meets RoHS regulations and is certified with a cULus approval (E141197) Additionally, this switch can endure storage temperatures of -40 °C to 85 °C and is designed to perform in humidity levels varying from 5% to 95%, non-condensing, making it a reliable choice for various environments.
Features and Benefits:
•Fast Ethernet connectivity.
•5 RJ45 ports for network connection.
•Wide operating temperature range of -40 °C to 75 °C.
•Meets RoHS compliance standards.
•Compact dimensions suitable for installation.
Specifications:
| Dimensions | {'Depth': '70 mm', 'Height': '95 mm', 'Width': '26.1 mm'} |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...75 °C |
| Humidity | 5 to 95 % (non-condensing) |
| Power supply | {'Connection type': '1 removable 4-pin terminal block', 'Voltage consumption': {'Voltage': '24 V', 'Current': '0.1 A'}, 'Redundant inputs': '2', 'Supply voltage': '12/24/48 V DC, 24 V AC'} |
| Switch characteristics | {'Bandwidth backplane': '1 Gbit/s', 'MAC table size': '1 K', 'Packet buffer size': '448 kBit'} |
| Housing main material | Metal |
| Protection degree | IP30 |
| Type of mounting | DIN rail |
| Technology | Data switching, Store and Forward |
| Flow control | IEEE 802.3x flow control |
