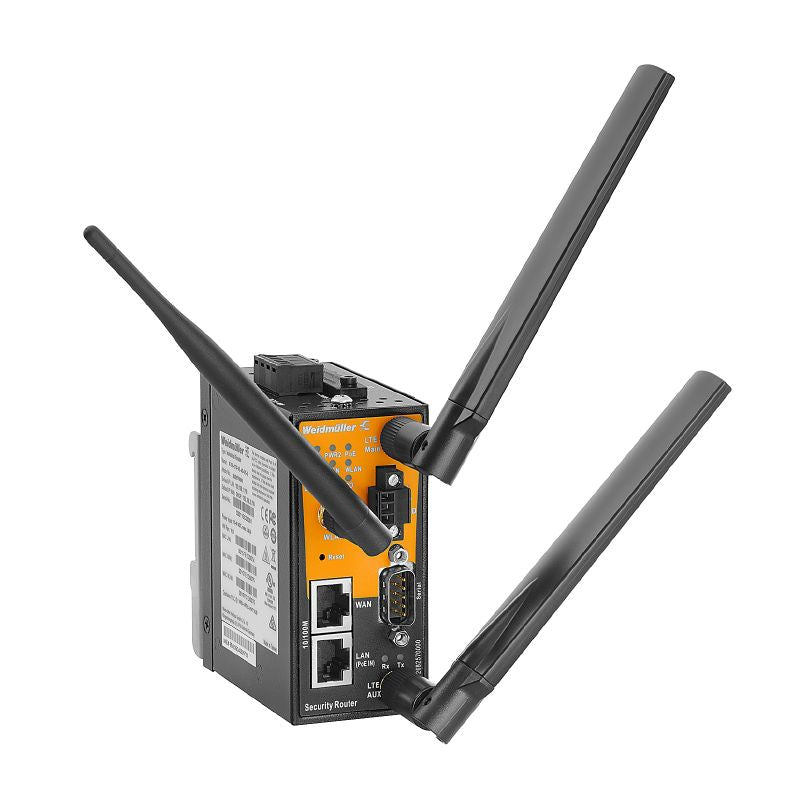

2682580000 - Multi-Band 4G Router with Ethernet Ports and IP30 Rating
2682580000 - Multi-Band 4G Router with Ethernet Ports and IP30 Rating
SKU: SKU: 2682580000 Download PDF
- 2682580000 - Multi-Band 4G Router with Ethernet Ports and IP30 Rating
- 2682580000 - Multi-Band 4G Router with Ethernet Ports and IP30 Rating
Couldn't load pickup availability

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the advanced Security/NAT/VPN/U-link Router, equipped with a built-in multi-band modem that facilitates both 4G and 3G connectivity This US model boasts Fast Ethernet support, featuring two RJ45 ports for seamless 10/100BASE-T(X) connections as well as a DB9 male connector for RS-232/422/485 communication Designed to perform reliably in challenging environments, it operates effectively within a temperature range of -25 °C to 70 °C and is protected by an IP30 enclosure rating, ensuring longevity and durability.
Features and Benefits:
•Integrated multi-band modem for versatile connectivity.
•Compact design with dimensions 81 mm depth, 95 mm height, and 45 mm width.
•Lightweight at 437 g.
•Supports a wide temperature range for flexible deployment.
•Multiple digital outputs and inputs for enhanced functionality.
•Compliant with various EMC and safety standards.
Specifications:
| Operating temperature | -25 °C to 70 °C |
| Storage temperature | -40 °C to 85 °C |
| Humidity | 5 to 95 % (non-condensing) |
| Cable Operator Certification | Link to verizon open development certification |
| Max download rate | 150 Mbit/s |
| Max upload rate | 50 Mbit/s |
| Power supply | 12/24/48 V DC with redundant inputs |
| Housing main material | Metal |
| Protection degree | IP30 |
| Mounting type | DIN rail and wall mounting |
