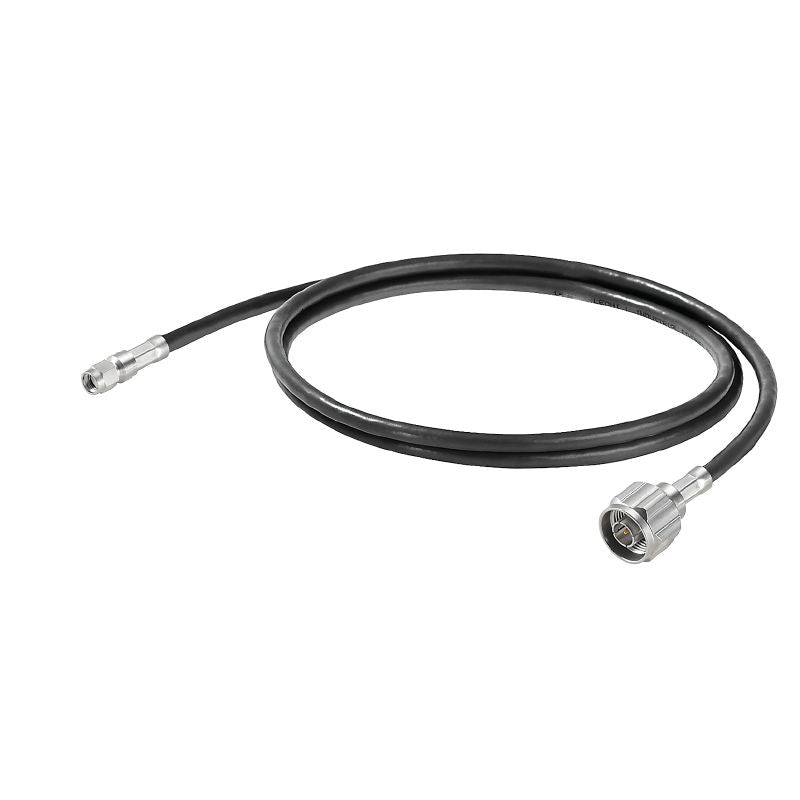

1367110000 - High-Frequency 2m Antenna Cable with N and RP-SMA Connectors
1367110000 - High-Frequency 2m Antenna Cable with N and RP-SMA Connectors
SKU: SKU: 1367110000 Download PDF
- 1367110000 - High-Frequency 2m Antenna Cable with N and RP-SMA Connectors
- 1367110000 - High-Frequency 2m Antenna Cable with N and RP-SMA Connectors
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Enhance your connectivity with this premium 2-meter antenna cable One end features an N male connector, while the other is equipped with an RP-SMA male connector Certified for compliance with RoHS standards, this cable is also halogen-free, adhering to IEC 60754 regulations, making it environmentally friendly It operates smoothly in temperatures ranging from -40 °C to 85 °C, making it suitable for various high-frequency applications.
Expect outstanding signal quality and minimal attenuation with this reliable cable.
Features and Benefits:
•Halogen-free according to IEC 60754.
•Black sheath color similar to RAL 9005.
•UV-resistant.
Specifications:
| Length | 2 m |
| Attenuation at 2.4 GHz | approx. 0.55 dB/m |
| Attenuation at 5 GHz | approx. 0.87 dB/m |
| Characteristic impedance | 50 Ohm ± 2 |
| Max. operating frequency | 6 GHz |
| Signal propagation time | 4.08 ns/m |
| Min. bending radius, once only | 28 mm |
| Min. bending radius, repetitive | 58 mm (for max. 50 bending cycles) |
| Sheath diameter | 5.7 mm |
| Operating temperature | -40 °C to 85 °C |
| Environmental compliance | RoHS compliant |
| Material sheath | LSFH (modified polyethylene) |
