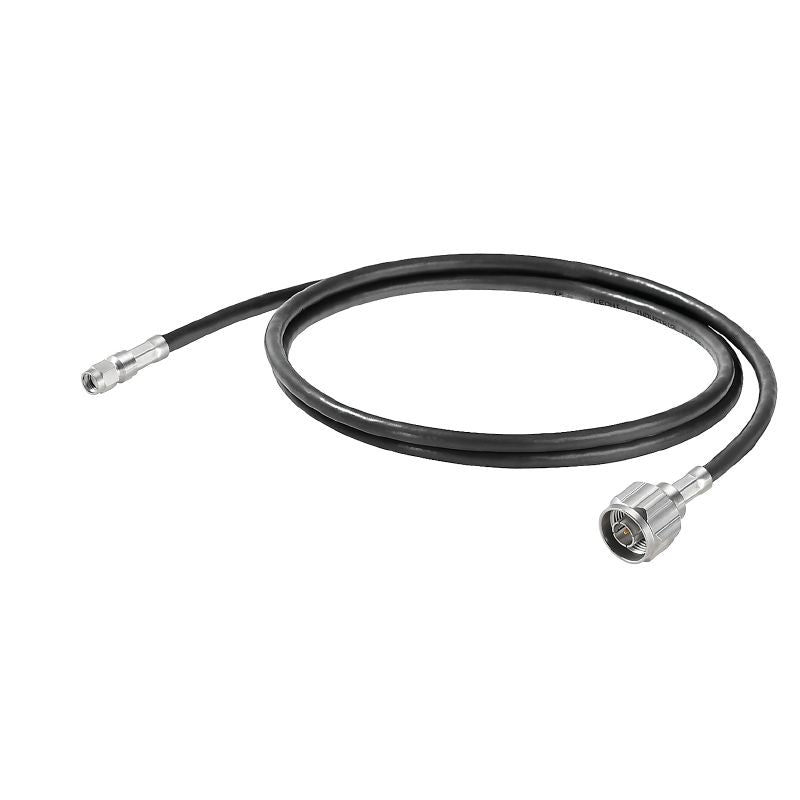

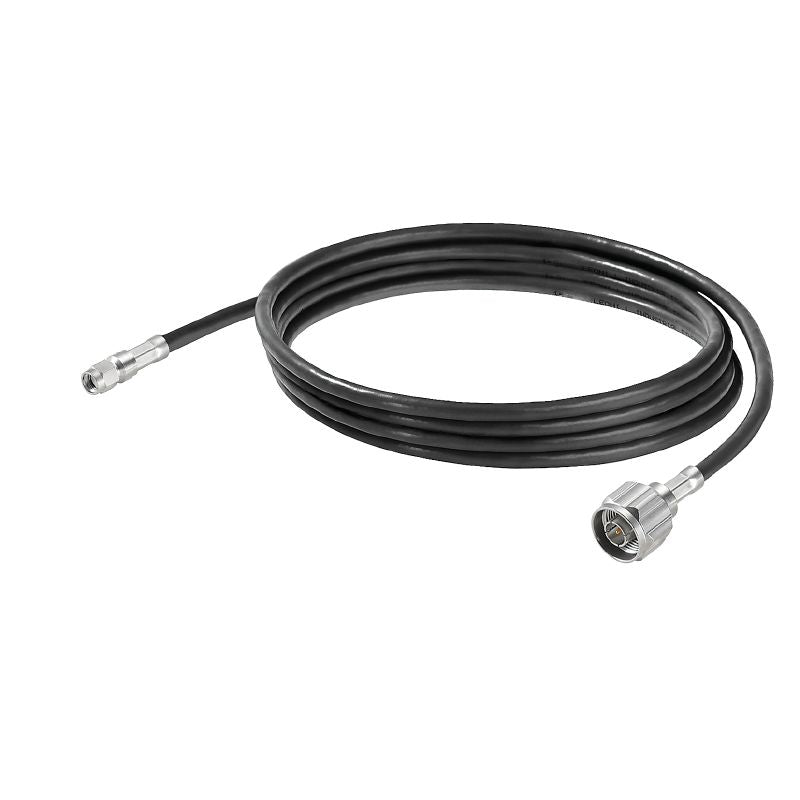

1367100000 - 4m N Male to RP-SMA Antenna Cable, RoHS Compliant
1367100000 - 4m N Male to RP-SMA Antenna Cable, RoHS Compliant
SKU: SKU: 1367100000 Download PDF
- 1367100000 - 4m N Male to RP-SMA Antenna Cable, RoHS Compliant
- 1367100000 - 4m N Male to RP-SMA Antenna Cable, RoHS Compliant
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Experience exceptional connectivity with this specialized antenna cable, featuring an N male connector on one end and an RP-SMA male connector on the opposite side At a generous length of 4 meters, it's perfect for a variety of uses Built to meet RoHS standards, this cable boasts outstanding electrical performance and operates effectively in temperatures ranging from -40 °C to 85 °C, ensuring reliability even in extreme environments.
Its durable design is complemented by dimensions and weight that enhance its longevity, making it a smart choice for your connectivity needs.
Features and Benefits:
•RoHS compliant.
•Halogen-free according to IEC 60754.
•UV-resistant.
•Modified polyethylene sheath.
•Excellent signal attenuation properties.
Specifications:
| Length | 4 m |
| Attenuation at 2.4 GHz | approx. 0.55 dB/m |
| Attenuation at 5 GHz | approx. 0.87 dB/m |
| Characteristic impedance | 50 Ohm +- 2 |
| Max. operating frequency | 6 GHz |
| Signal propagation time | 4.08 ns/m |
| Min. bending radius, once only | 28 mm |
| Min. bending radius, repetitive | 58 mm (for max. 50 bending cycles) |
| Sheath diameter | 5.7 mm |
| Operating temperature max | 85 °C |
| Operating temperature min | -40 °C |
