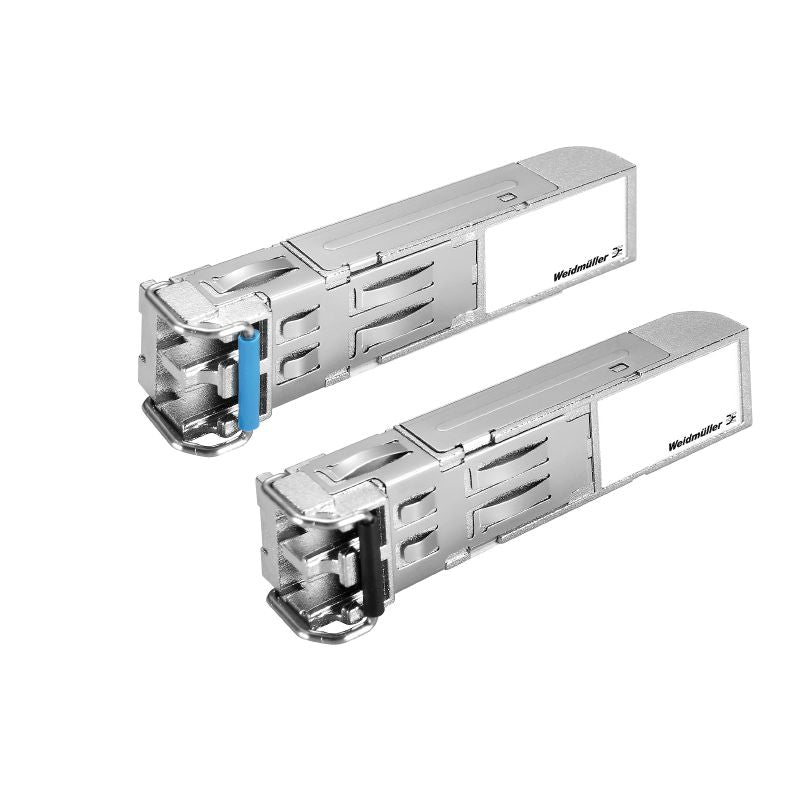

1241510000 - 1000 Mbps SFP Singlemode Transceiver, 10 km Range
1241510000 - 1000 Mbps SFP Singlemode Transceiver, 10 km Range
SKU: SKU: 1241510000 Download PDF
- 1241510000 - 1000 Mbps SFP Singlemode Transceiver, 10 km Range
- 1241510000 - 1000 Mbps SFP Singlemode Transceiver, 10 km Range
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a high-performance SFP transceiver designed for singlemode fiber optics, boasting an impressive data rate of 1000 Mbps Equipped with an LC-Duplex connector, this module can transmit data over a remarkable distance of up to 10 km It operates efficiently within a temperature range of 0 °C to 60 °C and adheres to RoHS regulations for environmental safety Weighing in at just 35 grams, this transceiver also features a digital diagnostic monitoring function, ensuring optimal performance and reliability.
Features and Benefits:
•Supports a transmission rate of 1000 Mbps.
•Digital diagnostic monitor function is supported.
•Operating temperature range from 0 °C to 60 °C.
•Storage temperature range from -40 °C to 85 °C.
•Connector type is LC-Duplex.
Specifications:
| Transmission distance, typ. | 10 km |
| Wavelength (TX min.) | 1280 nm |
| Wavelength (TX max.) | 1355 nm |
| Wavelength (RX min.) | 1260 nm |
| Wavelength (RX max.) | 1610 nm |
| Receive power (min.) | -21 dBm |
| Receive power (max.) | -3 dBm |
| Transmission power (min.) | -9 dBm |
| Transmission power (max.) | -3 dBm |
| Link-budget | 12 dB |
| Ethernet ports | 1 |
| Supply voltage | 3.3 V |
| Type of mounting | Insert in SFP slot |
| RoHS Compliance Status | Compliant with exemption |
| Humidity | 5 to 95 % (non-condensing) |
| EMC standards | EN 55032, EN 55035 |
| Safety standard | UL 62368-1, EN 62368-1, EN 60825-1 |
