Description:

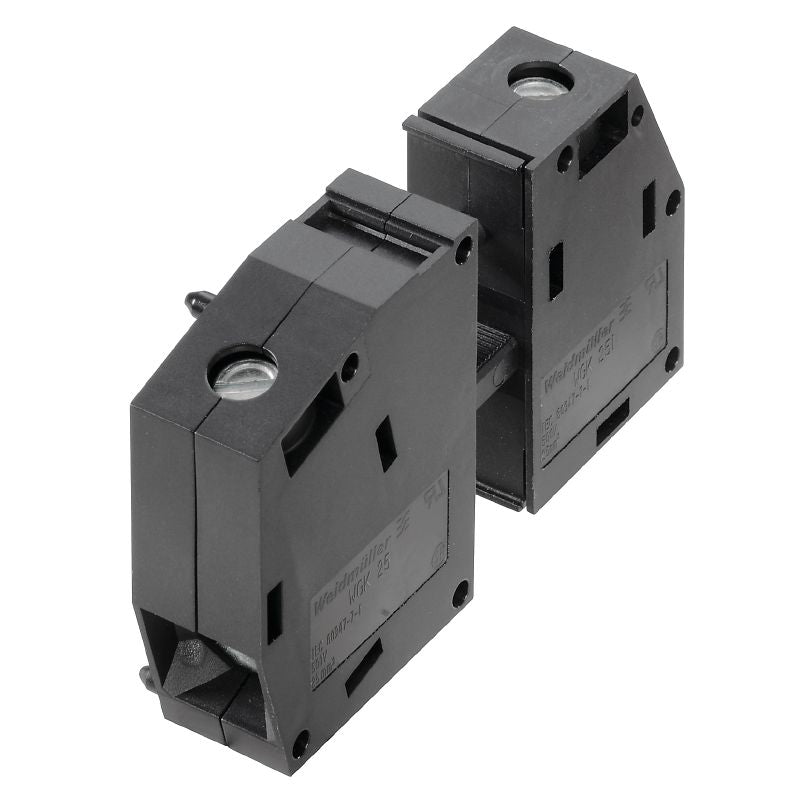

Introducing the WGK 25/Z TXSC GY BX feed-through terminal from the OMNIMATE Power series, designed to provide reliable electrical connectivity With a rated cross-section of 25 mm², this terminal is made of durable Wemid (PA) material It adheres to stringent electrical standards, boasting ratings of 690 V and 101 A according to IEC, as well as 600 V and 100 A per UL criteria
Each box contains 50 terminals, ensuring you have plenty on hand for your projects.
This component is fully compliant with RoHS and contains no REACH SVHC substances exceeding 01 wt% The screw connection method features a 180-degree conductor outlet, making it versatile for individual installation For optimal use, a screwdriver with a blade size of 12 x 65 is required, and the recommended tightening torque ranges from 4 Nm to 45 Nm.
Features and Benefits:
•Insulating material is Wemid (PA).
•Compliant with environmental standards.
•Wire connection method using screw connection.
•Touch-safe protection according to DIN VDE 0470 with protection degree IP 20.
•UL 94 flammability rating of V-0.
Specifications:
| Rated cross-section: | 25 mm² |
| IEC Rated voltage: | 690 V |
| IEC Rated current: | 101 A |
| UL Rated voltage: | 600 V |
| UL Rated current: | 100 A |
| Clamping range (min): | 4 mm² |
| Clamping range (max): | 35 mm² |
| Wire connection cross section AWG (min): | AWG 10 |
| Wire connection cross section AWG (max): | AWG 3 |
| Storage temperature (min): | -40 °C |
| Storage temperature (max): | 70 °C |
| Operating temperature (min): | -50 °C |
| Operating temperature (max): | 120 °C |
