Description:

Introducing the OMNIMATE Power series feed-through terminal, expertly engineered with a rated cross-section of 10 mm² Made from Wemid (PA) material, this terminal offers both screw and solder connection options, featuring a conductor outlet direction of 180° It is compliant with IEC standards, handling a maximum voltage of 500 V and a current of 57 A, alongside UL certifications for 300 V and 65 A A reliable choice for your connectivity needs!.

Features and Benefits:

•Environmental compliance with RoHS.

•Touch-safe protection according to DIN VDE 0470.

•Operating temperature range from -50 °C to 120 °C.

•No SVHC substances above 0.1% by weight.

•Fitted by the customer for increased versatility.

Specifications:

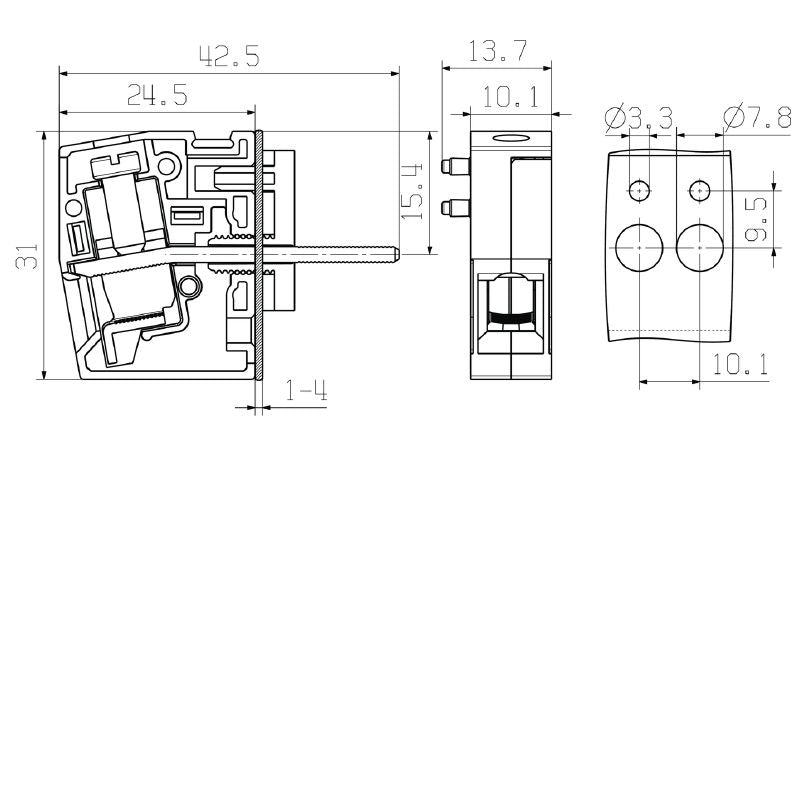

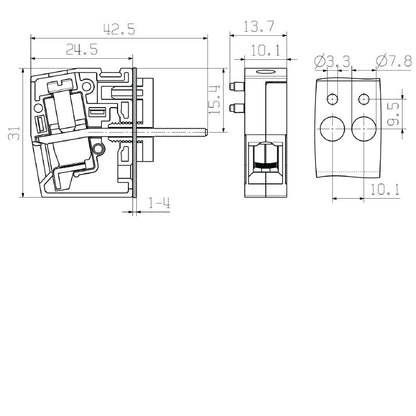

Height	31 mm
Width	13.7 mm
Length	13.7 mm
Rated Voltage (IEC)	500 V

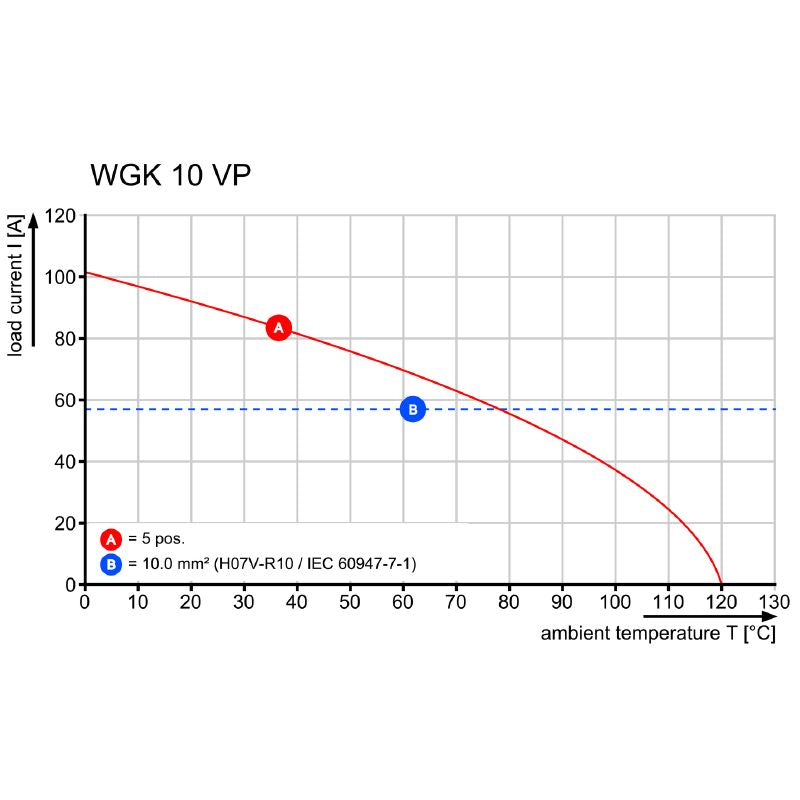

Rated Current (IEC)	57 A
Rated Voltage (UL)	300 V
Rated Current (UL)	65 A
Number of Poles	1
Clamping Range (min)	0.5 mm²
Clamping Range (max)	16 mm²
Stripping Length	11 mm
Insulating Material	Wemid (PA)
Protection Degree	IP20
UL Flammability Rating	V-0
Screwdriver Blade Size	0.8 x 4.0
Tightening Torque (min)	1.2 Nm
Tightening Torque (max)	2.4 Nm
