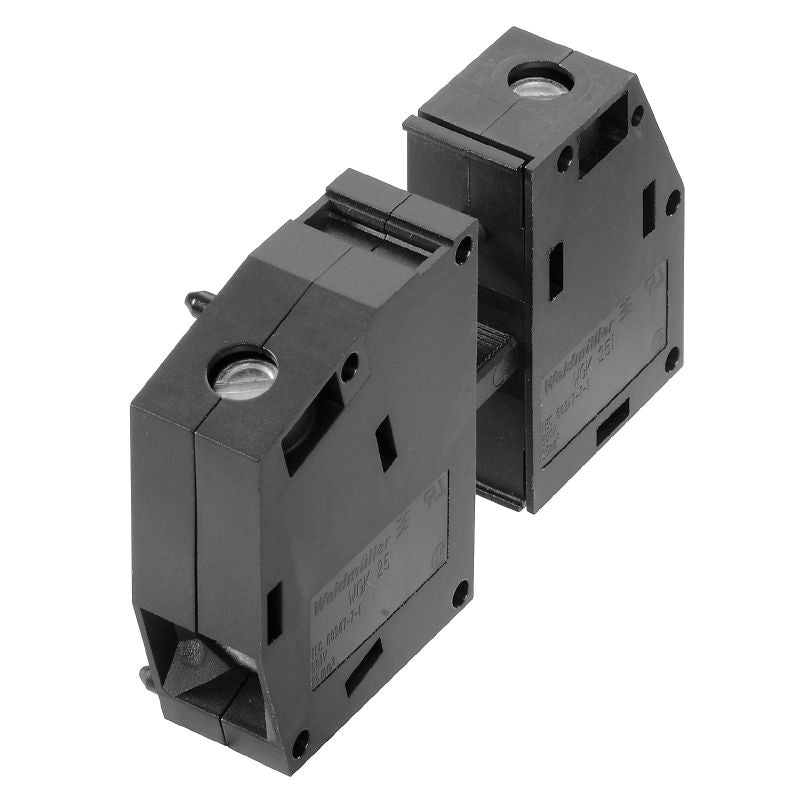

2444300000 - 25 mm² Feed-Through Terminal, Wemid, UL Certified (Pack of 50)

2444300000 - 25 mm² Feed-Through Terminal, Wemid, UL Certified (Pack of 50)

SKU: 2444300000   Download PDF

Select a Variant:
  • 2444300000 - 25 mm² Feed-Through Terminal, Wemid, UL Certified (Pack of 50)
Qty:
Now $538.85   Web pricing policy
BEFORE   $0.00 Now $538.85 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the WGK series, your go-to solution for efficient wiring applications This feed-through terminal features a rated cross-section of 25 mm² and is constructed from durable Wemid (PA) material, enabling straightforward direct mounting Fully compliant with RoHS standards, this terminal is equipped to handle various voltage requirements Additionally, it holds a UL certification (number E60693), ensuring its dependability for all your electrical needs.

Features and Benefits:

    •Screw connection for easy wiring.

    •Includes a clamping yoke for secure attachment.

    •Touch-safe design according to DIN VDE 0470.

    •Designed for both solid and stranded conductors.

    •Compliant with strict RoHS regulations.

Specifications:

 Rated voltage (IEC) 690 V
 Rated current (IEC) 101 A
 Wire connection method Screw connection
 Number of poles 1
 Height 48.5 mm
 Width 20.2 mm
 Length 19.66 mm
 Net weight 64 g
 Insulating material Wemid (PA)
 Protection degree IP20
 Temperature range (operation) -50 °C to 120 °C
 Clamping range 4 mm² to 35 mm²
 UL voltage rating 600 V
 Pin series quantity 1
