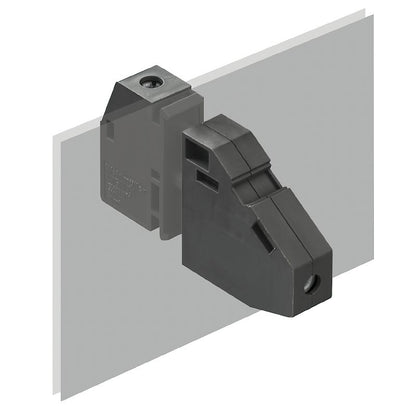

2439540000 - 10mm² Feed-Through Terminal with 90° Conductor Outlet (Pack of 50)

SKU: SKU: 2439540000 Download PDF

Select a Variant:

2439540000 - 10mm² Feed-Through Terminal with 90° Conductor Outlet (Pack of 50)

SET THE QTY:

Now $342.18 Web pricing policy

~~BEFORE $0.00~~ Now $342.18 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the WGKV 10/Z GN/YE BX, a robust component from the OMNIMATE Power series, specifically engineered as a feed-through terminal for direct mounting This unit accommodates a rated cross-section of 10 mm² and is constructed from durable Wemid (PA) It ensures reliable wire connections through a secure screw mechanism, with conductor outlets positioned at 90° and 270° Versatile in compatibility, it supports a range of wire cross-sections from 0.

5 mm² to 16 mm², making it an essential choice for your electrical connections.

Features and Benefits:

•Compliant with RoHS standards without exemptions.

•IP 20 safety level ensuring touch protection.

•Temperature range for operation is from -50 °C to 120 °C.

•Minimum and maximum tightening torque is 1.2 Nm and 2.4 Nm respectively.

•Available in a box packaging for easy handling.

Specifications:

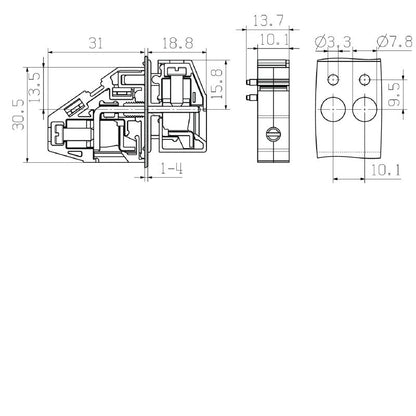

Height	30.5 mm
Width	13.7 mm
Length	13.7 mm
Net weight	20.06 g

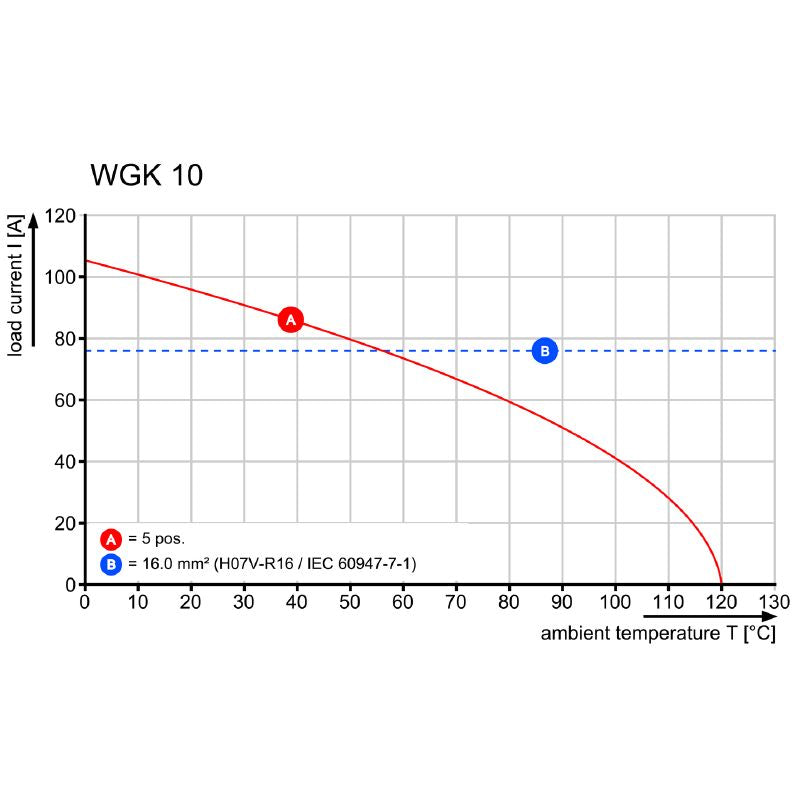

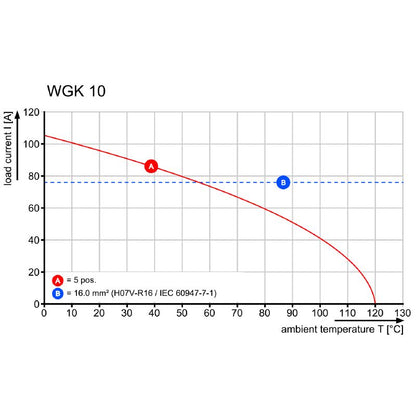

Rated current IEC	57 A
Rated voltage IEC	500 V
Rated current UL	65 A
Rated voltage UL	300 V
Insulating material	Wemid (PA)
Clamping range (min)	0.5 mm²
Clamping range (max)	16 mm²
Wire connection cross section AWG (min)	AWG 24
Wire connection cross section AWG (max)	AWG 6
Flammability rating	V-0
