Product Information

Description:

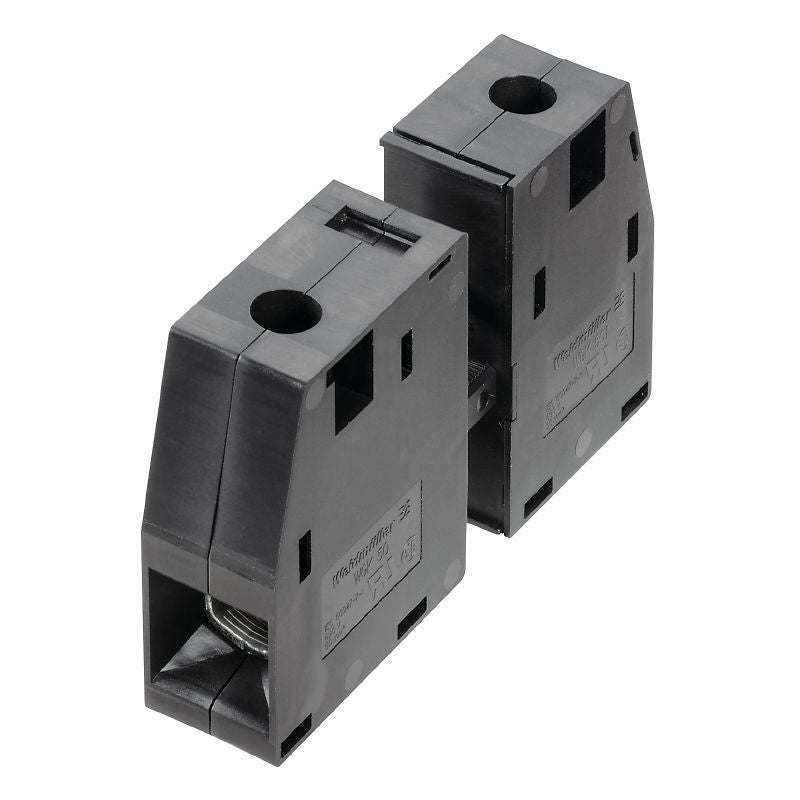

Introducing the WGK 50/Z BK IK 2EK SO BX feed-through terminal, an essential component from the OMNIMATE Power range Engineered from high-quality Wemid material, this terminal boasts a rated cross-section of 50 mm² It meets RoHS standards and is IEC certified for voltages up to 690 V and currents up to 150 A, as well as being UL approved for 600 V and 150 A applications Designed for straightforward installation, it features screw connections and offers user-friendly fitting options, making your electrical setups seamless and efficient.

Features and Benefits:

•RoHS compliant without exemption.

•Suitable for wire connections from 10 mm² to 50 mm².

•Screw connection for ease of use.

•Touch-safe protection according to DIN VDE 0470.

Specifications:

Rated cross-section:	50 mm²
Rated voltage (IEC):	690 V
Rated current (IEC):	150 A
Wire connection method:	Screw connection
Conductor outlet direction:	180°
Tightening torque, min:	4 Nm
Tightening torque, max:	8 Nm
Touch-safe protection:	IP 20
Storage temperature, min:	-40 °C
Storage temperature, max:	70 °C
Operating temperature, min:	-50 °C
Operating temperature, max:	120 °C
Insulating material:	Wemid (PA)
Contact material:	Cu-alloy
Contact surface:	tinned
