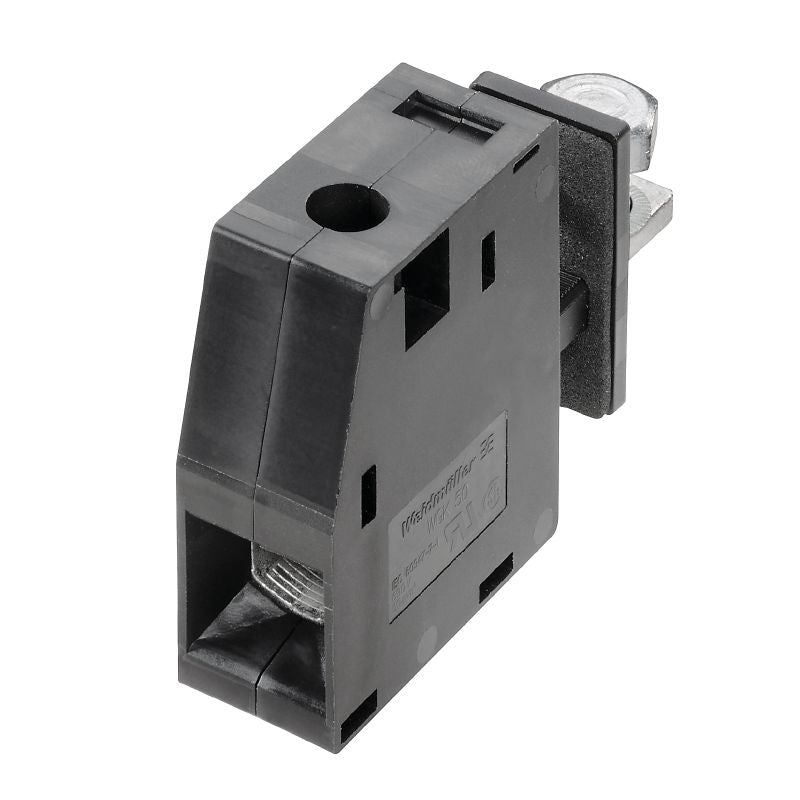

2428370000 - OMNIMATE 50mm² Feed-Through Terminal, RoHS & UL Approved (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the WGK 50 VP GN/YE TXSC BX, a reliable feed-through terminal from the OMNIMATE Power series, ideal for direct mounting applications With a rated cross-section capacity of 50 mm², it adheres to stringent safety standards, boasting RoHS compliance alongside multiple UL certifications (certificate number E60693) Trust in its quality and performance for your electrical connections.

Features and Benefits:

•Compatible with cable lug: ring cable and spade lug.

•Provides a conductor outlet direction of 180°.

•Has a single pole configuration.

•Dimensions allow for a height of 54 mm, width of 22.8 mm, and length of 18.8 mm.

•Permits a clamping range for conductors between 10 mm² and 50 mm².

•Enclosed under protection degree IP20.

•Manufactured from Wemid (PA) insulating material.

•Tightening torque range is from 4 Nm to 5.5 Nm.

Specifications:
