2445160000 - 25mm² Feed-Through Terminal for Efficient Connections (Pack of 50)

2445160000 - 25mm² Feed-Through Terminal for Efficient Connections (Pack of 50)

SKU: 2445160000   Download PDF

Select a Variant:
  • 2445160000 - 25mm² Feed-Through Terminal for Efficient Connections (Pack of 50)
Qty:
Now $407.39   Web pricing policy
BEFORE   $0.00 Now $407.39 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

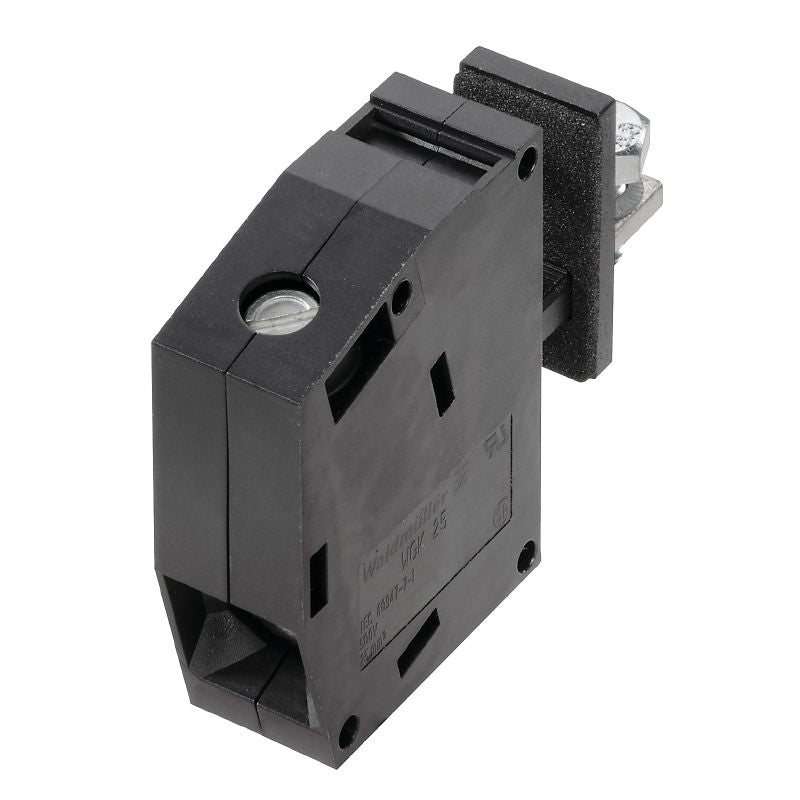

Introducing the OMNIMATE Power series WGK feed-through terminal, designed for direct mounting with an impressive rated cross-section of 25 mm² This robust terminal meets stringent IEC standards, capable of handling voltages up to 690 V and currents up to 101 A, while also complying with UL specifications of 600 V and 100 A Crafted from durable Wemid (PA) insulating material, this product is expertly engineered to facilitate efficient wire connections, accommodating both ring cable and spade lug methods for versatile installation options.

Features and Benefits:

    •RoHS compliant without exemption.

    •IP 20 touch-safe protection.

    •Minimum tightening torque of 4 Nm.

    •Material is Cu-alloy with a tinned contact surface.

    •Operating temperature range from -50 °C to 120 °C.

Specifications:

 Rated Voltage (IEC) 690 V
 Rated Current (IEC) 101 A
 Rated Voltage (UL) 600 V
 Rated Current (UL) 100 A
 Height 48.5 mm
 Width 19.7 mm
 Length 19.66 mm
 Storage Temperature -40 °C to 70 °C
 Number of Poles 1
 Screwdriver Blade Size 1.2 x 6.5
 Clamping Screw M 6
 Stripping Length 18 mm
 Wire Connection Minimum Size (AWG) AWG 10
 Wire Connection Maximum Size (AWG) AWG 3
