2439580000 - 10 mm² Feed-Through Terminal with Screw Connection (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

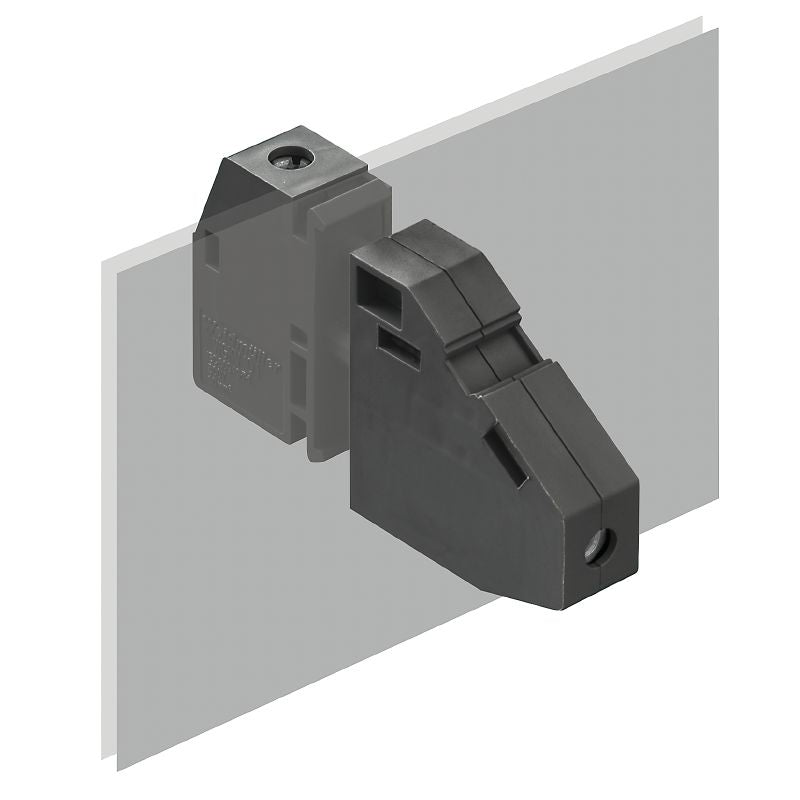

Introducing the WGKV 10/Z BK BX feed-through terminal, expertly crafted for direct mounting and constructed from high-quality Wemid (PA) With a rated cross-section of 10 mm², this versatile terminal meets various electrical needs while conforming to both RoHS and UL guidelines It features a reliable screw connection, complete with a clamping yoke, to ensure secure wire attachments The terminal functions efficiently with a voltage rating of 500 V per IEC standards and handles up to 57 A of current, while also complying with UL's specifications at 300 V and a maximum current of 65 A.

Designed thoughtfully for environmental compliance, this terminal is safe for diverse operating conditions.

Features and Benefits:

•Screw connection for reliable wiring.

•Direct mounting capability.

•Made of high-quality Wemid (PA).

•Compatible with multiple wire gauges from 0.5 mm² to 16 mm².

•IP20 touch-safe protection.

•Suitable for both solid and stranded conductors.

Specifications:
