Description:

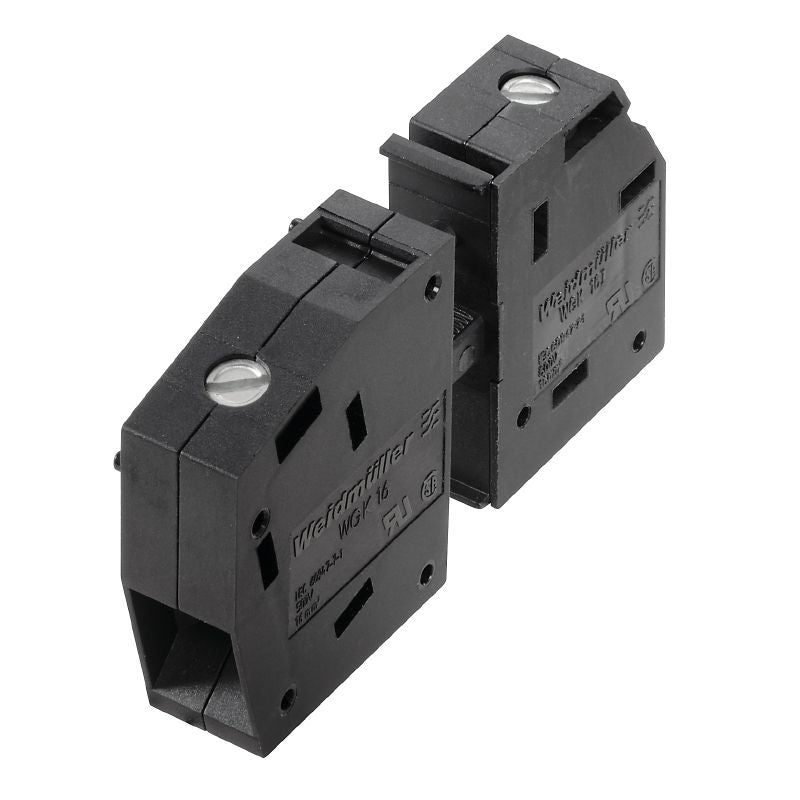

Experience reliable connectivity with the WGK 16 BK BX feed-through terminal, engineered for direct mounting This terminal supports a rated cross-section of 16 mm² and meets IEC standards for a voltage of 500 V and a current capacity of 76 A, compatible with wire sizes ranging from 05 mm² to 25 mm² For UL compliance, it boasts a voltage rating of 600 V and can handle up to 85 A Made from durable Wemid (PA) material, this terminal is built to ensure long-lasting performance and dependability.
Features and Benefits:
•Compatible with various wire connection methods including screw connection.
•Touch-safe design according to DIN VDE 0470.
•IP20 protection degree.
•Insulating material is Wemid (PA).
•Compact dimensions facilitate integration into devices.
Specifications:
| Rated voltage (IEC) | 500 V |

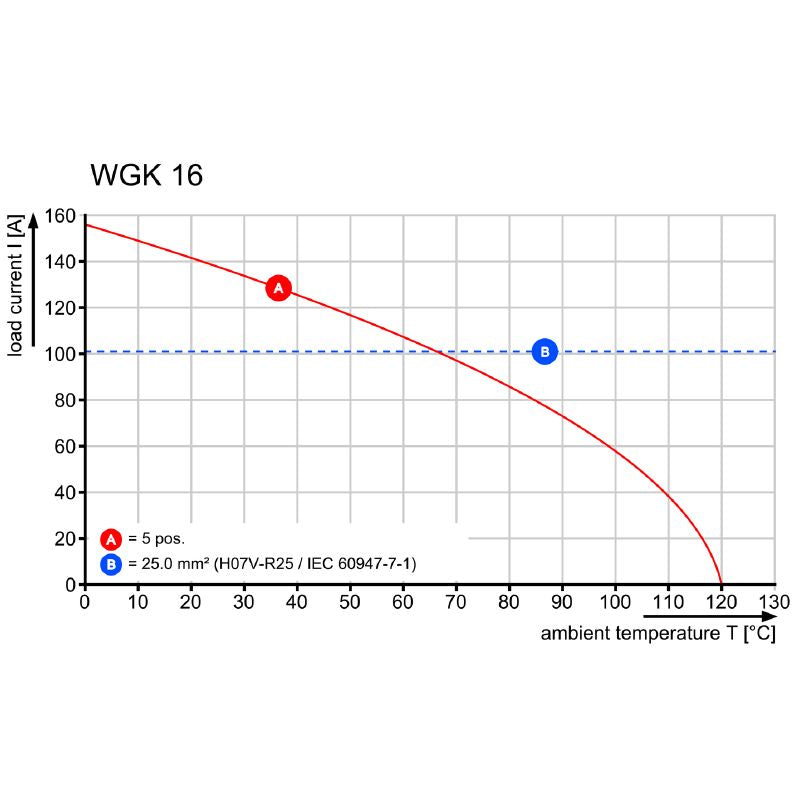

| Rated current (IEC) | 76 A |
| Rated voltage (UL) | 600 V |
| Rated current (UL) | 85 A |
| Clamping range (min) | 0.5 mm² |
| Clamping range (max) | 25 mm² |
| Operating temperature (min) | -50 °C |
| Operating temperature (max) | 120 °C |
| Storage temperature (min) | -40 °C |
| Storage temperature (max) | 70 °C |
| Number of poles | 1 |
| Tightening torque (min) | 2 Nm |
| Tightening torque (max) | 2.3 Nm |

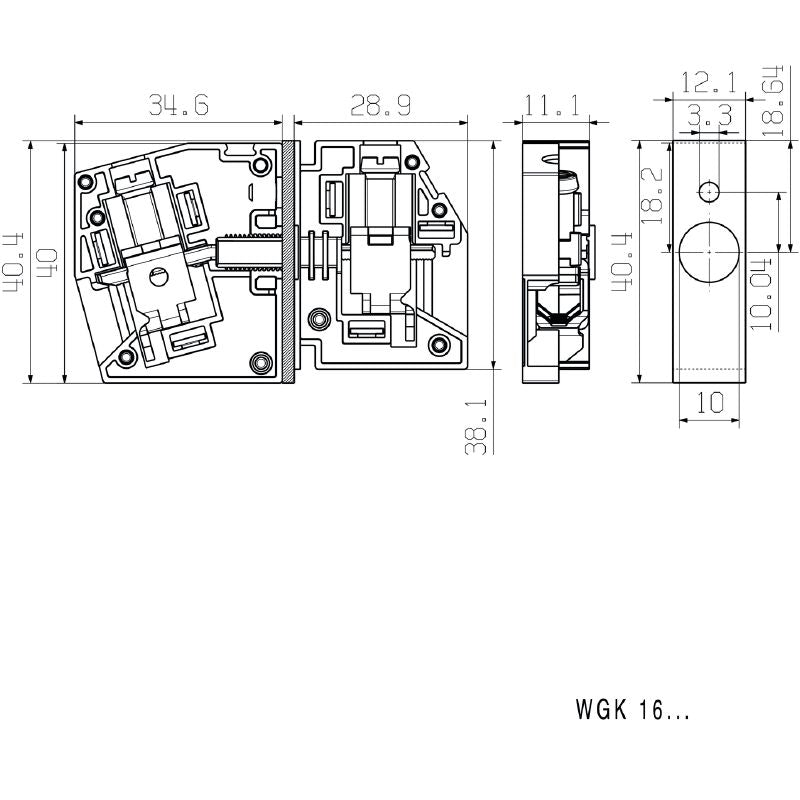

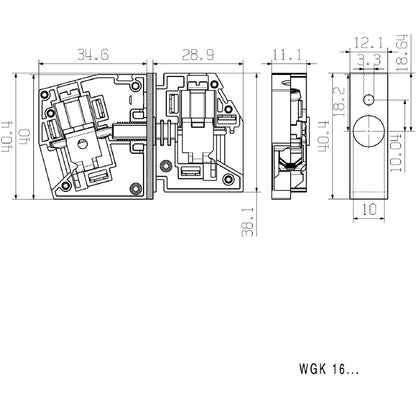

| Height | 40.4 mm |
| Width | 12 mm |
| Length | 12 mm |
| Net weight | 33.24 g |
