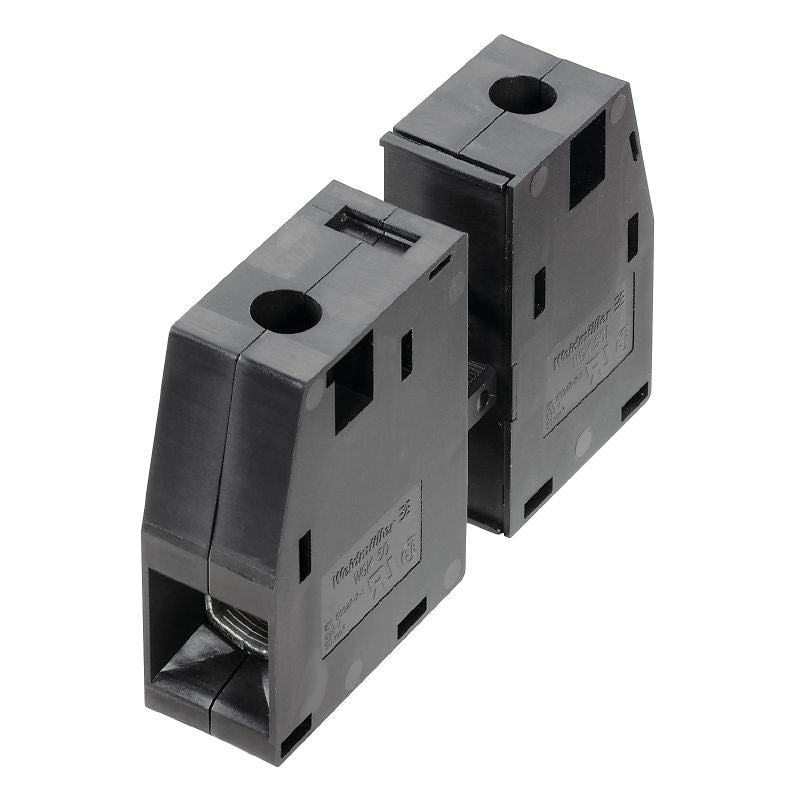

2427710000 - 50 mm² Feed-Through Terminal in Wemid Material (Pack of 50)
2427710000 - 50 mm² Feed-Through Terminal in Wemid Material (Pack of 50)
SKU: SKU: 2427710000 Download PDF
- 2427710000 - 50 mm² Feed-Through Terminal in Wemid Material (Pack of 50)
- 2427710000 - 50 mm² Feed-Through Terminal in Wemid Material (Pack of 50)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a reliable component from the OMNIMATE Power series: this feed-through terminal boasts a rated cross-section of 50 mm² Crafted from durable Wemid (PA) material, it includes features such as direct mounting and a convenient bushing for feed-through applications This terminal adheres to RoHS standards and is certified by UL with certificate number E60693, ensuring safety and compliance in your projects.
Features and Benefits:
•Screw connection wire connection method.
•180° conductor outlet direction.
•Single pole configuration.
•Fitted by the customer.
•Optimal tightening torque range from 4 Nm to 5.5 Nm.
•IP 20 touch-safe protection.
•Clamping yoke type connection.
Specifications:
| Height | 55 mm |
| Width | 22.8 mm |
| Length | 22.8 mm |
| Net weight | 104 g |
| Rated voltage (IEC) | 690 V / 150 A / 16 - 50 mm² |
| Rated current (UL) | 600 V / 150 A / AWG 6 - AWG 1/0 |
| Insulating material | Wemid (PA) |
| Contact material | Cu-alloy |
| Contact surface | tinned |
| Storage temperature, min | -40 °C |
| Storage temperature, max | 70 °C |
| Operating temperature, min | -50 °C |
| Operating temperature, max | 120 °C |
| Temperature range, installation, min | -25 °C |
| Temperature range, installation, max | 120 °C |
| Clamping range, min | 10 mm² |
| Clamping range, max | 50 mm² |
| Wire connection cross section AWG, min | AWG 6 |
| Wire connection cross section AWG, max | AWG 1/0 |
| UL 94 flammability rating | V-0 |
| Tightening torque, min | 4 Nm |
| Tightening torque, max | 5.5 Nm |
