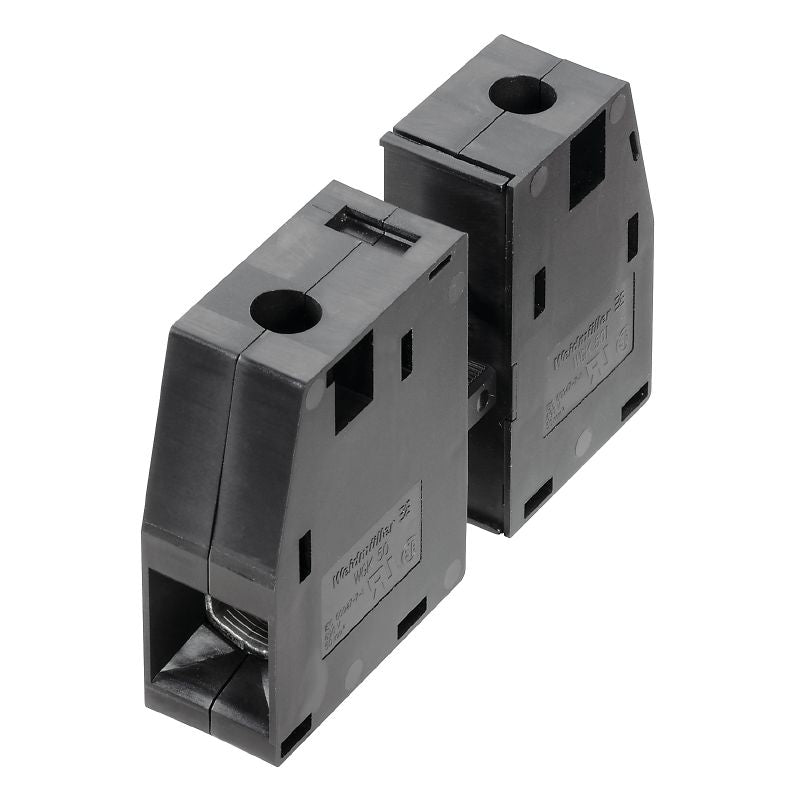

2427770000 - 50mm² Feed-Through Terminal, 150A Rated for Direct Mounting (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the OMNIMATE Power - series WGK feed-through terminal, engineered for direct mounting with a rated cross-section of 50 mm² This device meets RoHS compliance standards and is sold in box packaging Capable of handling an IEC rated voltage of 690 V and a maximum current of 150 A, it accommodates wire sizes ranging from 16 to 50 mm² Moreover, it adheres to UL standards supporting voltages up to 600 V while maintaining the same current capacity.

Features and Benefits:

•Screw connection for wire joining.

•Clamping yoke connection types.

•Touch-safe protection according to DIN VDE standards.

•Compact and efficient design for electrical installations.

Specifications:
