2427810000 - 50 mm² Feed-Through Terminal, RoHS Compliant, Direct Mounting (Pack of 10)
2427810000 - 50 mm² Feed-Through Terminal, RoHS Compliant, Direct Mounting (Pack of 10)
SKU: SKU: 2427810000 Download PDF
- 2427810000 - 50 mm² Feed-Through Terminal, RoHS Compliant, Direct Mounting (Pack of 10)
- 2427810000 - 50 mm² Feed-Through Terminal, RoHS Compliant, Direct Mounting (Pack of 10)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

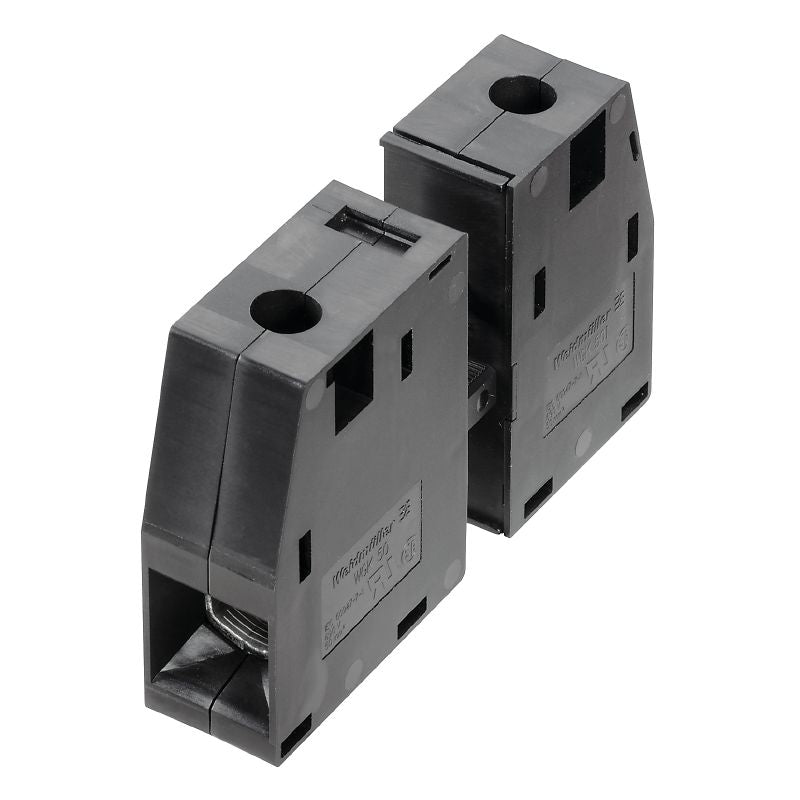

Introducing the WGK 50/Z GN/YE BX feed-through terminal, a versatile component for various electrical applications This terminal has a cross-sectional capacity of 50 mm² and is constructed from durable Wemid (PA) material It supports direct mounting and efficient feed-through operations, ensuring ease of installation Compliant with RoHS regulations, this product also features a UL file number E60693, affirming its safety and reliability for your projects.
Features and Benefits:
•General ordering number is 2427810000.
•Wire connection is achieved through a screw method.
•It is touch-safe according to DIN VDE 0470.
•Has a tightening torque requirement of 4 to 5.5 Nm.
•Designed with a clamping screw size of M 6.
•Fitted by the customer.
Specifications:
| Version | OMNIMATE Power - series WGK |
| Rated voltage (IEC) | 690 V |

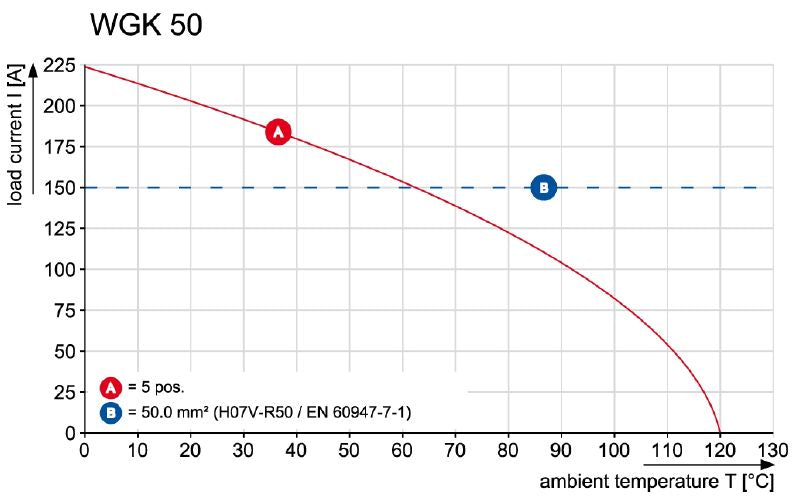

| Rated current | 150 A |
| Wire connection cross-section AWG, min. | AWG 6 |
| Wire connection cross-section AWG, max. | AWG 1/0 |

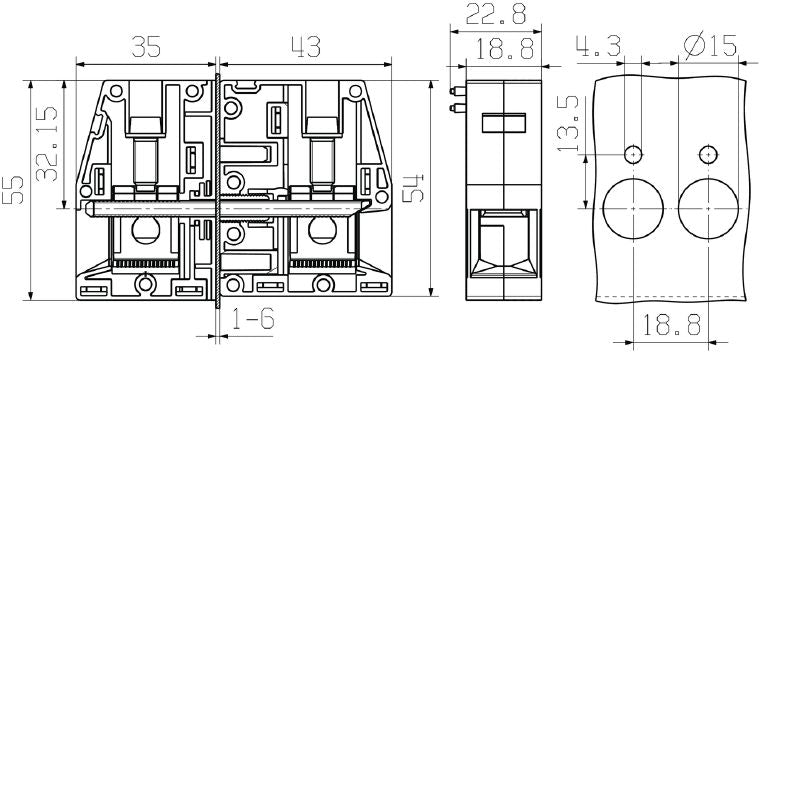

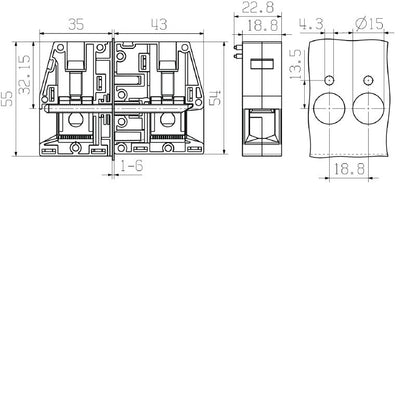

| Height | 55 mm |
| Width | 22.8 mm |
| Length | 22.8 mm |
| Insulating material | Wemid (PA) |
| Colour | Green/yellow |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| Operating temperature, min. | -50 °C |
| Operating temperature, max. | 120 °C |
| Stripping length | 24 mm |
| Protection degree | IP20 |
