2440580000 - OMNIMATE Power Feed-Through Terminal, 16 mm² Rated, Direct Mount (Pack of 50)

SKU: SKU: 2440580000 Download PDF

Variant:

2440580000 - OMNIMATE Power Feed-Through Terminal, 16 mm² Rated, Direct Mount (Pack of 50)

Now $408.90

~~BEFORE $0.00~~ Now $408.90

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

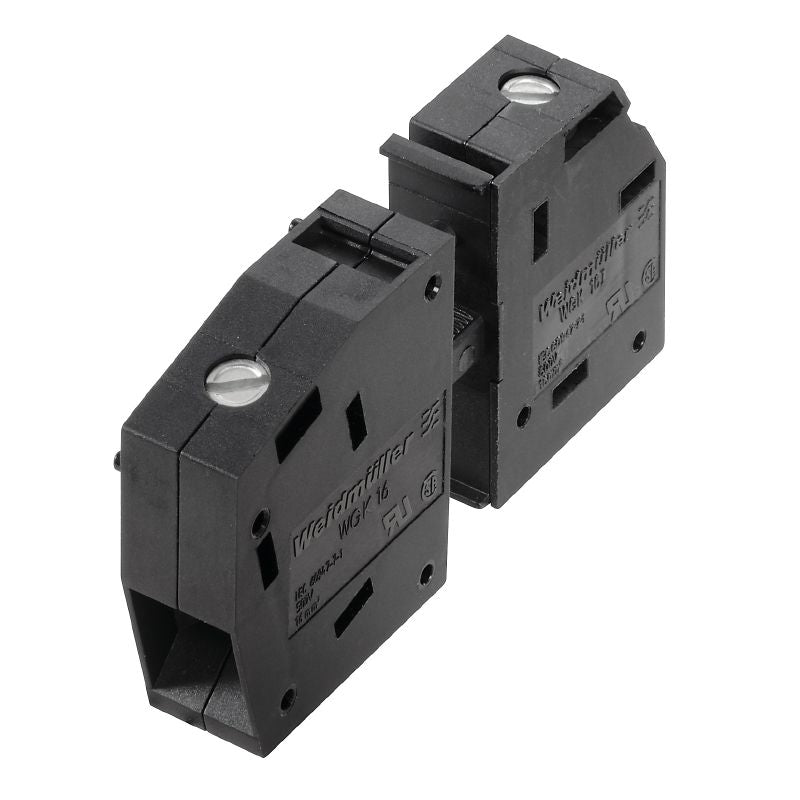

Introducing the WGK 16/Z GY BX, a standout item from the OMNIMATE Power collection This feed-through terminal is engineered with a rated cross-section of 16 mm², allowing for direct mounting applications Complete with a sturdy feed-through bushing, it guarantees a reliable and adaptable connection for your projects.

Features and Benefits:

•Screw connection wire method.

•Single pole configuration.

•IP 20 protection degree.

•Compliant with RoHS and REACH standards.

•Suitable for various conductor types including fine-wired.

Specifications:

Rated Current (IEC)	76 A
Rated Voltage (IEC)	500 V
Rated Current (UL)	85 A
Rated Voltage (UL)	600 V

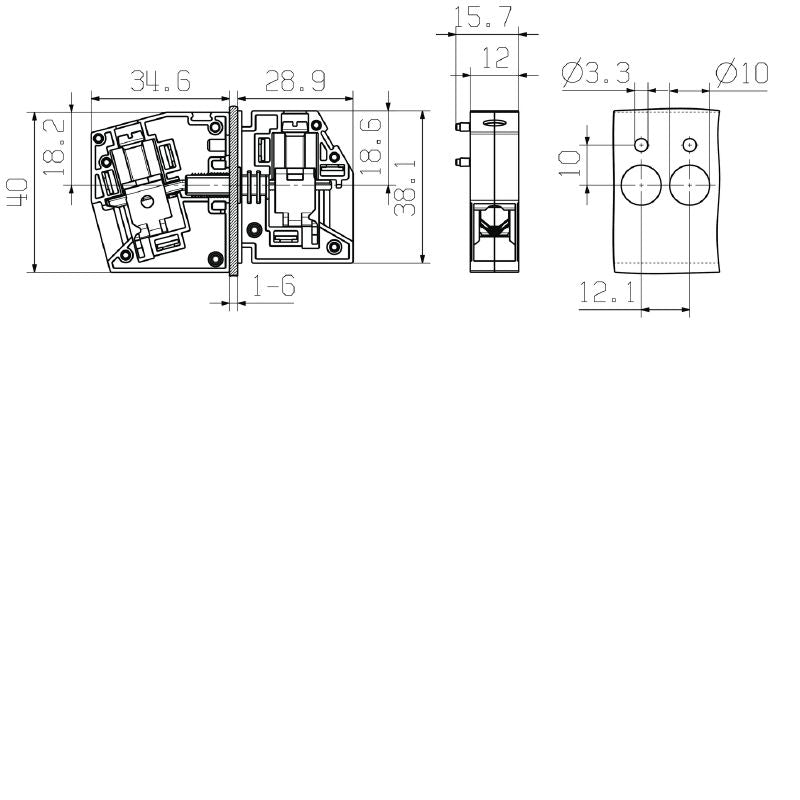

Height	40.4 mm
Width	15.7 mm
Length	15.7 mm
Storage Temperature	-40 to 70 °C
Operating Temperature	-50 to 120 °C
Clamping Range (min)	0.5 mm²
Clamping Range (max)	25 mm²
Wire Connection Cross Section (AWG)	20 to 4
Material	Wemid (PA)
