2440740000 - 16 mm² Feed-Through Terminal, 500V, 76A, RoHS Compliant (Pack of 50)

2440740000 - 16 mm² Feed-Through Terminal, 500V, 76A, RoHS Compliant (Pack of 50)

SKU: 2440740000   Download PDF

Select a Variant:
  • 2440740000 - 16 mm² Feed-Through Terminal, 500V, 76A, RoHS Compliant (Pack of 50)
Qty:
Now $420.73   Web pricing policy
BEFORE   $0.00 Now $420.73 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

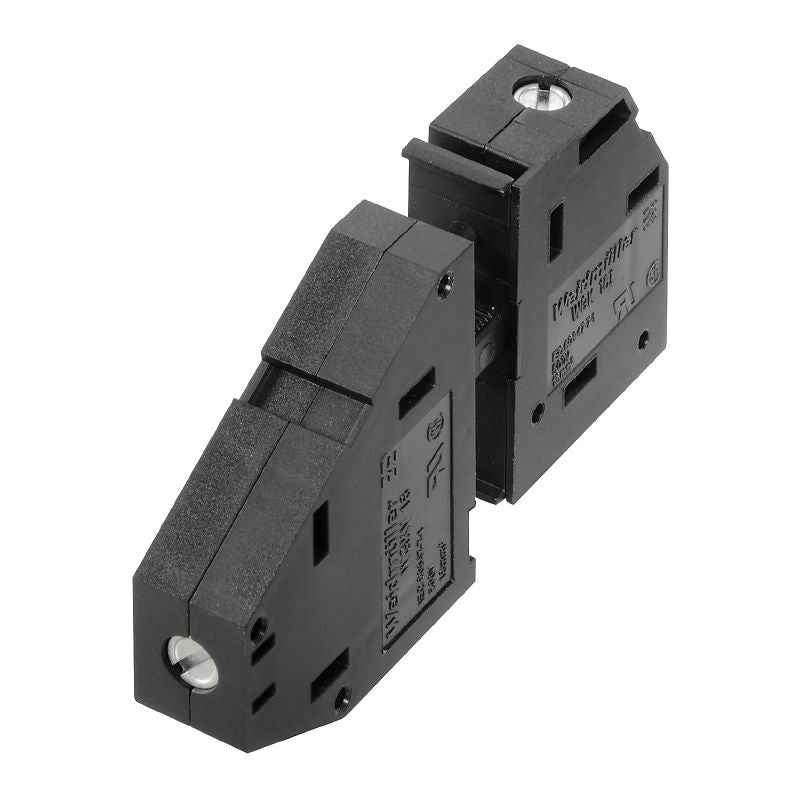

Introducing the WGKV 16 GN/YE BX feed-through terminal, expertly engineered for direct mounting This terminal, rated for a cross-section of 16 mm², is compliant with RoHS regulations and certified with UL file number E60693, ensuring it meets essential safety and performance benchmarks Capable of handling voltages of up to 500 V and currents reaching 76 A, it accommodates wires ranging from 05 to 25 mm².

Each terminal is carefully packaged in a secure box for reliable delivery.

Features and Benefits:

    •Direct mounting capability.

    •Compatible with screw connection method.

    •Touch-safe with a protection degree of IP20.

    •Constructed from durable Wemid (PA).

    •Flexible operating temperature range from -50 °C to 120 °C.

Specifications:

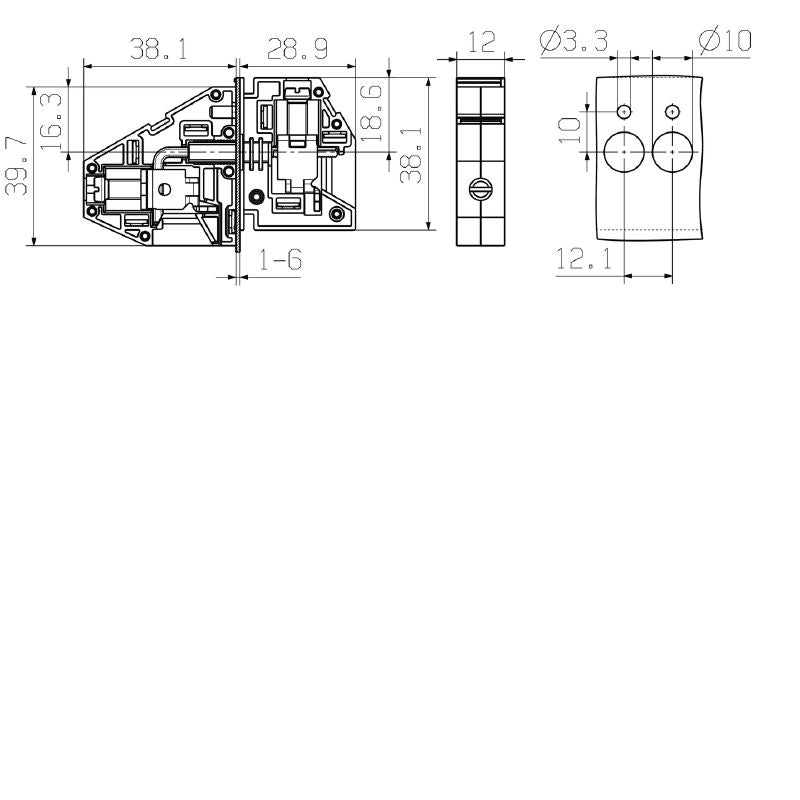

 Height 39.7 mm
 Width 12 mm
 Length 12 mm
 Net weight 33.66 g
 Rated current 76 A
 Rated voltage 500 V
 Wire connection method Screw connection
 Number of poles 1
 Stripping length 16 mm
 Insulating material Wemid (PA)
 UL 94 flammability rating V-0
 Clamping screw M 5
 Protection degree IP20
 Tightening torque 2 to 2.3 Nm
