1936490000 - Grey Feed-Through Terminal, 4 mm², Direct Mounting (Pack of 50)
1936490000 - Grey Feed-Through Terminal, 4 mm², Direct Mounting (Pack of 50)
SKU: SKU: 1936490000 Download PDF
- 1936490000 - Grey Feed-Through Terminal, 4 mm², Direct Mounting (Pack of 50)
- 1936490000 - Grey Feed-Through Terminal, 4 mm², Direct Mounting (Pack of 50)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

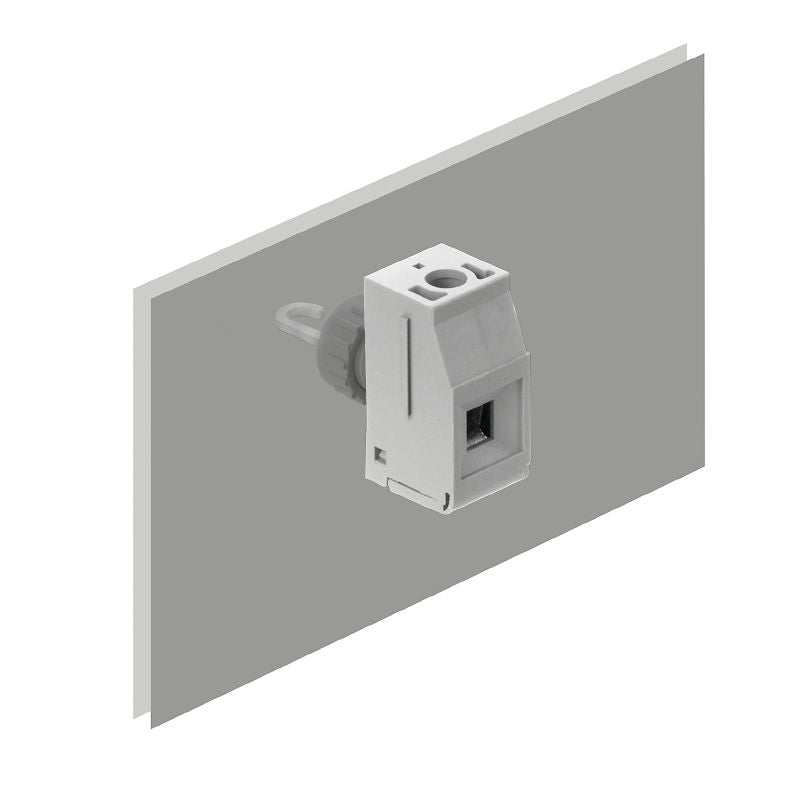

Discover the versatile VWGK 4 GY BX feed-through terminal, specifically engineered for a cross-section of 4 mm² Made from durable Wemid (PA) material in a neutral grey color, this terminal is designed for easy direct mounting It boasts several international certifications, including RoHS compliance, ensuring it meets important standards Compatible with wire sizes ranging from 05 to 6 mm², it is suitable for diverse applications across various environments.
Features and Benefits:
•Approvals: RoHS compliant without exemptions.
•Wire connection method is screw/solder.
•Touch-safe protection according to DIN VDE 0470.
•Material: Insulating material is Wemid (PA).
•Color: Grey.
•UL 94 flammability rating: V-0.
Specifications:
| Rated voltage IEC | 500 V |
| Rated current IEC | 32 A |
| Rated voltage UL | 300 V |
| Rated current UL | 30 A |
| Dimensions (Length) | 10.6 mm |
| Dimensions (Width) | 10 mm |
| Dimensions (Height) | 20.5 mm |
| Number of poles | 1 |
| Tightening torque, min | 0.6 Nm |
| Tightening torque, max | 0.8 Nm |
| Protection degree | IP20 |
| Storage temperature, min | -40 °C |
| Storage temperature, max | 70 °C |
| Operating temperature, min | -50 °C |
| Operating temperature, max | 120 °C |
| Clamping range (min) | 0.5 mm² |
| Clamping range (max) | 6 mm² |
