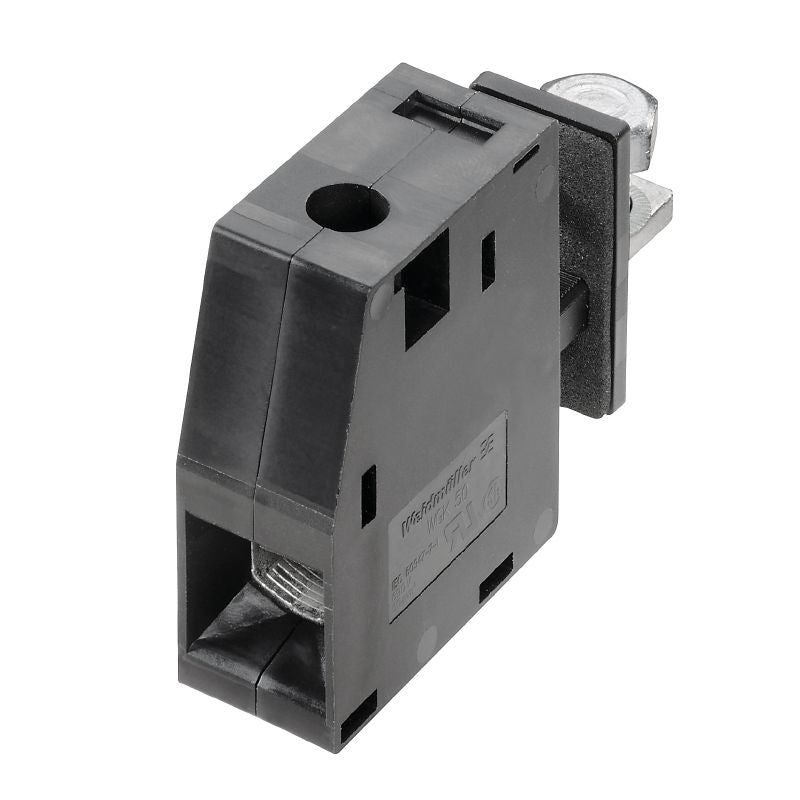

2428470000 - OMNIMATE 50mm² Feed-Through Terminal, 690V & 150A (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the WGK 50 VP IK BK BX, a reliable part of the OMNIMATE Power series This feed-through terminal is engineered for direct mounting and accommodates rated cross-sections of 50 mm² It supports standard voltage ratings up to 690 V and handles currents of 150 A Additionally, this terminal is compatible with wire sizes ranging from AWG 6 to AWG 1/0, making it a versatile choice for your electrical needs.

Features and Benefits:

•Compliant with RoHS without exemptions.

•Insulating material made of Wemid (PA).

•Designed for easy direct mounting.

•Requires no customer fitting.

•Clamping range from 10 mm² to 50 mm².

•Tightening torque ranging from 4 Nm to 5.5 Nm.

Specifications:
