Description:

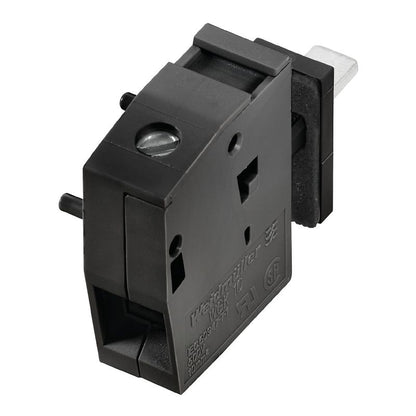

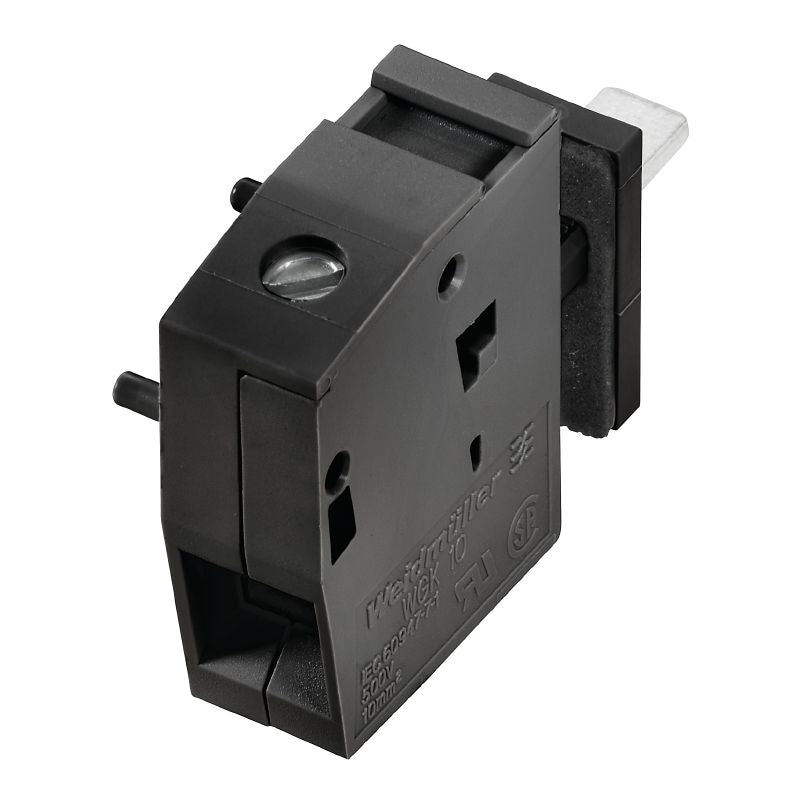

Introducing the WGK 10 VP GY BX feed-through terminal, engineered for reliable electrical connections Constructed from Wemid (PA) material, this terminal boasts a rated cross-section of 10 mm² and upholds RoHS compliance alongside UL certification (E60693) It accommodates a wide range of wire sizes, managing connections from 05 to 16 mm² for IEC standards and AWG 24 to AWG 6 for UL applications Its compact design features dimensions of 31 mm in height, 10.
1 mm in both width and length, and weighs just 13 g, making it an efficient choice for your electrical projects.
Features and Benefits:
•Compliant with RoHS regulations.
•Lightweight at 13 g.
•Screw/solder connection method.
•Compatible with fine-wired conductors.
•Touch-safe protection rating of IP 20.
Specifications:
| Rated voltage (IEC) | 500 V |

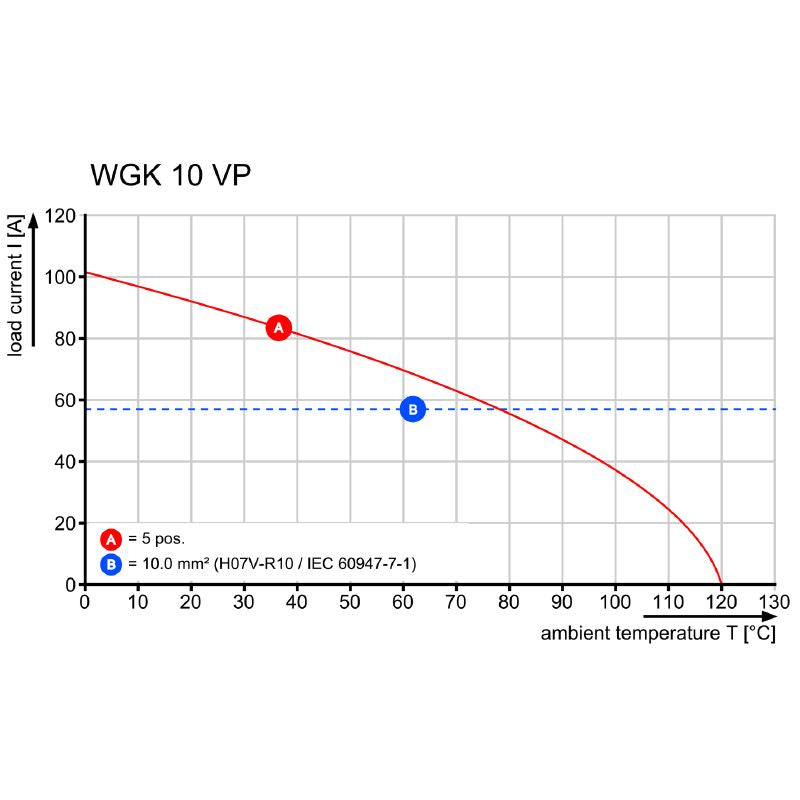

| Rated current (IEC) | 57 A |
| Rated voltage (UL) | 300 V |
| Rated current (UL) | 65 A |

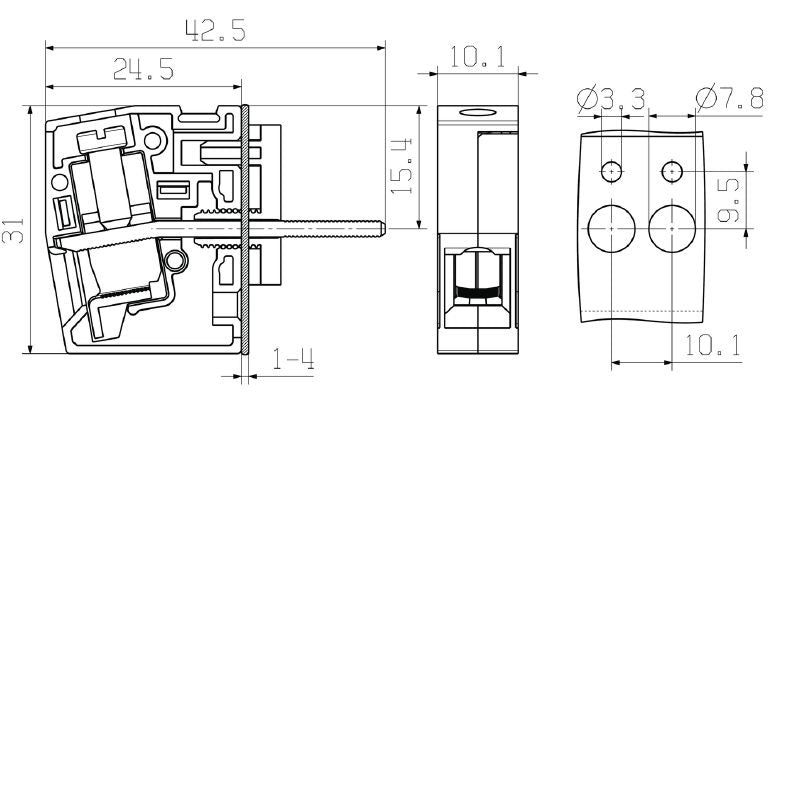

| Height | 31 mm |
| Width | 10.1 mm |
| Length | 10.1 mm |
| Storage temperature, min | -40 °C |
| Storage temperature, max | 70 °C |
| Operating temperature, min | -50 °C |
| Operating temperature, max | 120 °C |
| Tightening torque, min | 1.2 Nm |
| Tightening torque, max | 2.4 Nm |
| Number of poles | 1 |
| Wire connection method | Screw / solder connection |
| Insulating material | Wemid (PA) |
| UL 94 flammability rating | V-0 |
| Clamping range, min | 0.5 mm² |
| Clamping range, max | 16 mm² |
| Touch-safe protection | IP 20 |
