2444710000 - 25mm² Feed-Through Terminal for OMNIMATE Power Series (Pack of 50)

2444710000 - 25mm² Feed-Through Terminal for OMNIMATE Power Series (Pack of 50)

SKU: 2444710000   Download PDF

Select a Variant:
  • 2444710000 - 25mm² Feed-Through Terminal for OMNIMATE Power Series (Pack of 50)
Qty:
Now $430.29   Web pricing policy
BEFORE   $0.00 Now $430.29 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

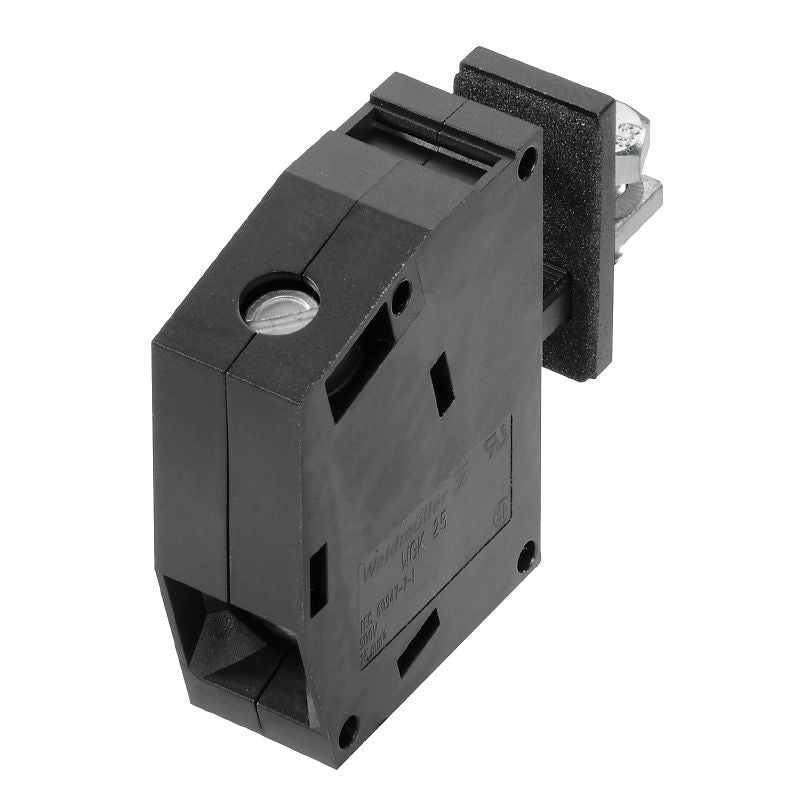

Introducing the WGK 25 VP GY BX, a versatile feed-through terminal engineered for compatibility with the OMNIMATE Power series This terminal features a rated cross-section of 25 mm² and is constructed from durable Wemid (PA) material, making it easy to mount directly It meets UL and IEC standards, ensuring reliability in voltage and current applications.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •Environmental compliance with no SVHC above 0.1 wt%.

    •Screw connection and clamping yoke for type of connection.

    •Rated for a wide range of conductor cross-sections.

    •Operates effectively in temperatures from -50°C to 120°C.

Specifications:

 Rated voltage (IEC) 690 V
 Rated current (IEC) 101 A
 Rated voltage (UL) 600 V
 Rated current (UL) 100 A
 Width 14.6 mm
 Height 48.5 mm
 Length 14.6 mm
 Net weight 47.74 g
 Insulating material Wemid (PA)
 IP protection degree IP20
 Max tightening torque 4.5 Nm
 Min tightening torque 4 Nm
 Clamping range (min) 4 mm²
 Clamping range (max) 35 mm²
 Storage temperature, min. -40°C
 Storage temperature, max. 70°C
 Operating temperature, min. -50°C
 Operating temperature, max. 120°C
