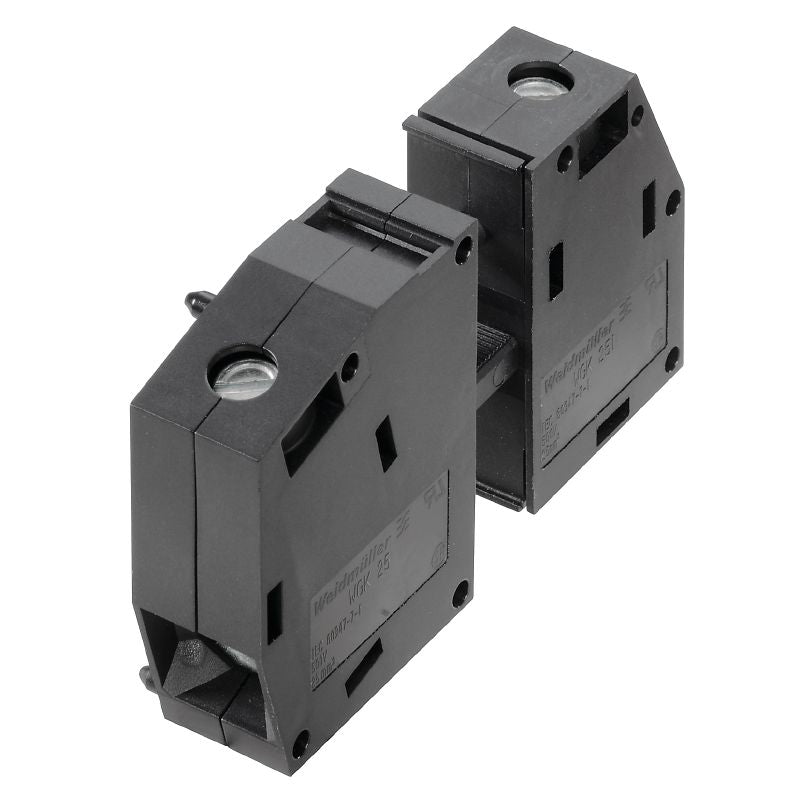

2444660000 - 25mm² Feed-Through Terminal in Wemid for Direct Mounting (Pack of 50)

2444660000 - 25mm² Feed-Through Terminal in Wemid for Direct Mounting (Pack of 50)

SKU: SKU: 2444660000   Download PDF

Select a Variant:
  • 2444660000 - 25mm² Feed-Through Terminal in Wemid for Direct Mounting (Pack of 50)
Qty:
Regular price Now $538.93   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $538.93 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the WGK 25 GY BX, a reliable feed-through terminal from the OMNIMATE Power series, engineered for a cross-section of 25 mm² Crafted from high-quality Wemid (PA) material, this terminal is designed for straightforward direct mounting It meets UL and IEC standards for voltage and current ratings, offering dependable performance and safety for all your electrical connections.

Features and Benefits:

    •Screw connection wire method.

    •Single pole connector design.

    •Touch-safe protection according to DIN VDE 0470.

    •IP20 protection degree.

    •Suitable for wide temperature ranges.

Specifications:

 Approvals ROHS Compliant
 Rated Voltage (IEC) 690 V
 Rated Current (IEC) 101 A
 Rated voltage (UL) 600 V
 Rated current (UL) 100 A

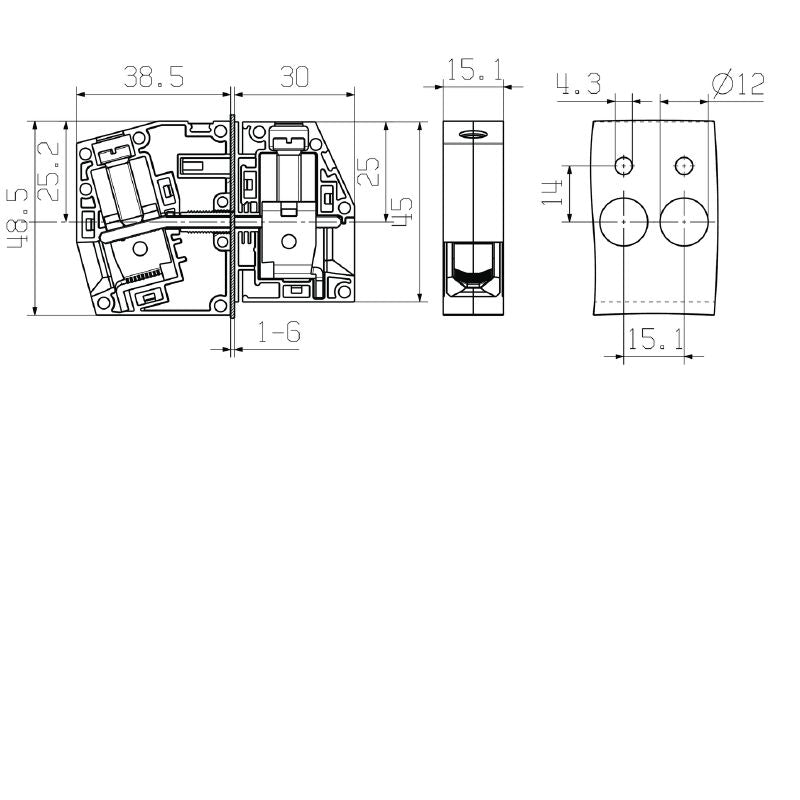

 Height 48.5 mm
 Width 15.1 mm
 Length 14.6 mm
 Storage Temperature (min) -40 °C
 Storage Temperature (max) 70 °C
 Operating Temperature (min) -50 °C
 Operating Temperature (max) 120 °C
 Wire Connection Cross Section (AWG min) 10
 Wire Connection Cross Section (AWG max) 3
 Clamping Range (min) 4 mm²
 Clamping Range (max) 35 mm²
 Insulating Material Wemid (PA)
 Contact Material Cu-alloy
 Contact Surface tinned
