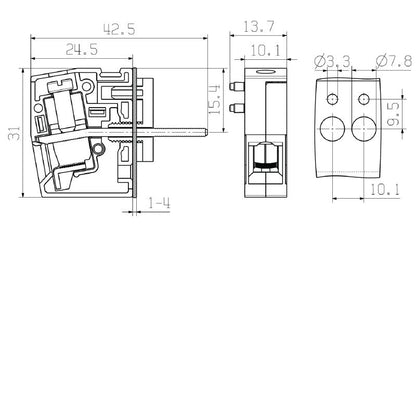

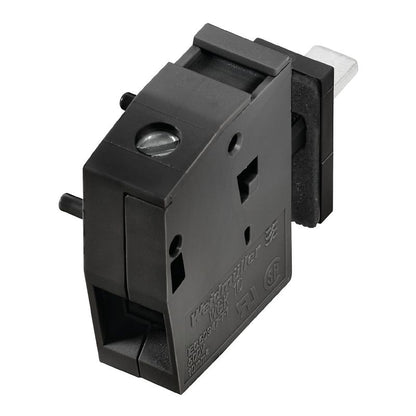

2439420000 - Compact Grey Power Terminal, 10mm² Cross-Section, Reliable Connections (Pack of 50)

Description:

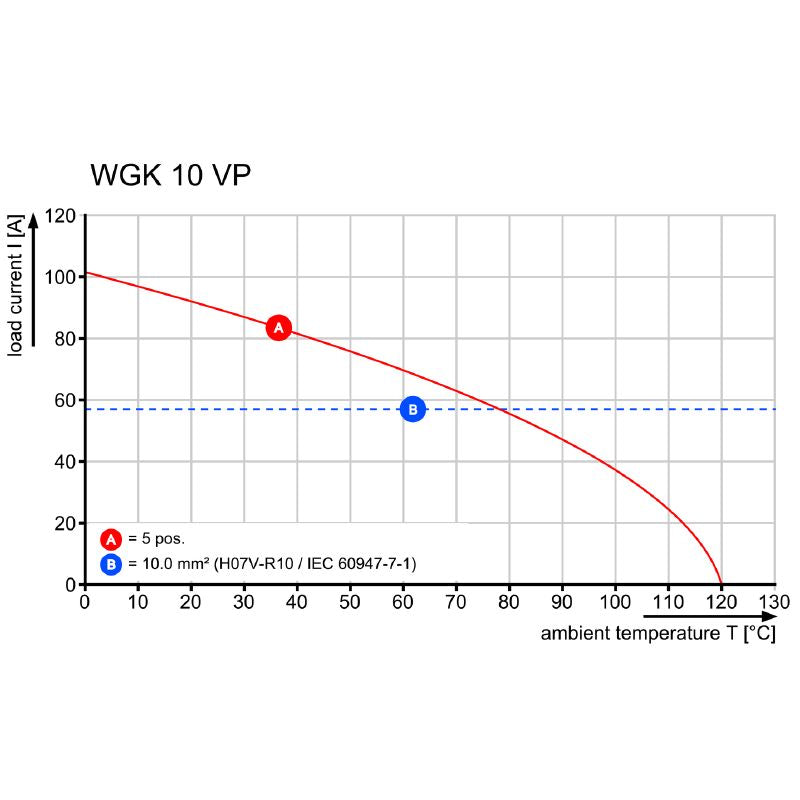

Introducing the WGK 10 VP/Z GY BX, a dependable feed-through terminal from the OMNIMATE Power series This terminal boasts a rated cross-section of 10 mm², engineered to meet IEC and UL standards It efficiently manages voltages up to 500 V with a current capacity of 57 A for IEC standards, and up to 300 V at 65 A for UL standards Featuring a robust screw and solder connection method, this terminal is crafted from durable grey Wemid (PA) material, making it resilient in various environmental situations.

With its compact design, it's perfectly suited for a wide range of applications.

Features and Benefits:

•RoHS compliant without exemption.

•Touch-safe protection.

•Clamping yoke and screw connection types.

•Suitable for a variety of connection methods.

•Customizable stripping lengths.

Specifications:
