2439440000 - 10 mm² Power Terminal with 180° Outlet, RoHS Compliant (Pack of 50)

SKU: SKU: 2439440000 Download PDF

Select a Variant:

2439440000 - 10 mm² Power Terminal with 180° Outlet, RoHS Compliant (Pack of 50)

SET THE QTY:

Now $258.86 Web pricing policy

~~BEFORE $0.00~~ Now $258.86 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

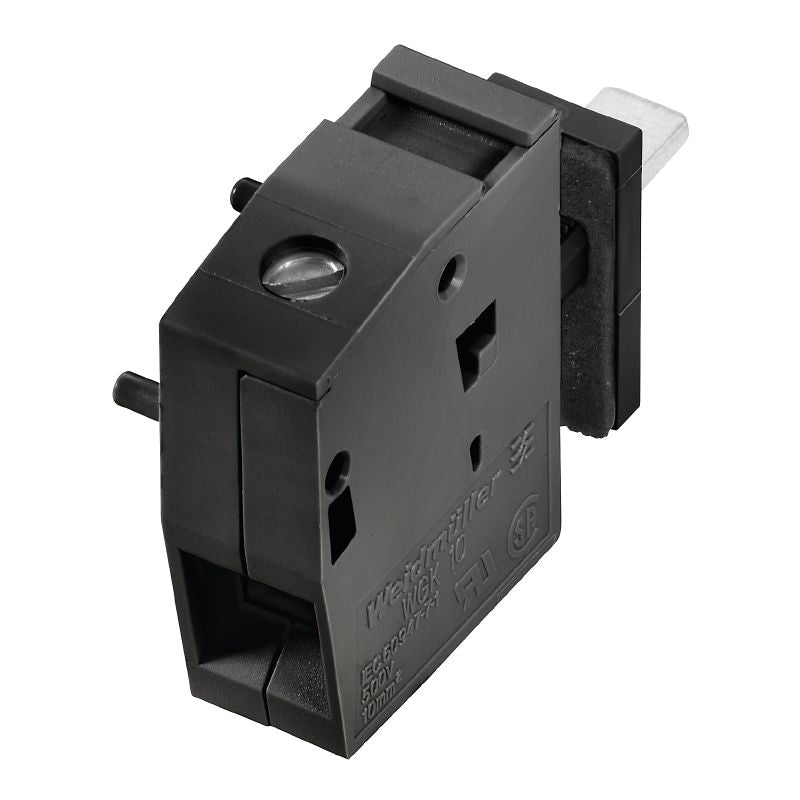

Introducing the WGK 10 VP/Z GN/YE BX feed-through terminal, expertly engineered for seamless power connections This terminal accommodates a conductor cross-section of 10 mm² and is crafted from durable Wemid material It offers a 180-degree outlet direction for versatility in installations and supports both screw and solder connections Adhering to RoHS standards, this terminal also boasts UL certification number E60693, ensuring compliance and reliability for your electrical projects.

Features and Benefits:

•Suitable for a wide range of wire connections including stranded and flexible conductors.

•Touch-safe protection according to DIN VDE 0470.

•Compact design with a height of 31 mm and width of 13.7 mm.

Specifications:

Rated voltage (IEC)	500 V
Rated current (IEC)	57 A
Rated voltage (UL)	300 V
Rated current (UL)	65 A
Temperature range (Operating)	-50 °C to 120 °C
Insulating material	Wemid (PA)
Flammability rating	V-0
Protection degree	IP20
Number of poles	1
Screwdriver blade size	0.8 x 4.0
Tightening torque (min)	1.2 Nm
Tightening torque (max)	2.4 Nm
Clamping range (min)	0.5 mm²
Clamping range (max)	16 mm²

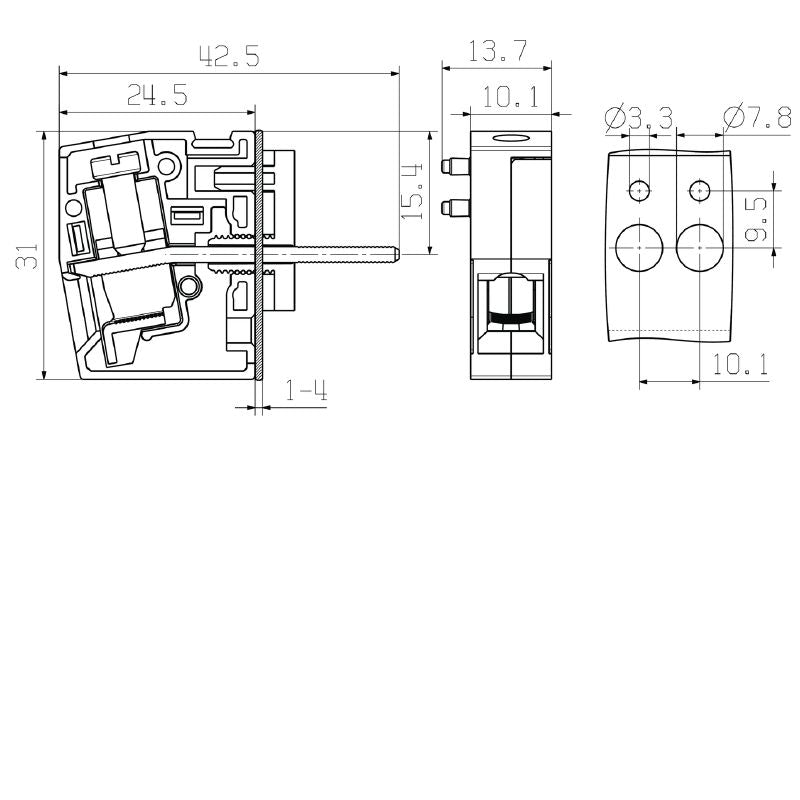

Dimensions (Height)	31 mm
Dimensions (Width)	13.7 mm
Dimensions (Length)	13.7 mm
